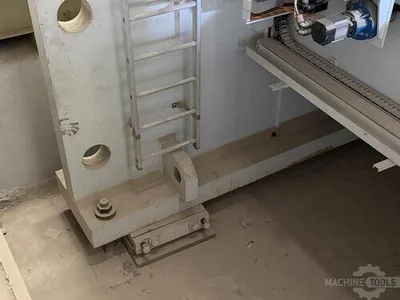

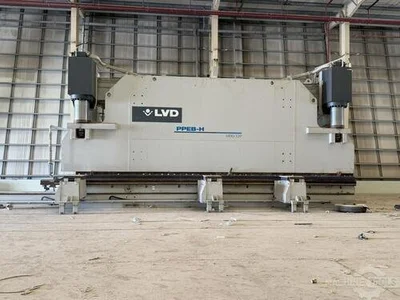

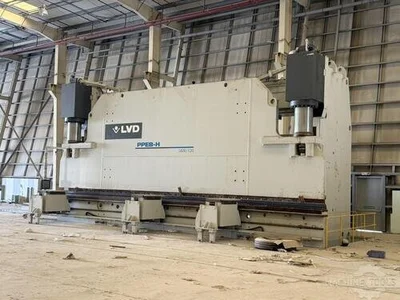

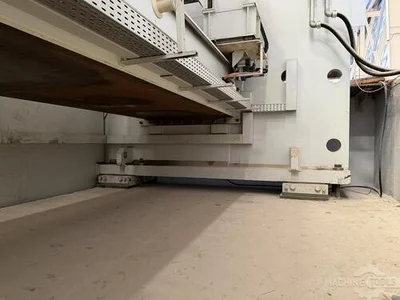

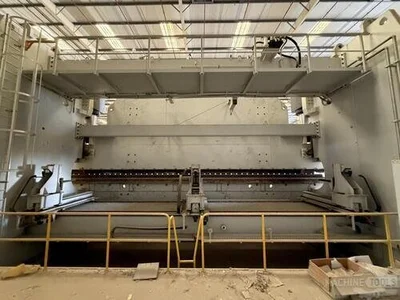

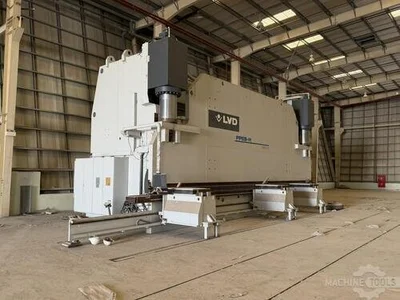

USED 2016 LVD PPEB-H

Only 100 Working (table/guiders/tooling still in prohibitor)
Installed never used in production only testing

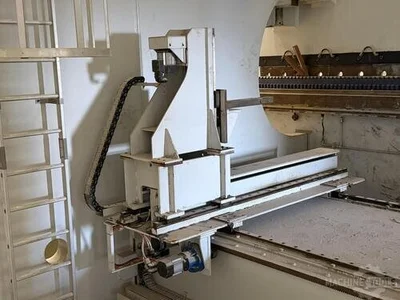

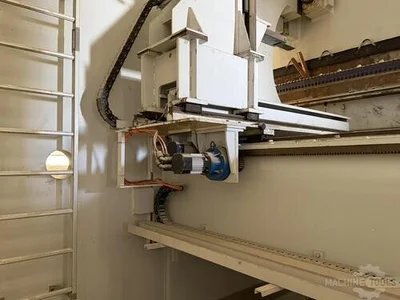

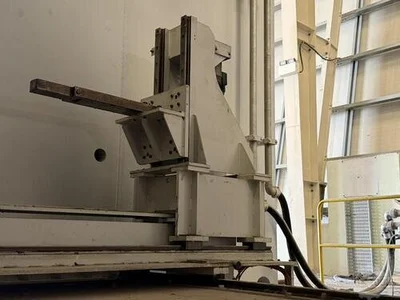

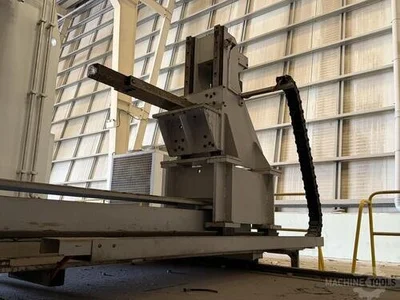

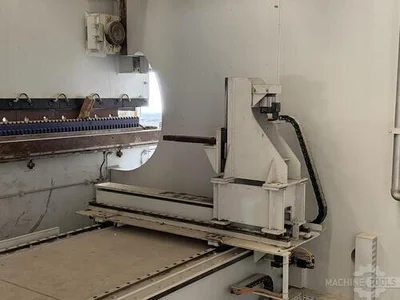

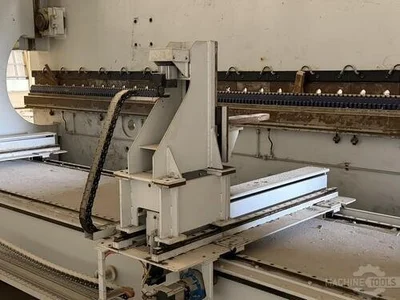

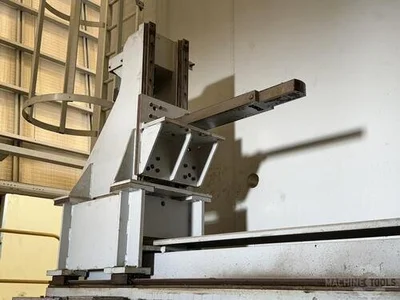

CNC T1 + T2 + T3 Bending help support arm in front

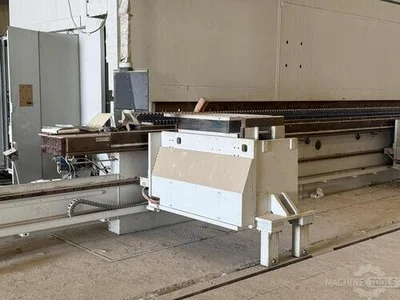

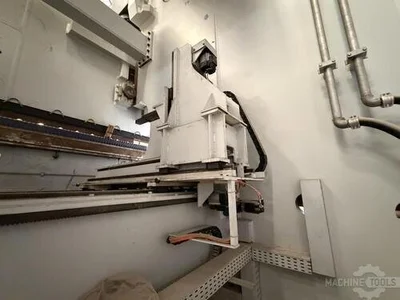

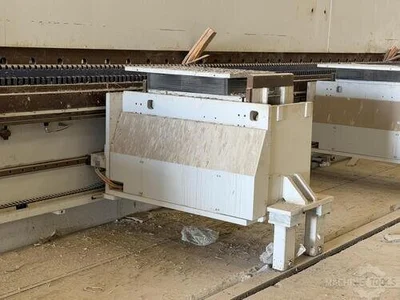

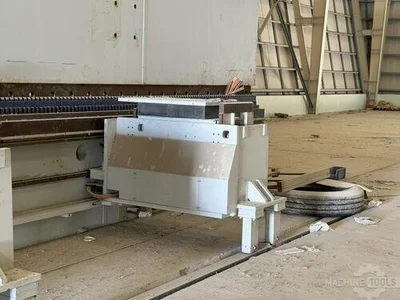

3 x HH 2600 Module backgauge 3 x Z1+R1+Delta1
Lower Tooling set Variable VLA 50-150 mm
Upper Tooling set LVD 505
Adjustment V-Axis 59,3 to 249,3 mm

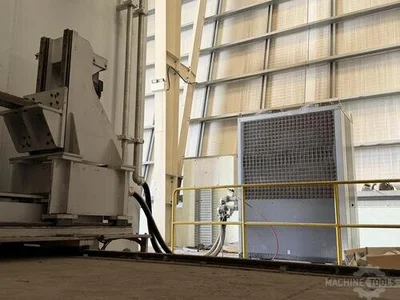

Thermotec Oil chiller GC25T-35 max. 2200 kPa
CADMAN TOUCH with the best software for pressbrakes
Hydraulic top tool clamping
Table width 500 mm
Troath in column 1000 mm

Max. bending length: 12000 mm
Distance between column: 10600 mm
Max. pressing force: 1600 T
Dis. Beam - Table: 1070 mm
Beam stroke: 800 mm
Table Width: 500 mm
Troth beam: 1000 mm
Approch speed: 80 mm/min.
Working speed: 9 mm/min.
Return speed: 90 mm/min.
Adjustment X-Axis back gauge: 600 mm
Number of controlled axis: 15 (Y1/Y2/X/Z1/2/3, R1/2/3, Delta 1/2/3, T1/2/3
Control: CADMAN TOUCH
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 125 kW
Length: 14875 mm
Width: 5430 mm
Height: 7906 mm
Weight: 277500 kg
