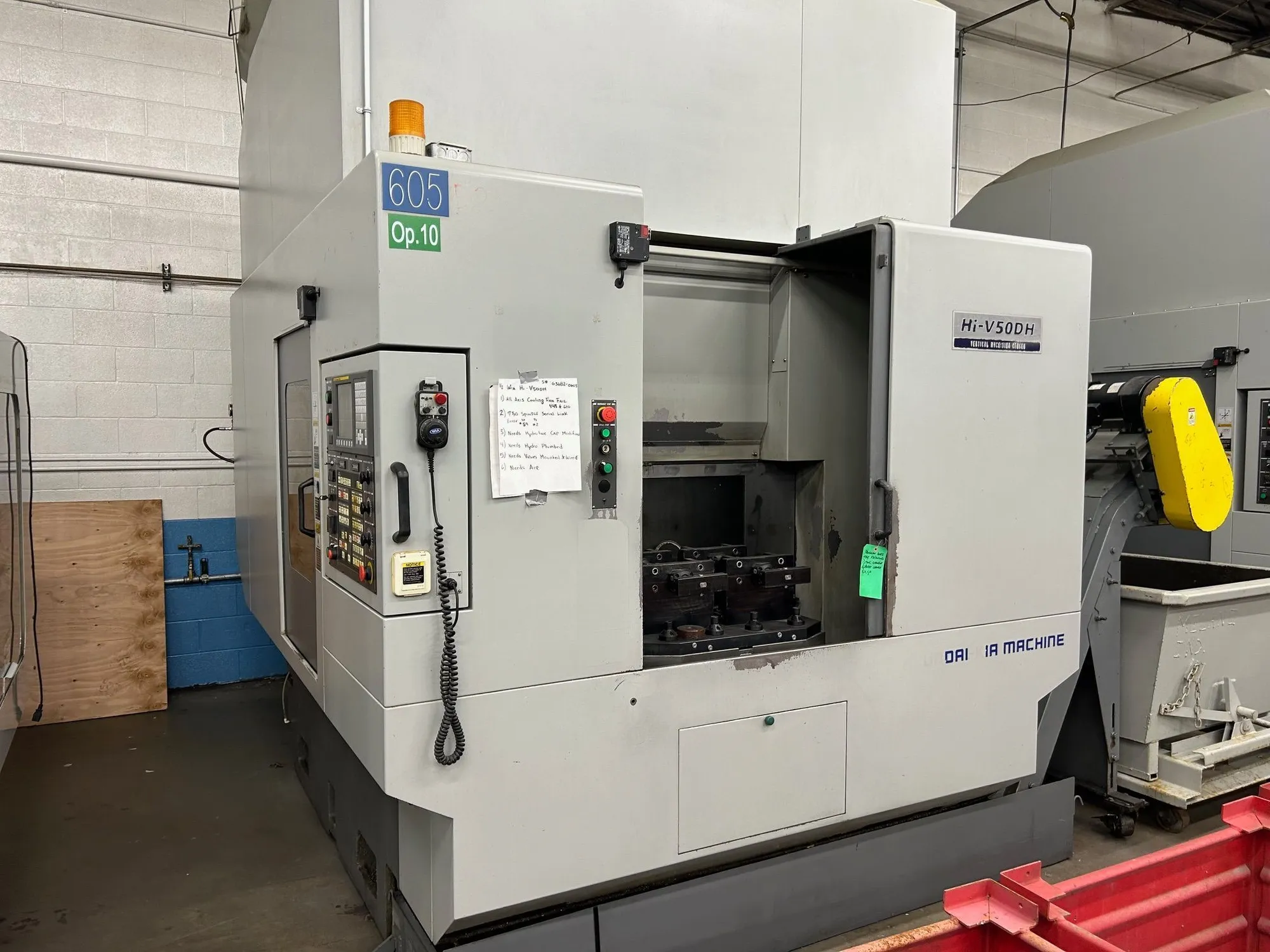

USED 2004 HYUNDAI KIA HI-V50DH
Overview
Description
Hi-V50D Series are designed for the high productivity with the high precision, high speed, and precision accuracy. The moving column design with the integral 180º turning pallet table (dual table) allows operator load/unload or set-up work pieces on another pallet while machining on the other pallet for the high productivity.
Specifications
| X-Axis | 23.6" | 599.44 mm |
|---|---|---|
| Y-Axis | 18.1" | 459.74 mm |
| Z-Axis | 22.4" | 568.96 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Dimensions | 106.7" x 115.4" | 106.7" x 115.4" |
| Weight | 20,944# | 20,944# |
Specifications:
Table:
-Size (length x width): 27.6" x 19.7"
-Maximum Load on Table: 772#
Travel:
-Table Longitudinal (X): 23.6"
-Table Cross(Y): 18.1"
-Spindle Head Travel (Z): 22.4"
-Distance From Column to Spindle Center: 19.7"
-Distance From Table Surface to Spindle Nose: 7.9 - 30.3"
Spindle:
-Taper: NT #40
-Speed (RPM): 12,000
-Power: 14.7/10 HP
-Torque: 51.4 ft/lbs
-Spindle Drive: Direct
Feed:
-Rapid (X,Y): 1,575 ipm
-Rapid (Z): 1,181 ipm
-Cutting Feed Rate: 394 ipm
Machine Weight: 20,944#
Floor Space: 106.7" x 115.4"
Equipped With

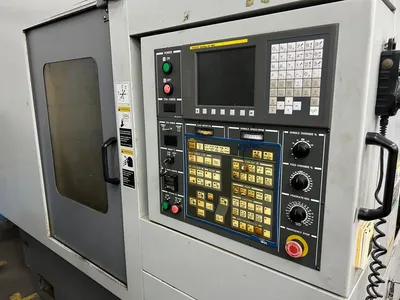

Fanuc Oi-MC Control
Pallet Changer
High Pressure Coolant System
Chip Conveyor
Coolant System
Renishaw Probe
40 Taper

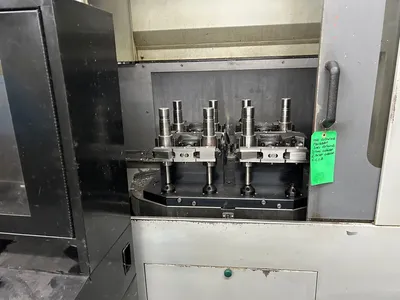

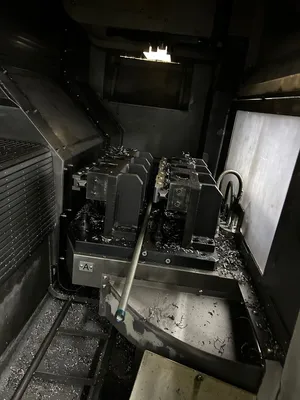

180 Degree Pallet
Pulse Generator

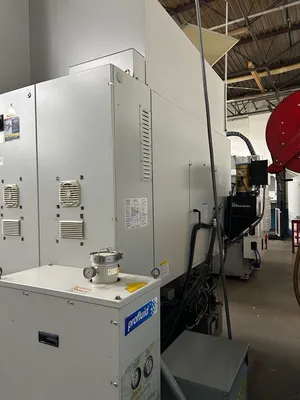

Chiller
