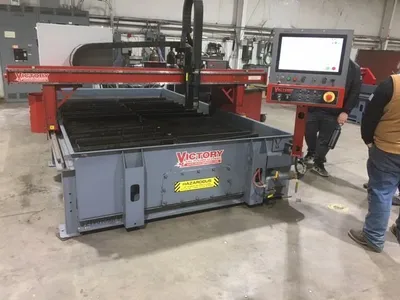

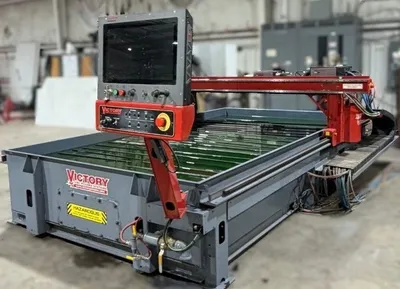

USED 2021 VICTORY CNC PLASMA SYSTEMS V610WU

This machine is available for immediate delivery. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Model V610WU cut bed, supports 100 lbs/ft (approx. 8' × 14' footprint)
Cutting area is 12" wider and 12" longer than plate size
Single‑phase 240V, standard 20‑amp circuit
3/16" A‑36 steel formed water table on W4×13 structural steel frame with adjustable water levels
3/16" × 4" slats on 6" centers in removable slat/slag trays
Precision T‑rails with 2.5" rollers; dual 25mm linear guides on cross axis
Precision steel bridge with rail scrapers and dual linear guide rails
Dual‑side drive 400W rail axis and 400W cross‑axis Yaskawa AC EtherCAT servos
Direct‑drive planetary gearboxes with helical gears and 25mm gear racks
Pre‑tensioned drives; ±0.002" accuracy in 6 sq. ft.
Bonded/grounded electrical system, three E‑Stops, enclosed cable carriers

MS production cut: 1.2"
Max pierce: 2"
Edge start: 3.1"
SS production cut: 1.5"
SS edge start: 3"
Quick‑disconnect torch receptacle & head
Starter consumables package
3‑phase 480V, 91 amps, requires 110‑amp slow‑blow fuse

Additional Integrated Components (Included):
Hypertherm VWI Auto Gas Console + water filter
Hypertherm XPR plasma marking (no torch change required)
Hypertherm Automatic Torch Height Control
Integrated lifter, laser locator, torch breakaway & collision detection
Victory remote login for diagnostics

Table Power - Single‑phase 240V
Plasma Power - 480V 3ph

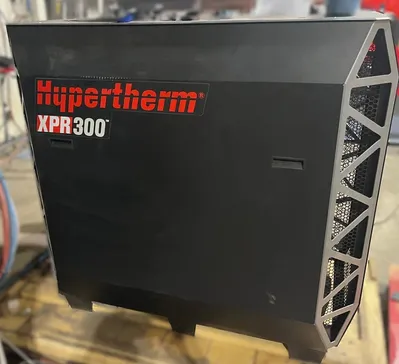

Hypertherm XPR300
