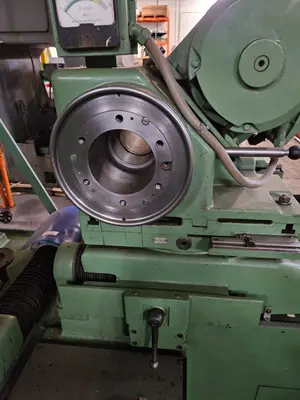

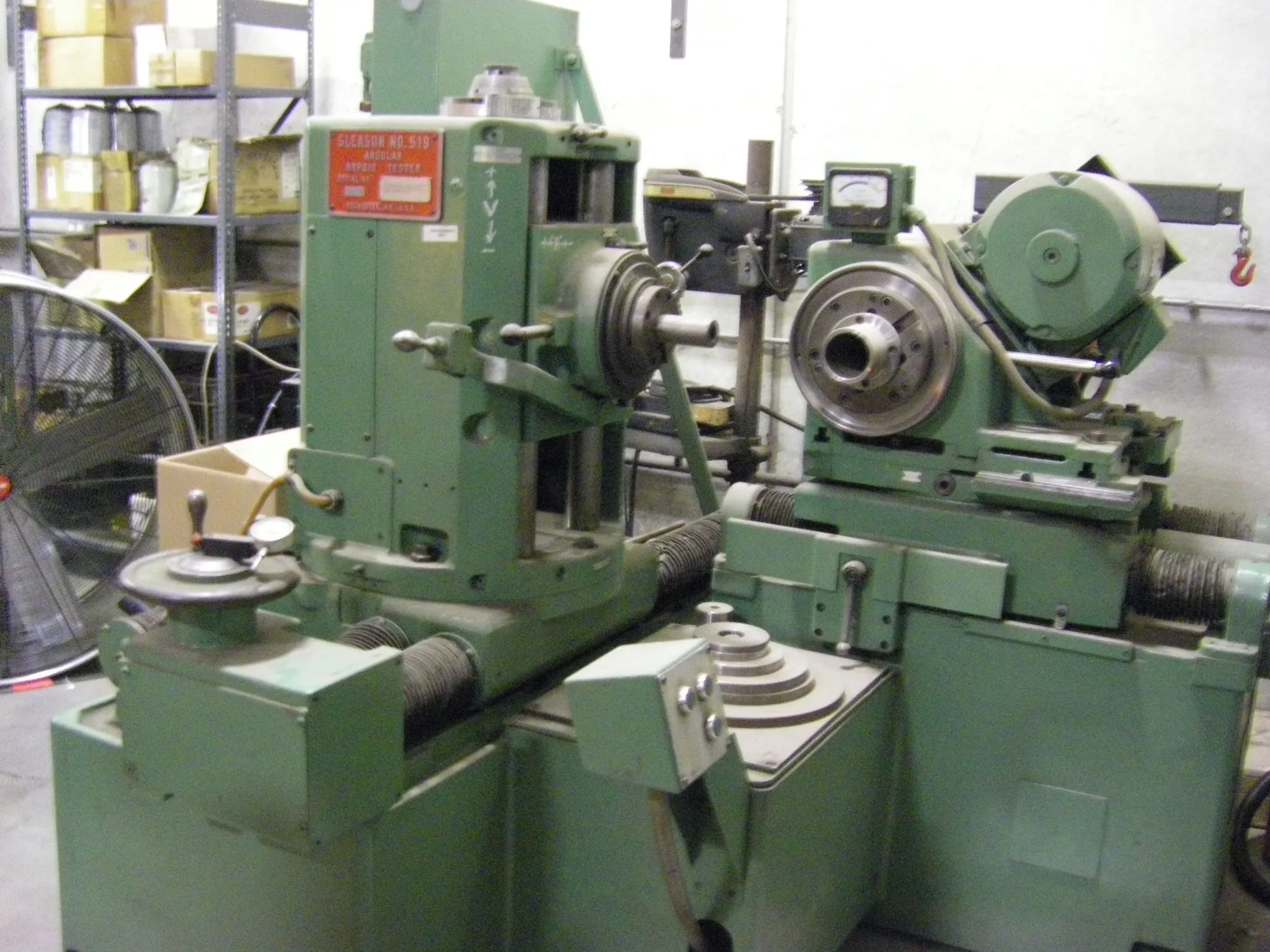

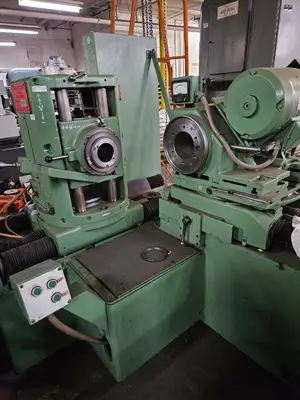

The Gleason 519 is a universal gear tester that can test straight and spiral bevel, as well as spur gearing. It has a 36-inch diameter capacity and uses mechanical clamping.
| Maximum Workpiece Diameter | 267 mm | 10.512" |
| Dimensions | 90" X 75" X 72" H | 90" X 75" X 72" H |
| Weight | 11,000# | 11,000# |
Specifications:
Maximum Gear Diameter at 90 Degree: 36"
Maximum Gear Diameter Angular Bevel & Spur/Helical: 24"
Maximum Diameter of Pinion: 12"
Maximum Offset of Gear Spindle Above/Below Centerline
of Pinion Spindle: 6"
Shaft Angle Range: 0-180 Degrees
Gear Spindle:
Diameter of Taper Hole At Large End: 3-29/32"
Taper Per Foot: 39/64"
Length of Taper: 6"
Drive Spindle Speeds Variable: From 200-2000 RPM
Main Drive Spindle Motor: 7.5 HP
Floor Space: 90" x 75" x 72" H
Weight: Approx. 11,000#
