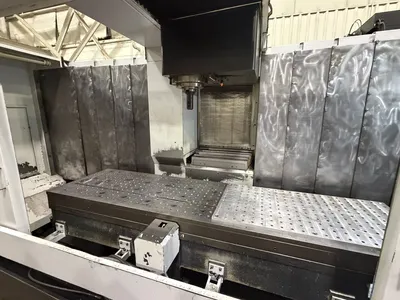

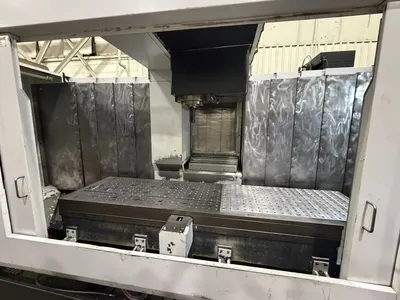

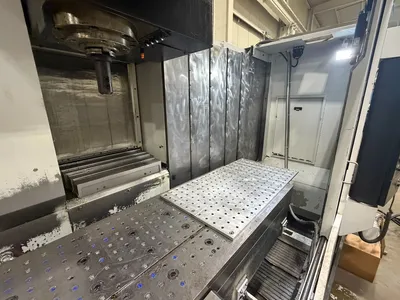

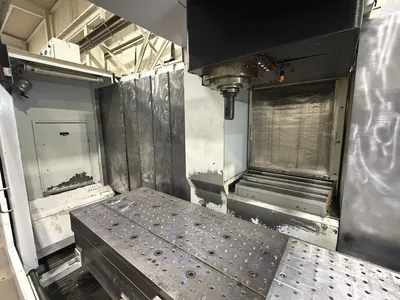

69" X 25" X 25" MAZAK VTC 250D/50 3-AXIS CNC 50 TAPER VERTICAL MACHINING CENTER, 83" X 25" TABLE, 24 POS ATC, 1000 PSI HIGH PRESSURE COOLANT THRU SPINDLE, FROM AEROSPACE PLANT
| X-Axis | 69.3" | 1,760.2 mm |
| Y-Axis | 25" | 635 mm |
| Z-Axis | 25.6" | 650.24 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | 50 | 50 |
| Table-W | 82.7" | 2,100.6 mm |
| Table-L | 25" | 635 mm |
| # Axis | 3 | 3 |
Specifications (subject to buyer verification):
X-Axis travel: 69.3”
Y-Axis travel: 25”
Z-Axis travel: 25.6”
Min/Max distance spindle nose to table: 7.1” - 32.2”
Table size: 82.7” x 25”
Maximum weight on table: 2,778 lbs
Spindle taper: CAT-50
Spindle speeds: 6,000 RPM (2-range)
Spindle motor: 30 HP
ATC capacity: 24
Maximum tool diameter x length: 4.3” x 13.7”
Maximum tool weight: 17.8 lbs
Electrical requirements: 480 Volt; 60A; 50 kVA
Machine dimensions: 171" x 134" x 105"
Machine weight: 24,000 lbs

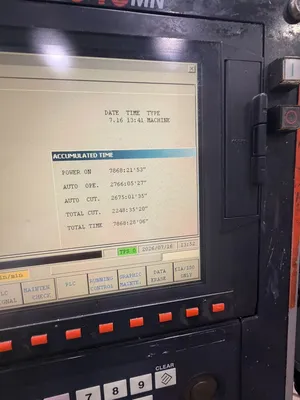

- Mazatrol 640 MN CNC Control
- High pressure coolant thru spindle
Mazak Superflow T8 1000 psi pump
- Mayfran Chip Conveyor
- Coolant Tank with filtration
This machine was installed and maintained by an Aerospace Company
