USED NAKAMURA-TOME SC-250
Overview
Description

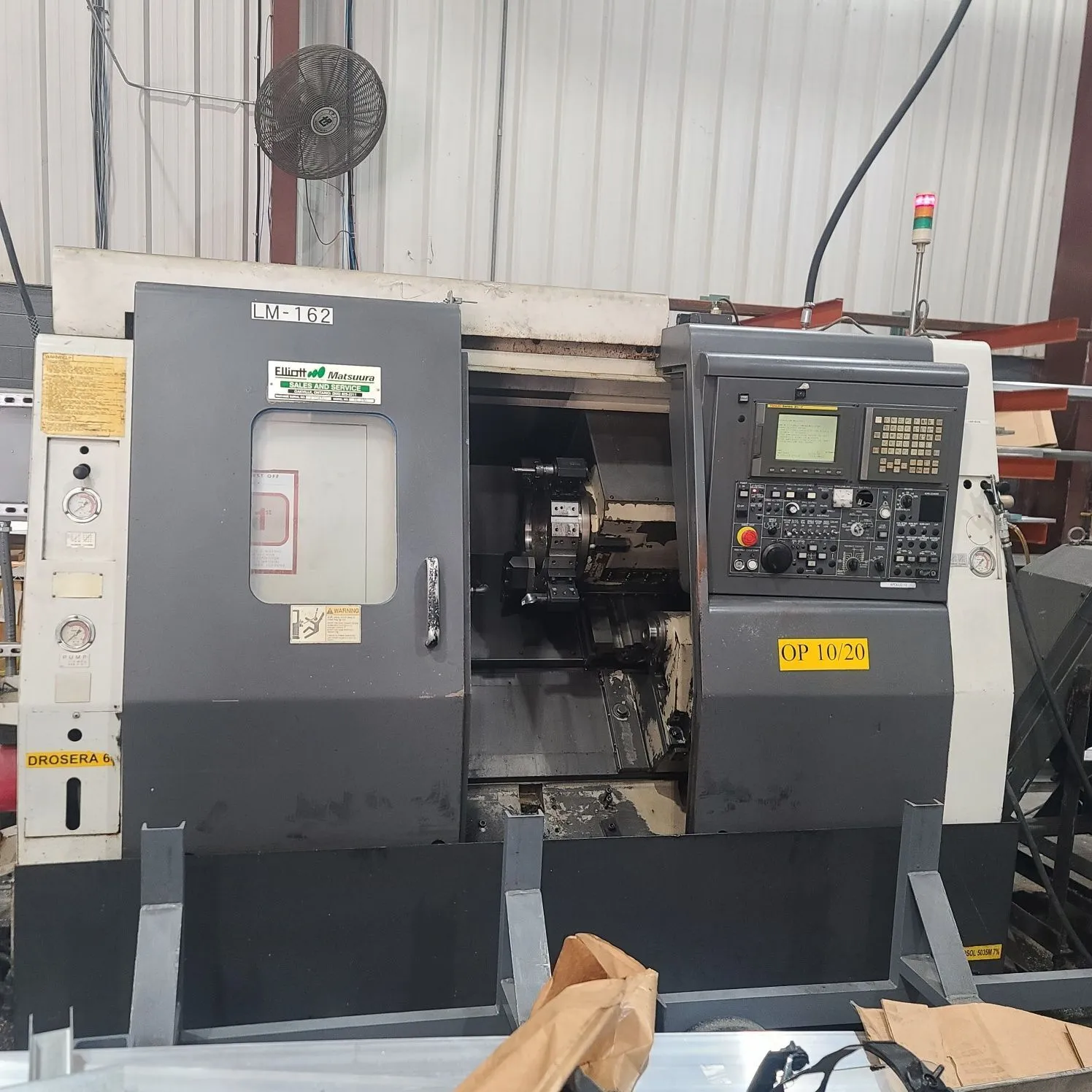

Nakamura Tome CNC lathe model SC-250 w/ Fanuc controls & tailstock very good condition
Specifications
| Machining Length | 689 mm | 27.126" |
|---|---|---|
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 51 mm | 2.0079" |
| Power | 15 kW | 20.1 hp |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 300 mm | 11.811" |
NAKAMURA TOME CNC lathe
MODEL: SC-250 2-AXIS CNC TURNING CENTER
s/n S 204710
SPECIFICATIONS:
SWING OVER BED ...................... 22.04"
SWING OVER CARRIAGE ................. 17.71"
MAX. TURNING DIAMETER ............... 13.77""
DISTANCE BETWEEN CENTERS ............ 28.09"
MAX. TURNING LENGTH ................. 23.62"
MAX. BAR CAPACITY ................... 2.0"
SPINDLE SPEED ....................... 5000 RPM
SPINDLE NOSE ........................ A2-6
X-AXIS TRAVEL ....................... 8.75"
Z-AXIS TRAVEL ....................... 25.0"
NUMBER OF TOOL STATIONS ............. 12
TOOL SIZE ........................... 1"
ID TOOL SIZE ........................ 1.5"
RAPID TRAVERSE X/Z .................. 629/787 IPM
TAILSTOCK QUILL DIAMETER ............ 3.54"
TAILSTOCK QUILL TAPER ............... MT4
TAILSTOCK QUILL STROKE .............. 3.93"
MAIN MOTOR .......................... 20HP
APPROX. WEIGHT ...................... 9,700 LBS
EQUIPPED WITH:
- FANUC 21iT CNC CONTROL
- 8" 3-JAW HYDRAULIC CHUCK
- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
this machine can be inspected under power in our partners warehouse
in Harrison NJ , . give us a call to have an inspection or visit
our website to request a formal quote at WWW.PiselliEnt.com
or contact rich piselli at [email protected]
