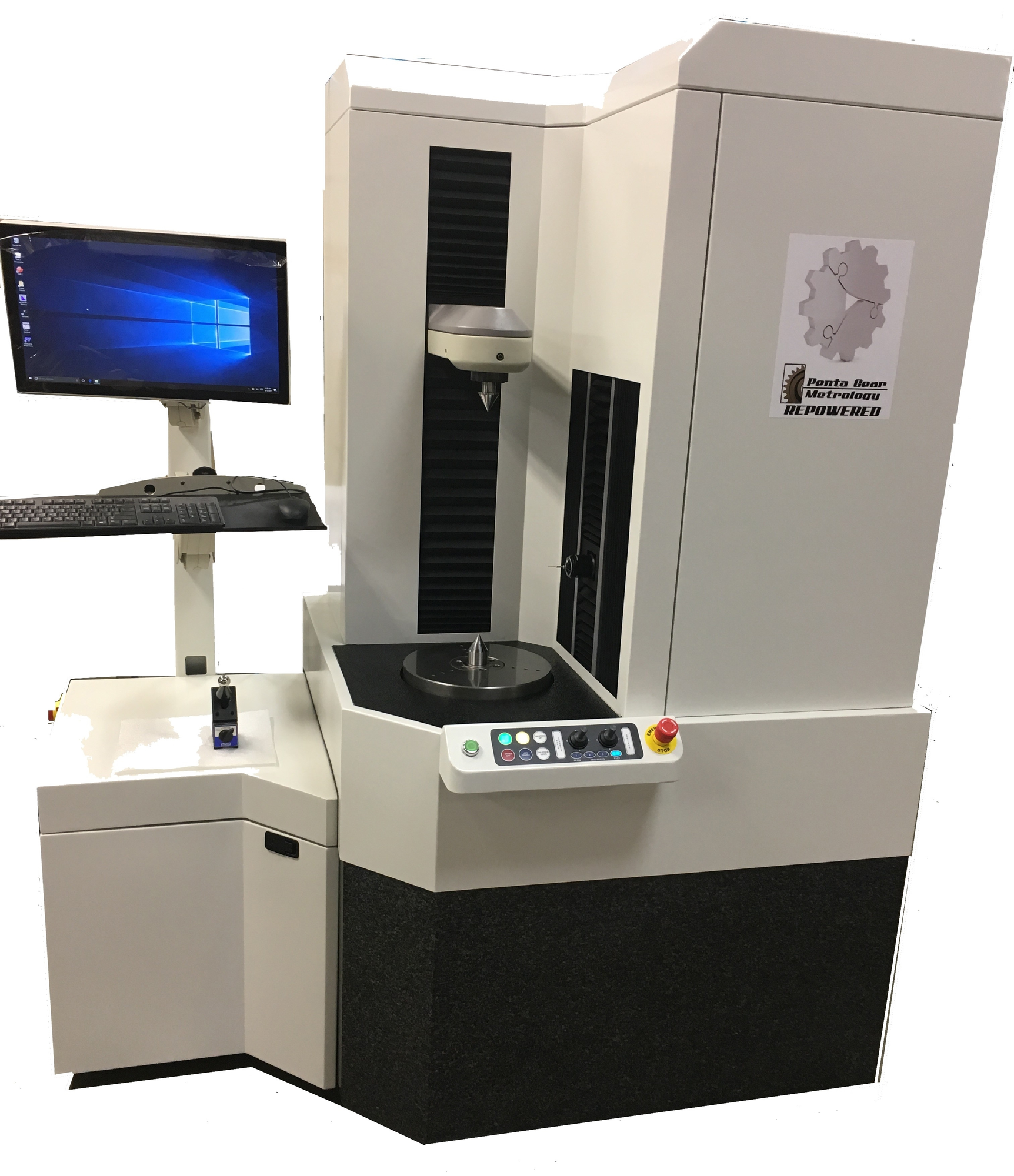

USED 2025 Penta Gear sigma 3 Repower

Penta Gear Repowered CNC Gear testers ( A Div. of KAPP Technologies)
Model Sigma 3
s/n will advise
Repower year 2025

Penta gear is offering Re-powered machines with mostly all new hardware
and , slides, probe system, controls and standard software package for
Parallel axis gears, splines , and general gearing, along with optional
software and pricing upon request.

New and rebuilt items on the Re-Power:

* X-Y-Z Axis Column rebuilt with Renishaw 3-D probe system
-driven by 3 linear motors and rotary drive rotary C-axis
* integrated 4-axis controller including all respective servo drives
* Penta Gear Analysis software for External and Internal gears
* Windows 10 Professional Operating System Computer complete
* New probes and Probe Kit

The following components will remain on the machine and not be replaced
as part of the REPOWER:
*Granite Base
*Machine housing / sheet metal enclosure
*Rotary Table
(should the table need replacement or repair, we will quote the additional cost)
*Tailstock assembly

Machine Sigma 3 Repowered specifications are:
Max Workpiece Diameter 325 mm (12.79")
- Probe resolution 0.03
-Travel Ranges
X Travel probe horizontal travel 195 mm (7.6")
Y Travel horiz movement measuring slide 300 mm (12")
Z Travel vert movement of measuring slide 470 mm (18.5")
C-Axis Rotary table Diameter 228 mm (9.0")
weight Capacity of part & tooling 180 Kg (400 lbs)
- Min./Max. Module 0,15-22 mm
- Min./Max. helix angle 0-90 degrees
- Max. distance between centers 0-750 mm (0-29.9")
- Max. work piece weight 180 kg
- Net mass Machine weight 1300 kg
- Power circuits (Standard execution) V 120 Hz 60
- Environmental recommended temperature °C 20° 2

scope of work performed :
New Drives, Controllers and electronics
New Penta Gear Motion Controller
New Computer
Penta gear Gear Inspection Software is installed

STANDARD SOFTWARE (included)
Cylindrical Gears and Splines Inspection and Analysis Software
**Cylindrical external and internal spur and helical gear inspection to include:
standard involute, modified involute gears: individual and cluster gear-shafts
**Spline inspection to include: involute, serration or straight-sided &
parallel-sided spline forms.
**Analysis with graphical display and charting to include:
**Tolerance Standard Analysis Suite: Includes AGMA 2015-1, AGMA 2000-A88, DIN
3963, ISO 1328-1 1995, & JIS B1702 for gears & ANSI B92.1-1996 Spline Analysis.
**User defined analysis for K-bands, LSS, LSP, Crowning and Hollow
**Band Fit Overlay Line and Curve Analysis for ISO/AGMA/DIN Profile and Lead/Helix
Modifications- Root, Crown, & Tip Relief
**Multi-index height position measurement and chart analysis
**Profile and Helix Lead Multi-trace scanning – 16 profiles and 16 leads for form
topography analysis
**Inspection Data Exporting for post process SPC and offline analysis
**Gear charts and graphs in accord with domestic formats- e.g. DIN/ISO (vertical scaling) or
AGMA (horizontal or vertical scaling)
**Centering Aid for computer assisted radial axis centering of location tooling and/or test
pieces on the rotary C-axis.

Cylindrical Gear – Standard involute and modified involute
**profile- Fα, fhα, ffα
**helix/lead - Fβ, fhβ, ffβ
**cumulative pitch or index- Fρ, pitch- fρ
**runout- Fr tooth thickness-Sn
**dimension Over or Under Size-Mdk for MAX, MIN, Avg. Actual
**calculated Effective CSW/TTHK for:
**individual, cluster gear-shafts
**missing spaces or tooth segments,
**interrupted leads or all teeth inspection.

Spline Inspection –
**Standard involute 37.5 and 45 deg. knurled serrations, straight-sided, and
parallel-sided spline forms –
**profile- Fα, fhα, ffα,
**helix/lead - Fβ, fhβ, ffβ
**cumulative pitch or index- Fρ,
**pitch- fρ,
**Runout- Fr tooth thickness-Sn
**dimension Over or Under Size-Mdk for MAX, MIN, Avg. Actual
**calculated Effective CSW/TTHK for:
- spur and helical splines
- spline shafts
- missing spaces or tooth segments
- interrupted leads, or all teeth inspection.

Training and installation is included for a maximum of 2 days at your
plant. Additional training will be charged at an additional cost
if required at standard service rates. Rates supplied upon request .

***NO LICENSING FEE FOR THESE MACHINES!***

At Piselli Enterprises we are offering out these Re-Powered machines
at an exceptional price for the "Like New Condition" machines. They come
with a warranty of parts failure within 6 months of installation !
come visit the facility in Ohio where the machines are completed.
contact us today for full quote and optional pricing at www.piselliEnt.com
or contact rich piselli at 704 609-0766 for questions or to set up
a viewing today!
