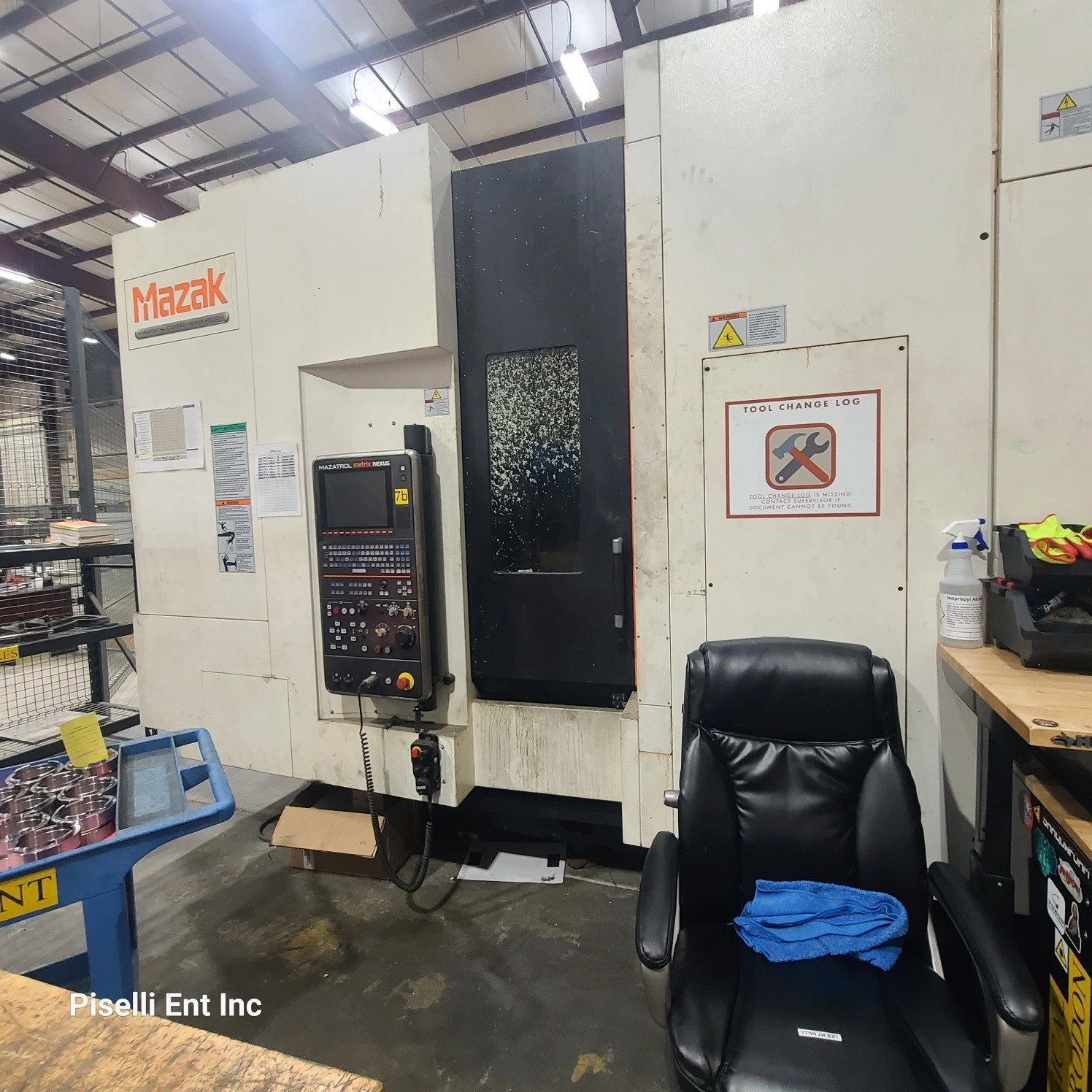

USED 2011 MAZAK Nexus HCN-4000-III

Mazak Nexus 4000 II horizontal machining center , matrix cnc control new 2011 in plant under power Excellent

MAZAK 4-AXIS HORIZONTAL MACHINING CENTER
MODEL: NEXUS 4000 II
S/N: 230815,
NEW: 2011

Inspect under power prior to removal !!!

SPECIFICATIONS:
PALLET SIZE 15.7" X 15.7" (400MM)
PALLET LOAD CAPACITY 882 LBS / 400KG
MAXIMUM WORKPIECE DIMENSIONS 24.8" x 35.43"
MACHINE TRAVELS:
X-AXIS TRAVEL 22.05"
Y-AXIS TRAVEL 24.8"
Z-AXIS TRAVEL 25.2"
PALLET SURFACE TO SPINDLE CENTER 2.76" - 27.96"
PALLET CENTER TO SPINDLE GAUGE PLANE 3.15" - 27.95"
NUMBER OF PALLET STATIONS 2
PALLET INDEXING (FULL FOURTH) .001 DEGREE
SPINDLE TAPER CAT #40
SPINDLE SPEEDS 0 - 18,000 RPM
CUTTING FEEDRATE 0.04 - 2362 IPM
POWER RAPID TRAVERSE 2362 IPM
TOOLCHANGER CAPACITY 40 STATIONS
SPINDLE DRIVE 40/33.5 HP
APPROXIMATE WEIGHT 21,000 LBS
APPROXIMATE FLOOR SPACE85" W x 209"L X 110"H

EQUIPPED WITH:
- MAZATROL MATRIX NEXUS CONTROL (FULL FOURTH)
- 40/33.5 HORSE POWER SPINDLE DRIVE, 18,000 RPM SPINDLE
- THRU-SPINDLE COOLANT, 1000 PSI
- SUPERFLOW V8M/1000 PSI UNIT
- 2 PALLETS
- PROGRAMMABLE PALLET
- 40 STATION AUTOMATIC TOOL CHANGER
- CHILLER
- CHIP CONVEYOR
- Full Documentation
under power Excellent!!!!

inspect machine under power for a short time only in customers plant
machine is located in beautiful North Carolina . come inspect before
Removal and get this pre-removal price . contact piselli enterprises
or our partner Machinery values for further information . in north
Carolina contact RICH PISELLI at 704 609-0766 or [email protected]
