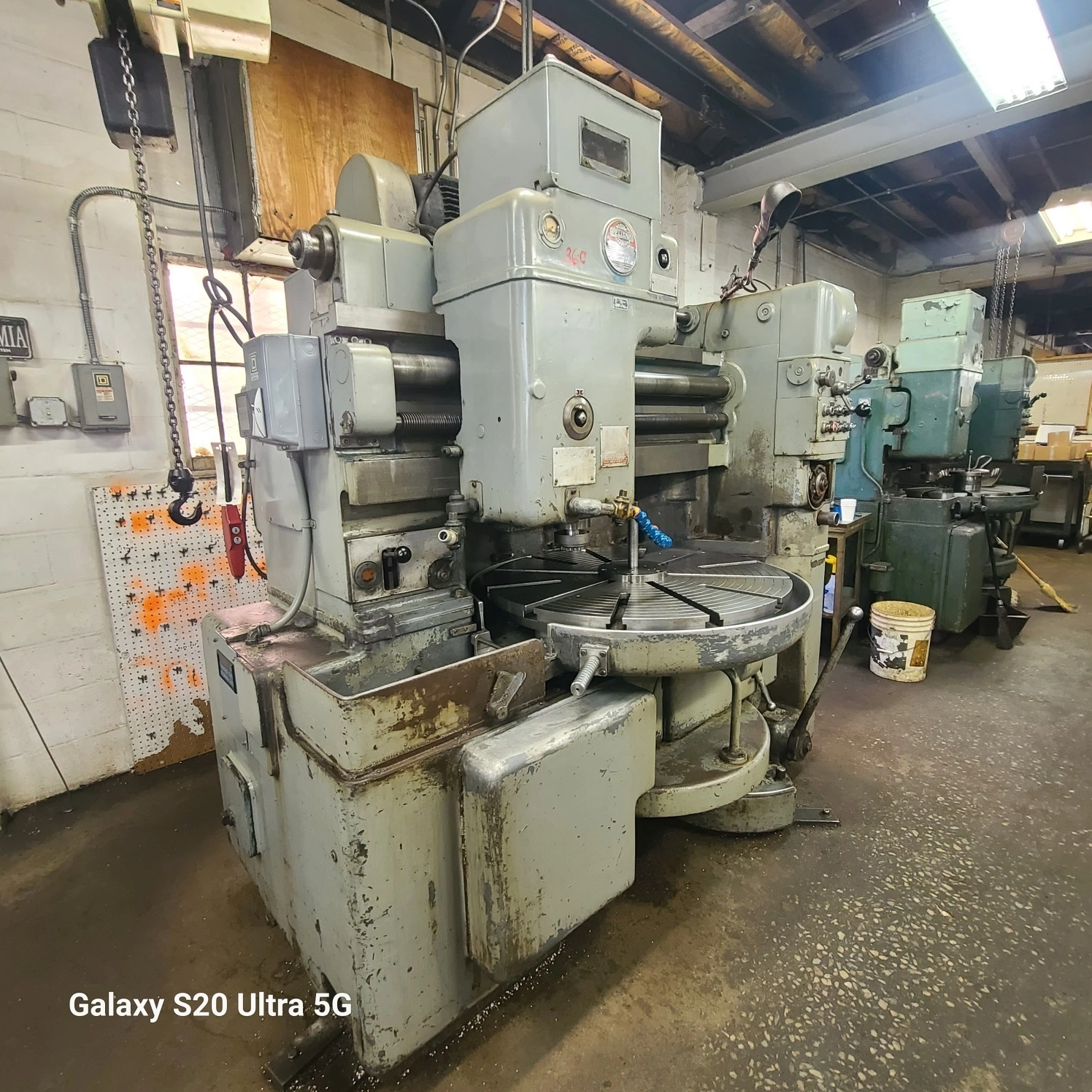

USED FELLOWS 36-6

fellows model 36-6 40" diam gear shapers , 6" stroke , 0" risers, t-slotted tables , right off production floor!

fellows gear shaping machines
model 36-6
s/n 33439 & 26732 (2) machines available as photographed
machines purchased from small gear house

machines came off shop floor !!!!!

machine specs as follows
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................42"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 100"H
* Machine Weight, Approx.........................................17,000 Lbs

Machine Is Equipped With:
0" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
38" t-slotted table (TBD)
misc tooling
change gears
Machine Guarding
operators Manual

Machine(s) can be inspected under power with proper notice. come call for
special pre removal prices . special deal prior to removal only from Link
gear plant
