USED BARBER COLMAN 14-15
Overview
Description
Barber Colman model 14-15 Gear hobber , with dual lead worm and variable speed drive s/n 1220
Specifications
| Max Workpiece Diameter | 14" | 355.6 mm |
|---|---|---|
| Max Diametral Pitch | 3.0 | 3.0 |
| Horz/Vert | Horz | Horz |

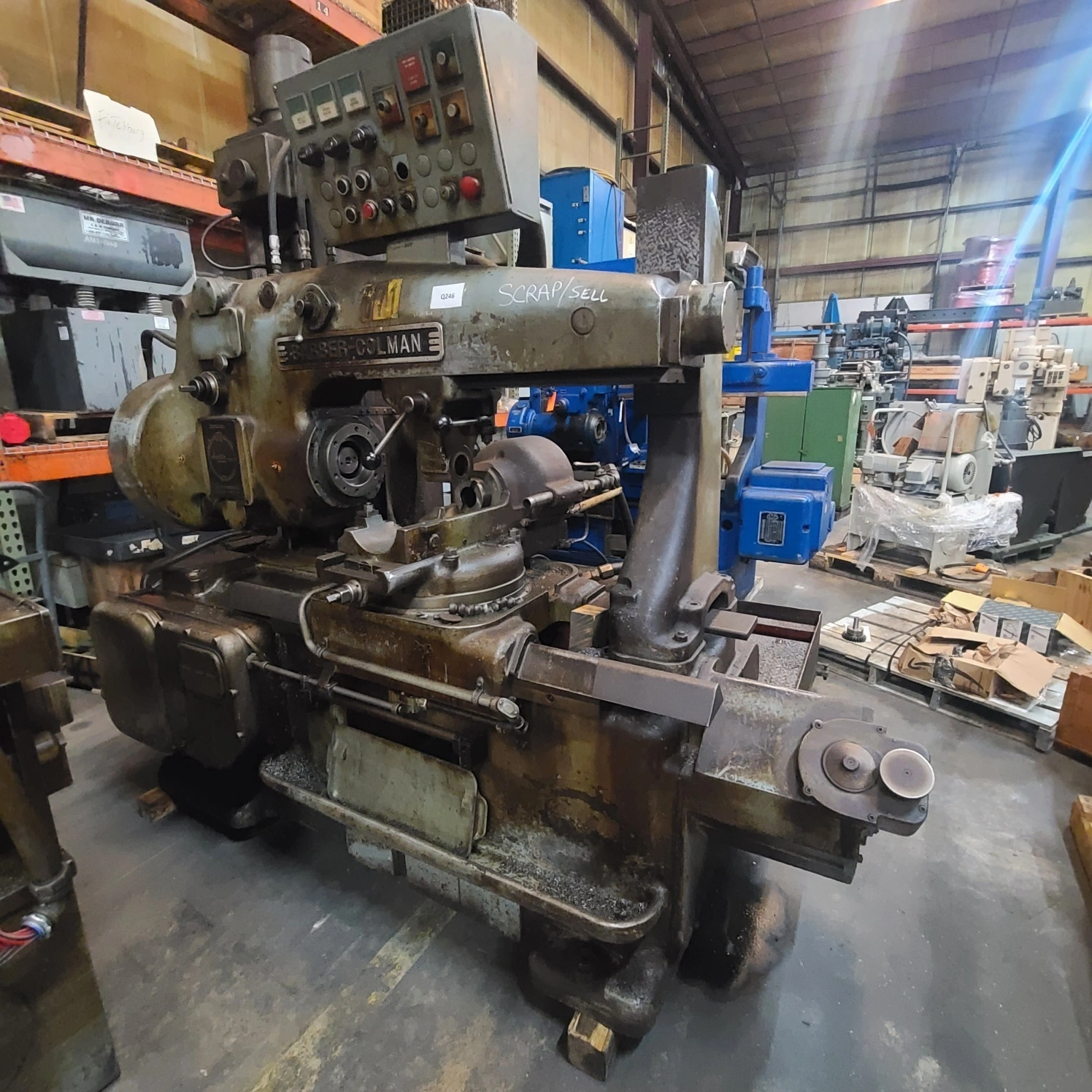

Barber Colman Horizontal hobbing machine
Model 14-15
s/n 1220
equipped as photographed
This automatic horizontal hobber is equipped with differential and
automatic cycles, auto -2 cut and variable speed Drive!!
Machine catalog specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter 14"
* Max. Hob Diameter 5-1/2"
* Max diameter hole in workspindle 4 1/8"
* Max. Pitch 3-1/2 DP
* Max. Work Face 14"
* Max. Travel of Hob Slide 15"
* Machine Electrics 440/3/60 Cycle
* Machine Weight 12,000 lbs.
MACHINE IS EQUIPPED WITH:
* Dual thread index worm
* Variable speed drive
* hob Shift (manual)
* Differential
* hyd tailstock actuator
* Auto Cycle
* V-ways
* Hydraulic unit
* coolant tank
contact jeff at or myself at [email protected] thank you
Machine can Be inspected in our North Carolina plant
visit www.pisellient.com for more gear machinery in stock or to receive
a formal quote . contact Rich Piselli at [email protected] for more info
