USED FELLOWS 6A

Fellows model 645a , 18" diameter 5" stroke , large hole in table , excellent condition , 0" riser assembly

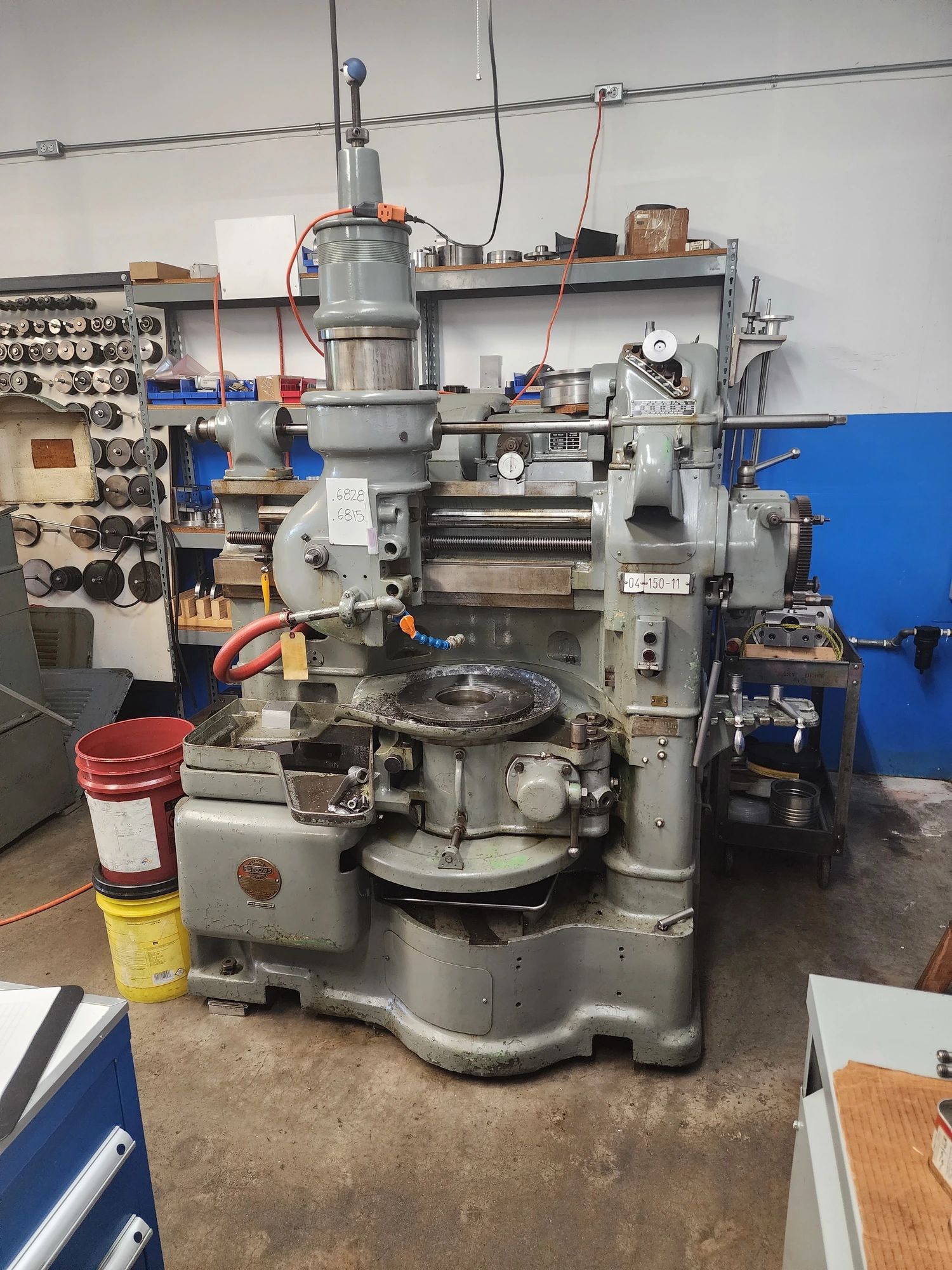

Fellows 6A style vertical gear shaping machine
Model 645A5
s/n 29757
special large hole in table

This machine seems to be in excellent mechanical condition. the Machine
will be gone through and adjusted for wear and re-aligned and brought
back to optimum mfg capabilities. contact us today to set up an inspection

Machine specifications are as follows:

* Max pitch diameter (External)................................18"
* Max pitch diameter (Internal)................................18"
* Max face width, external & internal..........................5"
* Max diametrical pitch spur...................................4 DP
* Max diametrical pitch helical................................6 DP
* Bore through work spindle....................................5 7/8"
* Max clearance height.........................................tbd"
* Cutter spindle diameter......................................2.875"
* Max helix angle with proper guide............................30 deg
* Stroking speeds..............................................50-300 SPM
* Dimensions (L x H x W)..................................63" x 82" x 48"
* Machine net weight, approx....................................6,800 lbs

Machine Equipped With:
* 5" Stroke
* 0" Riser
* 5-7/8" Bore in table
* Internal quadrant
* Standard Straight Spur Guide
* cutter adaptor
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !!
