USED BARBER COLMAN 14-15
Overview
Description
Barber colman mode 14-15 , dual thread , auto cycle 4-1/8" hole, Dig readout, excellent condition , s/n 1331
Specifications
| Max Workpiece Diameter | 14" | 355.6 mm |
|---|---|---|
| Max Diametral Pitch | 3.0 | 3.0 |
| Horz/Vert | Horz | Horz |

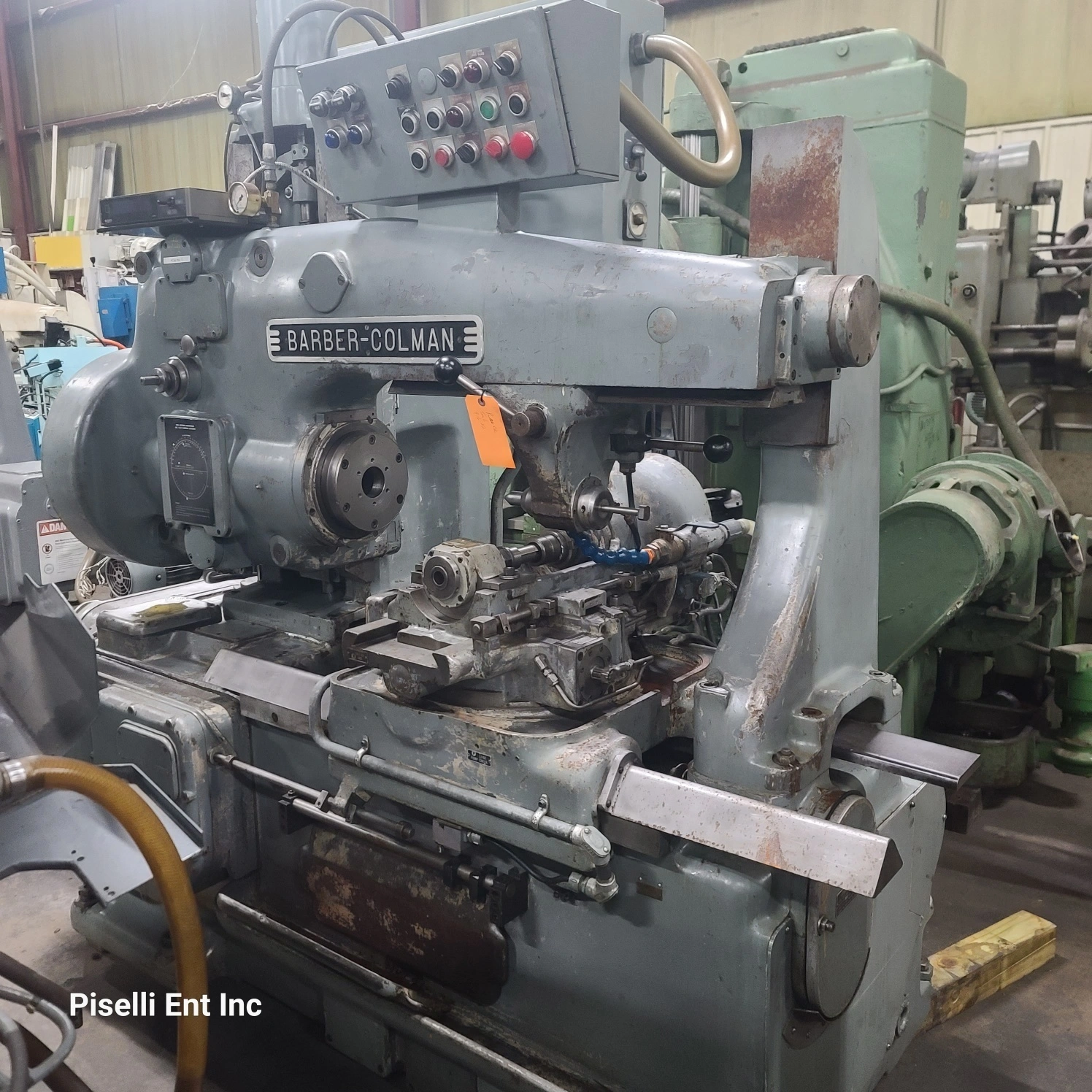

Barber Colman Horizontal hobbing machine
Model 14-15
s/n 1331
equipped as photographed
This automatic horizontal hobber is equipped with differential and
automatic cycles , good production style machine with manual loading
contact us today to inspect in our statesville NC warehouse!!
Machine catalog specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter 14"
* Max. Hob Diameter 5-1/2"
* Max diameter hole in workspindle 4 1/8"
* Max. Pitch 3-1/2 DP
* Max. Work Face 14"
* Max. Travel of Hob Slide 15"
* Machine Electrics 440/3/60 Cycle
* Machine Weight 12,000 lbs.
MACHINE IS EQUIPPED WITH:
* Change Gear assortment
* 1 Hob Arbor
* Dual thread index worm
* hob Shift
* Differential
* hyd tailstock actuator
* hydraulic unit
* Auto Cycle
* V-ways
* Sony digital readout
* screw type center
* power . 460 volt
* Manuals
Machine can Be inspected in our North Carolina plant under
power in good operating condition .
