USED FELLOWS 6A

Fellows model 615A , w/ Special 6" stroke , 3" riser, 3" hole in work spindle , This Machine has been Remanufactured & Rebuilt , Excellent condition s/n 21249

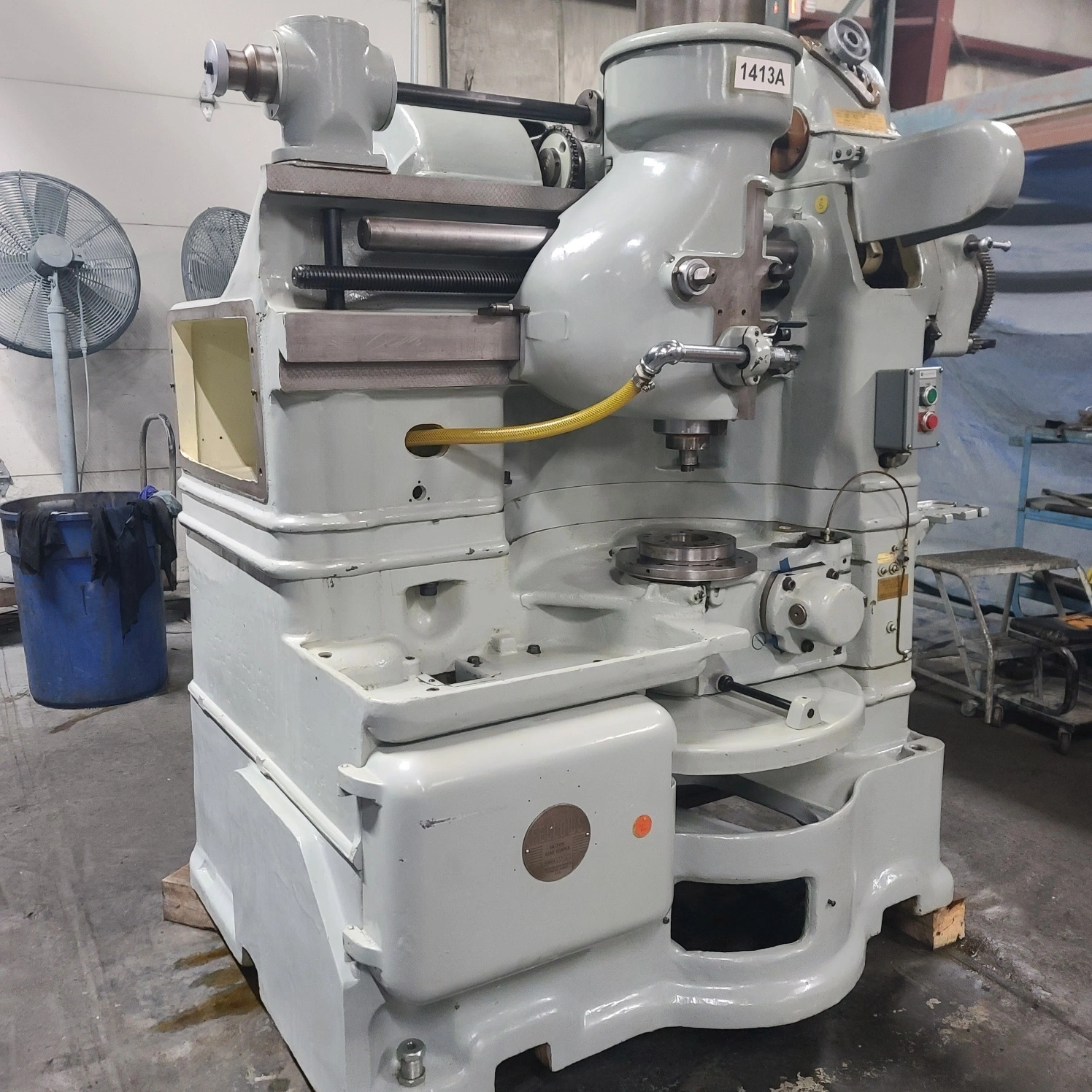

Fellows 6A vertical Gear shaper "SPECIAL REMANUFACTURED"
Model 615A
s/n 21249
Machine in EXCELLENT working condition

this machine Has Ben Remanufactured and equipped with 6"
stroke capacity. it can be inspected under power with proper notice

Machine specs are as follows:

* Max pitch diameter (External).........................18"
* Max pitch diameter (Internal).........................18"
* Max face width, external & internal...................6"
* Max diametrical pitch spur............................4 DP
* Max diametrical pitch helical.........................6 DP
* Bore through work spindle.............................2.875"
* Cutter spindle diameter...............................2.875"
* Max helix angle with proper guide.....................30 deg
* Stroking speeds.......................................50-300 SPM
* Dimensions (L x H x W)................................63" x 77" x 48"
* Machine net weight, approx............................6,800 lbs

Machine Equipped With:
* 6" Stroke special option!!!
* 3" Riser
* Solid Spindle
* Standard Straight Spur Guide
* Misc change gears

** Videos Available if you don't want to travel **

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !! or contact rich at
[email protected]
