USED BARBER COLMAN 14-15
Overview
Description

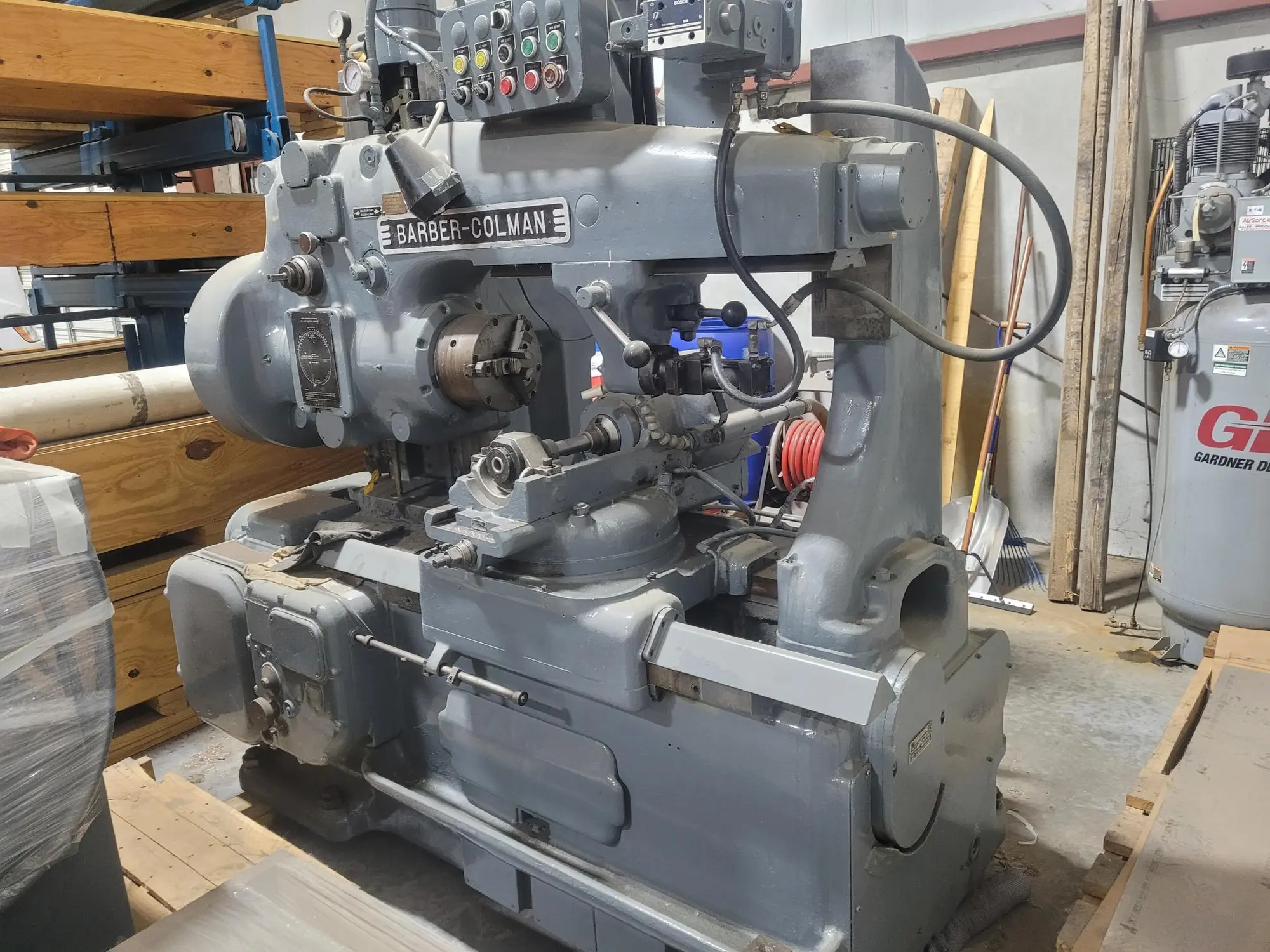

Barber Colman model 14-15 Gear hobber 14" max diameter x 15" cut length , 3.5 DP, Differential , tooled as photographed , good condition , s/n 995
Specifications
| Max Workpiece Diameter | 14" | 355.6 mm |
|---|---|---|
| Max Diametral Pitch | 3.0 | 3.0 |
| Horz/Vert | Horz | Horz |
Barber Colman Horizontal hobbing machine
Model 14-15
s/n 995
equipped as photographed except for front chuck
This automatic horizontal hobber is equipped with differential and
automatic cycles , good production style machine with manual loading
Machine catalog specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter 14"
* Max. Hob Diameter 5-1/2"
* Max. Pitch 3-1/2 DP
* Max. Work Face 14"
* Max. Travel of Hob Slide 15"
* Machine Electrics 440/3/60 Cycle
* Machine Weight 12,000 lbs.
MACHINE IS EQUIPPED WITH:
* Change Gear assortment
* 1 Hob Arbor
* Single thread worm
* Manual hob Shift
* Differential
* hyd tailstock actuator
* hydraulic unit
* Auto Cycle
* V-ways
* 8" diameter 3-Jaw Precision chuck on back of work spindle 2" thru-hole
* Manual
note: front chuck removed by seller prior to shipping
Machine can be purchased prior to removal from customers plant
or once removed can Be inspected in our North Carolina plant under
power in good operating condition . present quote price reflects prior
to removal condition. Prices will change once brought to NC facility
