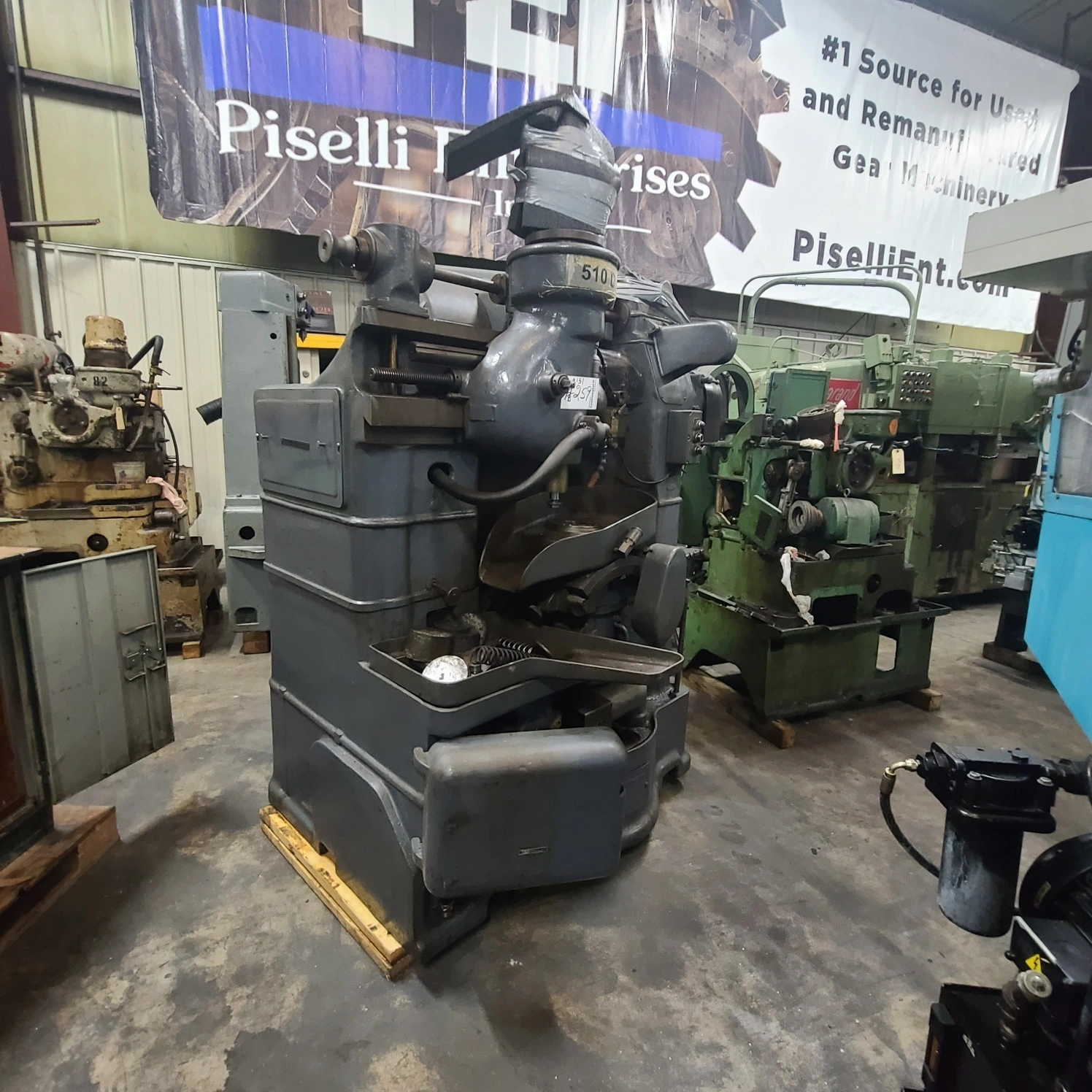

USED FELLOWS 6a w/tilting table

Fellows model 6A w/ special Tilting table option , 0-15 degrees, 3" stroke , 3" hole in the table , 2-7/8" diameter spindle diameter and maximum 18" diameter cutting capacity , Excellent condition

Fellows vertical gear shaper w/ special Tilting table
model 6A special
s/n will advise
special machine for cutting tapered gears up to 15" degrees

This machine is specially equipped with a tilting table option to produce
tapered gears fro 0-15 degrees.

Machine specifications
Machine specifications are as follows:

* Max pitch diameter (External)..........................................18"
* Max pitch diameter (Internal)..........................................18"
* Max face width, external & internal.....................................3"
* Max diametrical pitch spur...........................................4 DP
* Max diametrical pitch helical........................................6 DP
* Bore through work spindle...........................................2.875"
* Cutter spindle diameter.............................................2.875"
* Max helix angle with proper guide..................................30 deg
* Stroking speeds................................................50-300 SPM
* Dimensions (L x H x W).....................................63" x 77" x 48"
* Machine net weight, approx......................................8,000 lbs

Machine Equipped With:
* special tilting table 0-15 degrees
* 3" Stroke
* Change Gears
* 9" Riser
* Standard Straight Spur Guide
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
