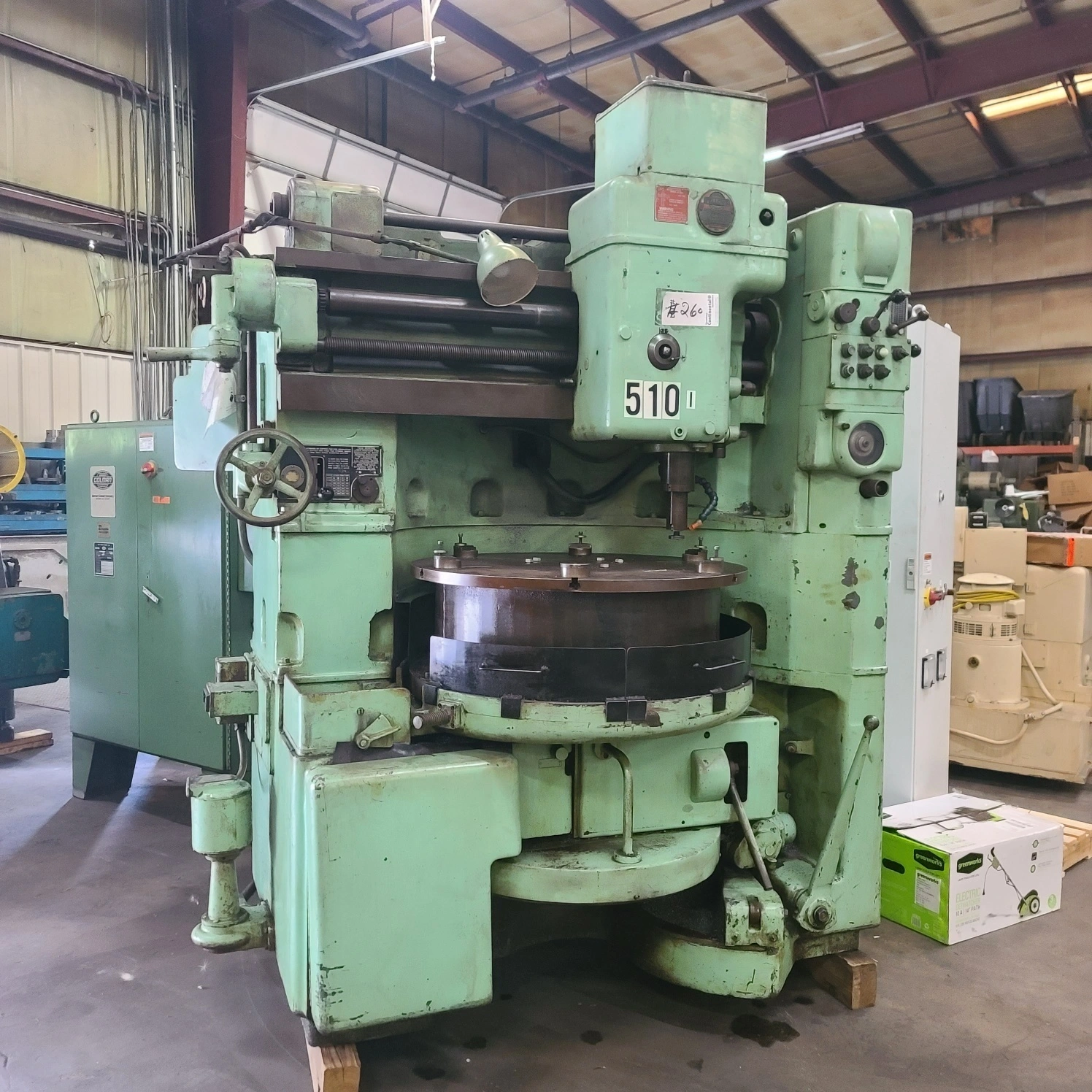

USED FELLOWS 36-6

Fellows model 36-6 w/ cutter elevation 40" diameter capacity , 16.5" riser, 14" high riser table, 4" spindle diameter, 6" stroke length , Excellent condition!!

Fellows vertical gear shaping Machine
Model 36-6 w/ cutter elevating option
s/n 28005
special 16.5" hi Riser

This machine is equipped with cutter elevtaing and high riser 16.5" tall
and also has a 14" tall t-slotted table work fixture included. riser table
can be removed to get large hubs inside work area.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 118"H
* Machine Weight, Approx.........................................18,000 Lbs

Machine Is Equipped With:
Cutter Elevating option
16.5" Riser Assembly
38" diameter 14" tall riser table
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding

Machine can be inspected under power with proper notice. Additional adaptors
can be purchased. Send us your part prints to confirm what you require on
this machine. visit www.pisellient.com to request formal quote on line or
contact rich piselli at [email protected] for more information or set up
inspection!!
