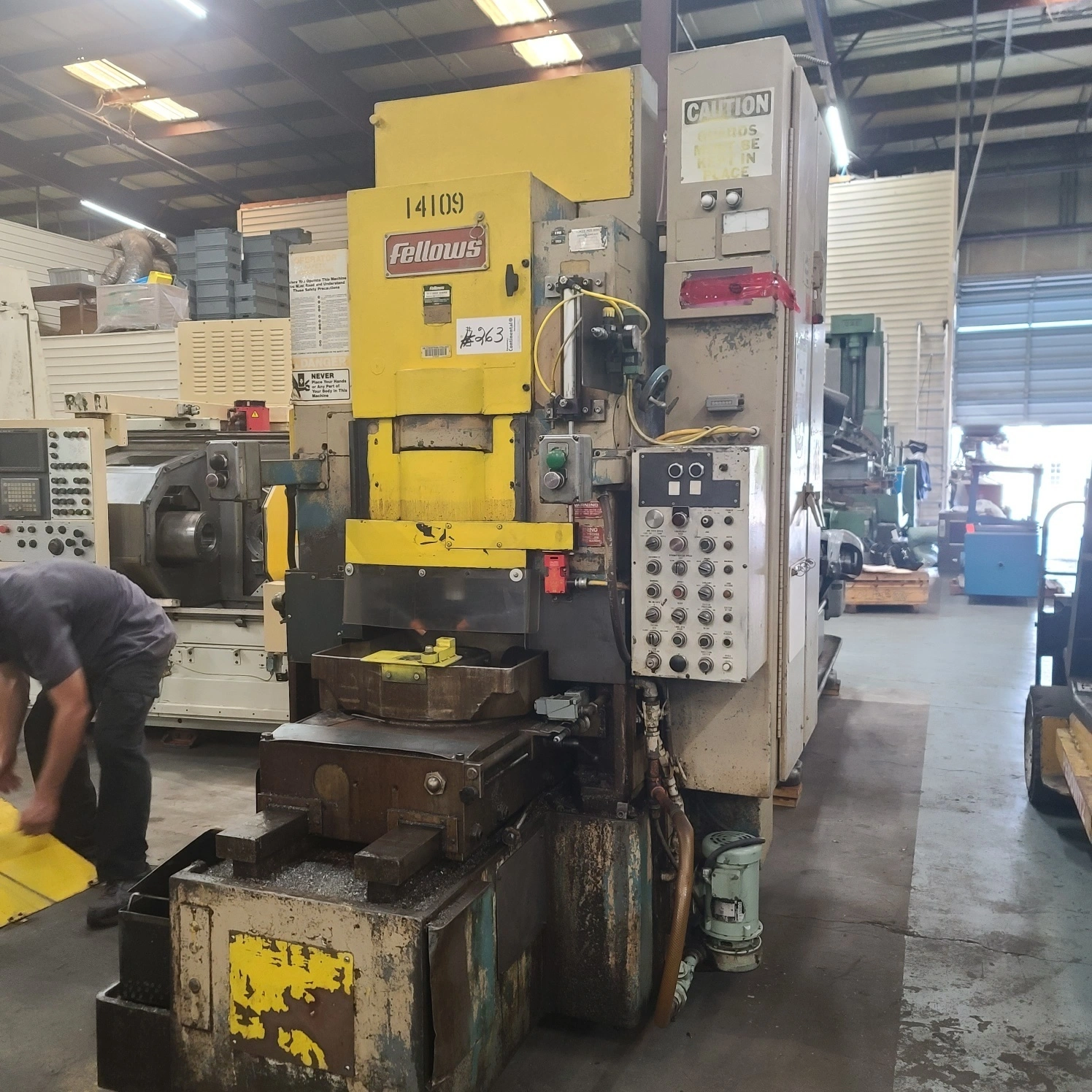

USED FELLOWS 10-2

fellows vertical gear shaper
model 10-2
s/n 35731
good mechanical gear shapers

Machines are to be gone through by Piselli Enterprises and delivered in
excellent working condition contact us regarding the work to be done on
these machines and checked for accuracy.

Machine specifications are as follows:
Max. External & Internal Pitch Dia.......................................10"
Max. Face Width, External.................................................2"
Max. Diametral Pitch, Spur.............................................4 DP
Max. Diametral Pitch, Helical..........................................5 DP
Bore through work spindle.............................................5.875"
Spindle Diameter......................................................3.543"
Distance between work table and cutter spindle...........................10"
Max. Helix Angle with Standard Guides............................45 degrees
Max. OD of Fixture.......................................................19"
Dimensions..............................................119"L x 97"H x 53"D
Approx. weight...................................................11,000 lbs.

MACHINE IS EQUIPPED WITH:
0" Riser
2" Stroke Capacity
1260 strokes per min (high Speed)
Cutter at Top
2 hand safety buttons
Hydraulic Tank
1 Cutter Adapter
Misc. Change Gears
other operations see control panel

Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program. visit www.pisellient.com
