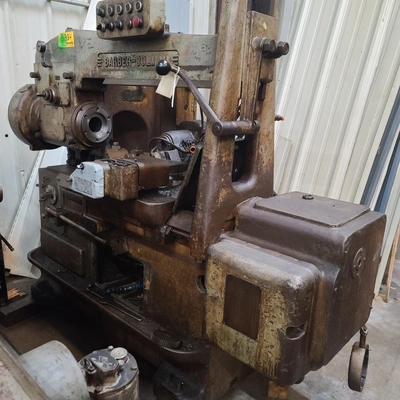

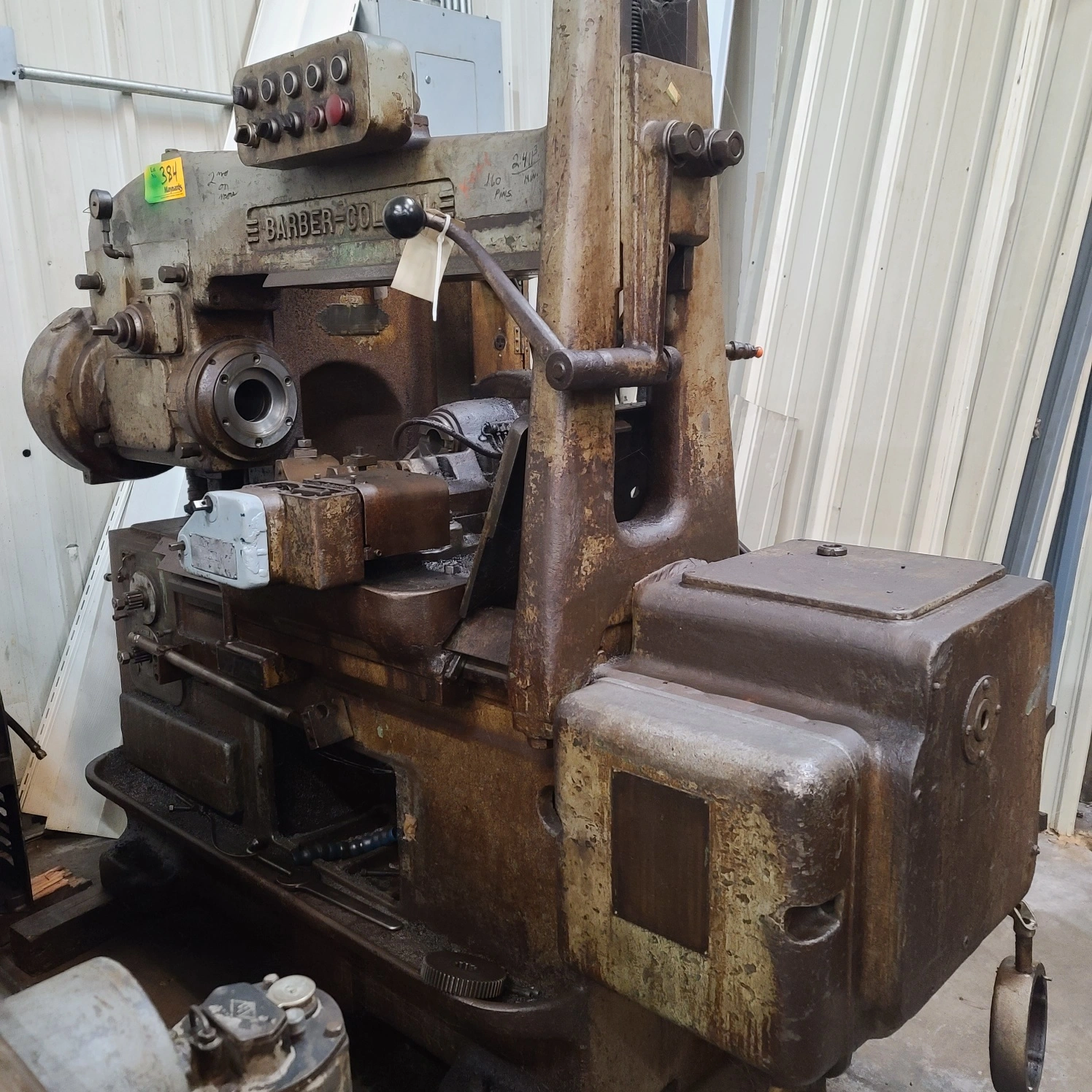

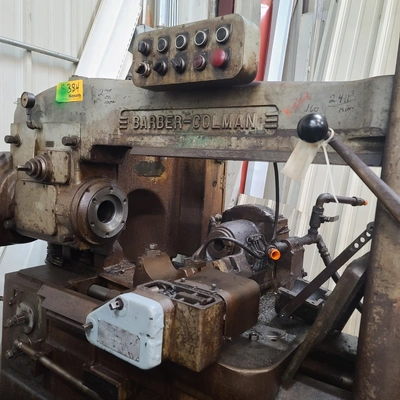

USED BARBER COLMAN 16-16 TYPE A

Barber Colman, Model: 16-16 Type A, Horizontal Gear Hobber, 16" diameter capacity x 16" cut length, Dual Lead worm , push button controls

Barber colman horizontal Gear hobber
Model 16-16
s/n 3191

SPECIFICATION:

Universal Gear Hobber w/Downfeed, Single Thread Worm, Flat Ways, Dead Center

*Max DP in Steel.................................................6 DP-10 DP
*Max Work OD.............................................................16"
*Max Hob Slide Travel....................................................16"
*Diameter Hole Thru Work Spindle.....................................3-/1/8"
*Max Hob Diameter.........................................................5"
*Max Distance Face of Work Spindle to Tail Bracket.......................29"
*Max Vertical Adjustment of Work Spindle..................................8"
*Distance C/L Work Spindle to Underside of Overarm........................8"
*Distance C/L Work Spindle to C/L of Hob Spindle Max/Min.........8.75"/0.75"
*Distance Face of Work Spindle to C/L of Hob Spindle Max/Min......19.5"/3.5"
*Max Hob Slide Swivel Angle Setting-Degrees L or R...............45 degrees
*9 Hob Speeds....................................................59-246 RPM
*Hob Feeds..................................................... .0075-.1125"

MACHINE IS EQUIPPED WITH:
1 Hob Arbor
Dual lead worm
push button controls
Misc. Change Gears
manual
