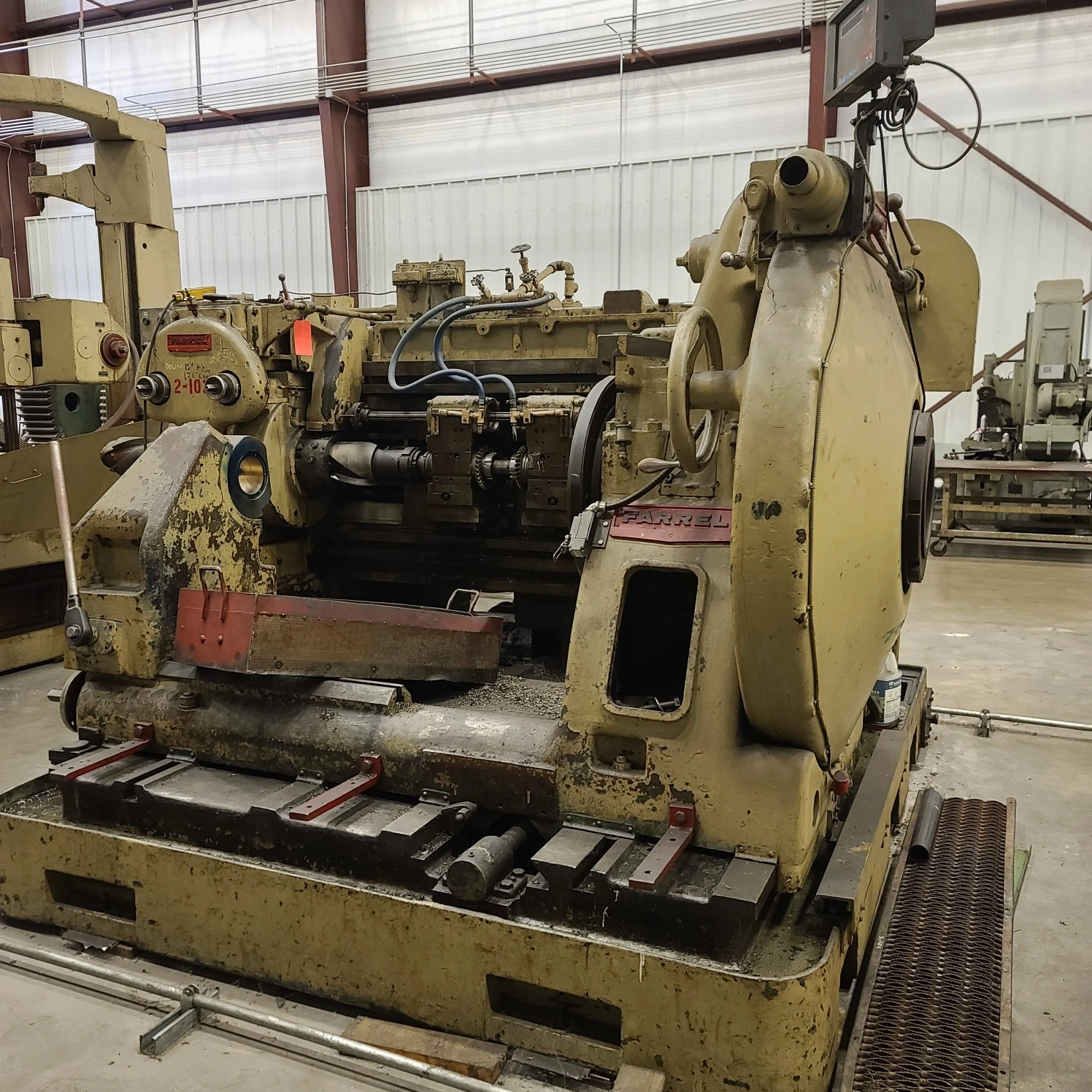

USED FARRELL SYKES 4B

Farrel sykes model 4B , 48" diameter Herringbone generators , tooling , machines are equipped with 30 degree guides. complete package!!! (2 -available )

2 Model No. 4B FARREL-SYKES Gear Generating Machines, suitable for the
cutting of 30-degree single helical, and double-helical/herringbone gears
and pinions, up to 48” (1219mm) diameter, up to 1.25 DP (module 20)

Serial No. ( to be advised )

The machine corresponds to the attached copy of factory literature,
featuring the following: Customer must inspect to Verify all items

EQUIPMENT / FEATURES:

• right & left hand cutter-spindles /drives
• one (1) pair of 30 degree double-helical guides
for use with 6” (152mm) pitch diameter cutters
• one (1) pair of 30 degree double-helical guides
for use with 8” (203mm) pitch diameter cutters
• one (1) pair of rim steadies
• tailstock and support base w/bushing
• one (1) work arbor
• Many pairs of assorted shaper cutters
• assortment of change gears
• machine leveling shoes
• self contained coolant system, pump & piping
• power forced lubrication system
• full complement of electrics (motors/controls)
(presently arranged for 440volt, 60Hz operation)
• operating handle

PRINCIPAL SPECIFICATIONS:

Maximum diameter gear 49” (1219mm)
Minimum diameter gear 0” (0.0mm)
Maximum face-width (single helical) 9” (229mm)
Maximum face-width (double helical or herringbone) 18” (457.2mm)
Maximum diametral pitch (w/6” PD cutters) 2 DP (module 17)
Maximum diametral pitch (w/8” PD cutters) 1.25 DP (module 20)
Work spindle thru-bore diameter 9.125” (231.8mm)
Pitch diameter of cutters utilized 6”/8” (153/203mm)

Main driving motor 10 HP
Floor space required 122”x 135”(3099x3429mm)
Machine overall height 80.25” (2038mm)
Machine net weight 37,450 Lbs (15,659 kGs)

* * * * *
Please note that these machines have an array of tooling and accessories
which can be interchanged with one another .

EXTRA: For the machine & accessory equipment,
professionally packed/preserved for sea-worthy
transport F.O.B. truck export packer’s facility:( upon request )

TERMS: Net cash with formal purchase order, before shipment

DELIVERY: Machines ready for immediate delivery

Machines can be inspected in customers plant for a short time only
contact us today to set up inspection in Oklahoma plant before removal

thank you rich piselli [email protected] or visit www.pisellient.com
