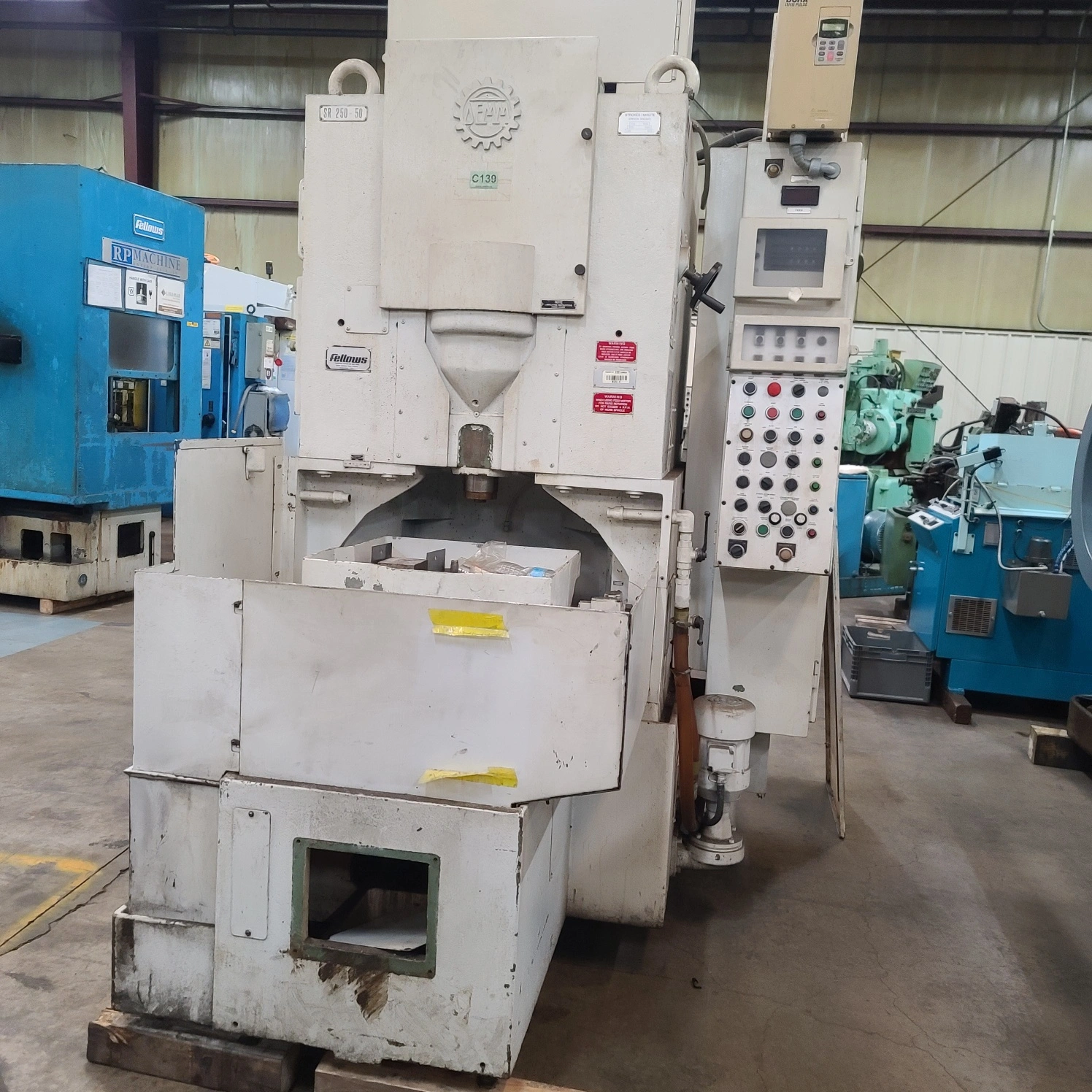

USED 2002 FELLOWS 10-2

Fellows Gear Shaper REMANUFACTURED By DEMM Italy
Model 10-2 / SR 250-50
s/n 250/50/1102
Remanufactured in 2002

this machine was remanufactured and rebuilt by Demm utilizing original mfg
parts. the machine electronics were redone and machine was rebuilt for OEM.
the machine specifications and capacities are comparable to the original
Fellows Model 10-2 machine.

Machine specifications are as follows:
Max. External & Internal Pitch Dia.......................................10"
Max. Face Width, External.................................................2"
Max. Diametral Pitch, Spur.............................................4 DP
Max. Diametral Pitch, Helical..........................................5 DP
Bore through work spindle.............................................5.875"
Spindle Diameter......................................................3.543"
Distance between work table and cutter spindle...........................10"
Max. Helix Angle with Standard Guides............................45 degrees
Max. OD of Fixture.......................................................19"
Dimensions..............................................119"L x 97"H x 53"D
Approx. weight...................................................11,000 lbs.

MACHINE IS EQUIPPED WITH:
0" Riser
2" Stroke Capacity
1260 strokes per min (high Speed) need to confirm
Cutter at Top
Stroke Position
Automatic cycles
Dura Pulse speed variator
Hydraulic Tank
3-cut cycle
Hydraulic table clamping
1 Cutter Adapter
updated electronics and wiring in 2002
Misc. Change Gears

Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our thorough
refurbishing program. Contact us today or visit WWW.PiselliEnt.com
to see more photos or receive a full quote and pricing. or contact
Rich Piselli at [email protected] to set up an inspection !!!
