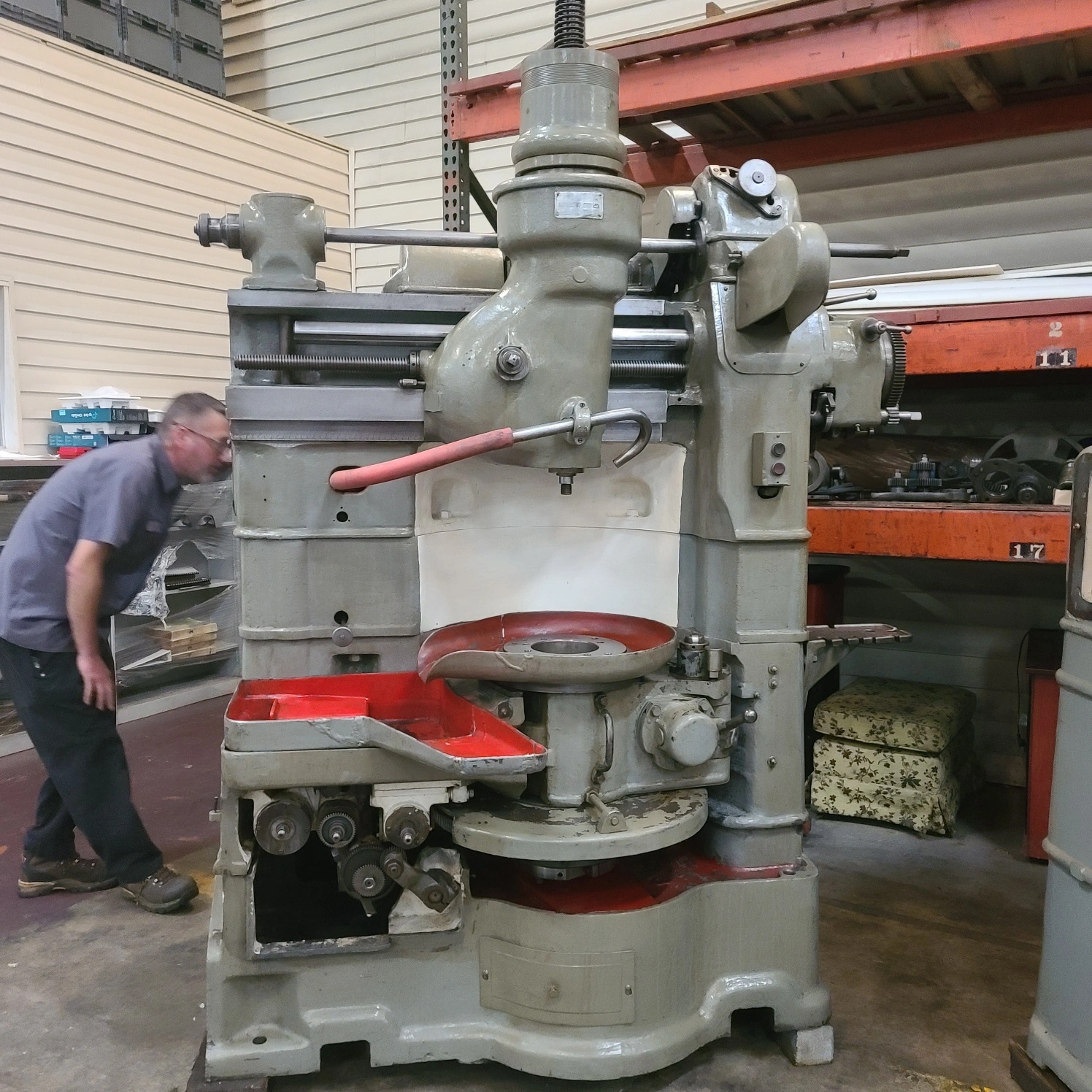

USED FELLOWS 6A

Fellows Model 645A3 VERTICAL GEAR SHAPER , 18" max diam , 3" stroke , 9" riser assembly. large bore in work table , hollow spindle, Excellent condition. sn 23064

Fellows 6A style vertical gear shaping machine
Model 645A3
s/n 23064
special Hi riser machine

This machine seems to be in excellent mechanical condition. the Machine
will be gone through and adjusted for wear and re-aligned and brought
back to optimum mfg capabilities. contact us today to set up an inspection

Machine specifications are as follows:

* Max pitch diameter (External)................................18"
* Max pitch diameter (Internal)................................18"
* Max face width, external & internal..........................3"
* Max diametrical pitch spur...................................4 DP
* Max diametrical pitch helical................................6 DP
* Bore through work spindle....................................5 7/8"
* Max clearance height.........................................15"
* Cutter spindle diameter......................................2.875"
* Max helix angle with proper guide............................30 deg
* Stroking speeds..............................................50-300 SPM
* Dimensions (L x H x W)..................................63" x 82" x 48"
* Machine net weight, approx....................................6,800 lbs

Machine Equipped With:
* 3" Stroke
* 9" Riser
* 5-7/8" Bore in table
* solid Spindle
* Internal quadrant
* Standard Straight Spur Guide
* cutter adaptor
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
