USED FELLOWS 6A

Fellows model 61A gear shaper , 4" riser , solid spindle , 5" stroke capacity , 9" max clearance height, Internal attachment , Gone through , excellent

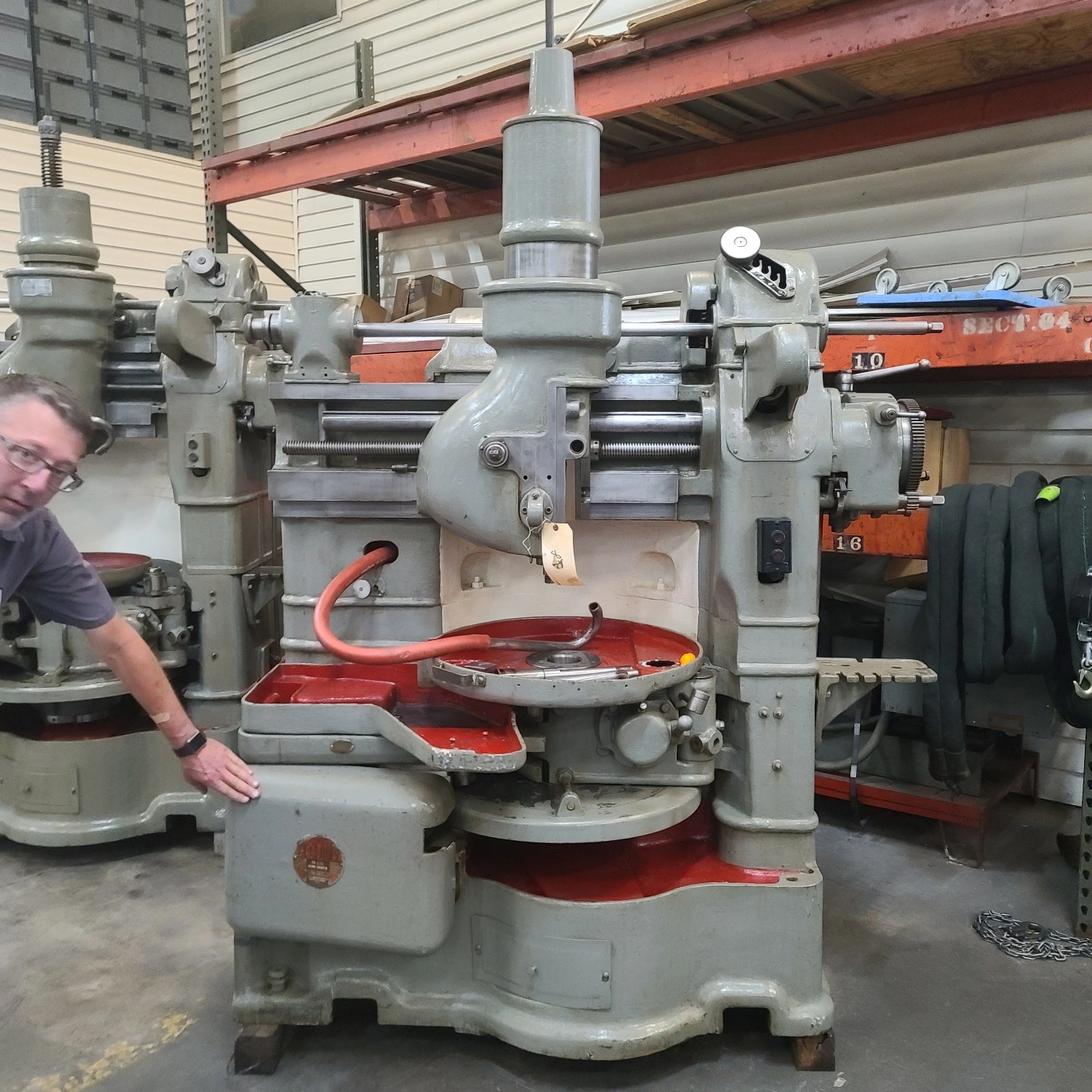

Fellows Vertical gear shaper
Model 61A
s/n 23386
Excellent condition

Machine will be gone through and properly adjusted for optimum
performance. Machine backlash brought back to original OEM specs
while all items repaired as needed

Machine specifications are as follows:

* Max pitch diameter (External)................................18"
* Max pitch diameter (Internal)................................18"
* Max face width, external & internal..........................5"
* Max diametrical pitch spur...................................4 DP
* Max diametrical pitch helical................................6 DP
* Bore through work spindle....................................3"
* Max Clearance height.........................................9"
* Cutter spindle diameter......................................2.875"
* Max helix angle with proper guide............................30 deg
* Stroking speeds..............................................50-300 SPM
* Dimensions (L x H x W)..................................63" x 77" x 48"
* Machine net weight, approx....................................6,800 lbs

Machine Equipped With:
* 5" Stroke
* 3" Bore in table
* 4" Riser
* solid Spindle
* Standard Straight Spur Guide
* tailstock base assembly (no actual tailstock)
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
