USED GLEASON 15

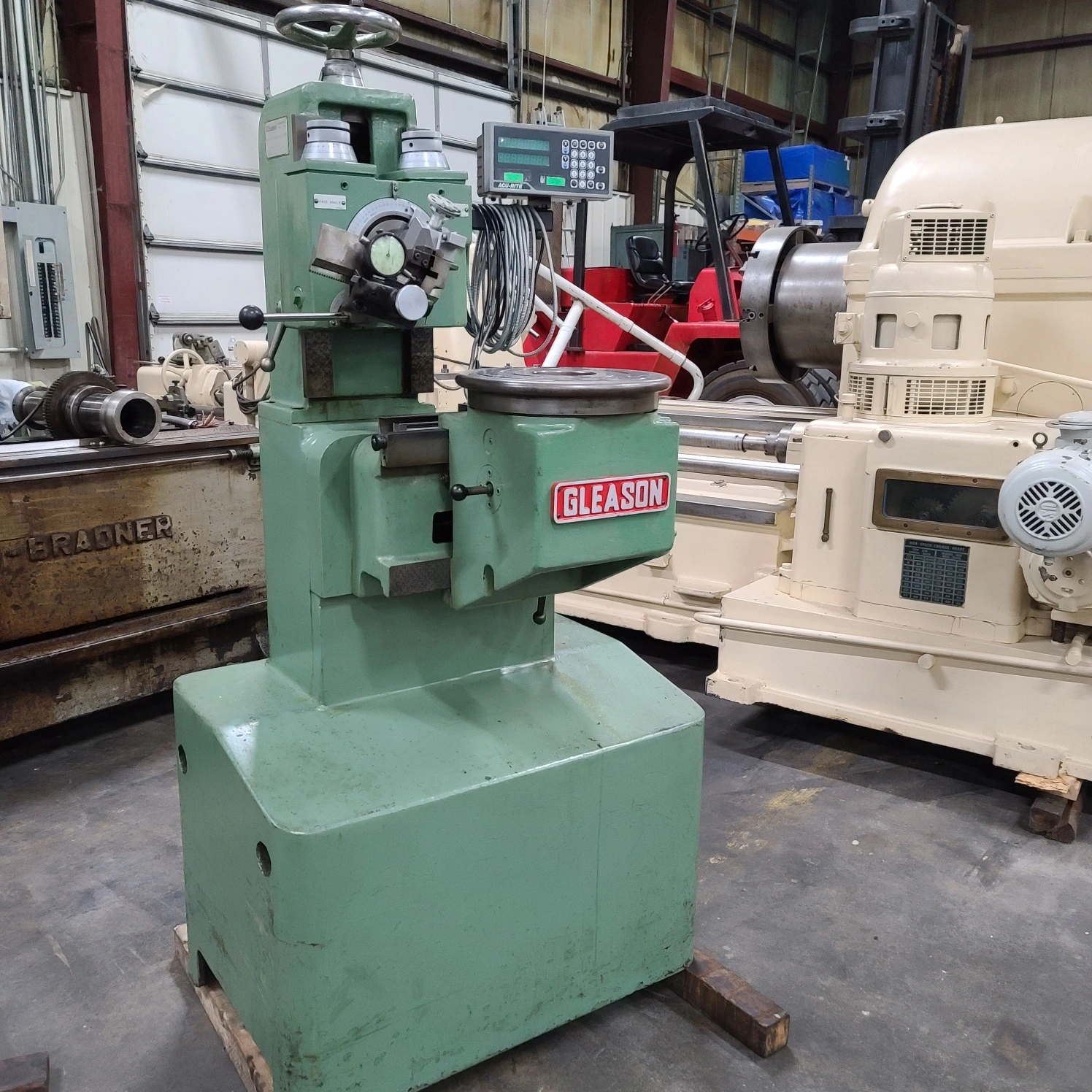

Gleason Model 15 Bevel Gear Blank checker . Equipped with Accu-rite digital readout for Face & Root

Gleason Bevel Gear Blank checker
Model 15 New 1978
S/N 750305
Excellent condition

This Bevel Gear Blank checker was purchased from and aerospace facility
it can be inspected in excellent working condition

One (1) - Model No. 15 GLEASON Blank Checking Machine
suitable for checking bevel and hypoid gear blanks from
2" (50.8mm) to 15" (381mm) diameter

This is a standard 15 series machine, corresponding to the attached
copy of factory literature
equipped with 2-Axis ACU-RITE Digital Readout unit, and precision dial indicator

PRINCIPAL SPECIFCATIONS:

Diameter of gear blank maximum 15"/(381mm)
Diameter of gear blank minimum 2"/(51mm)
Spindle nose to Crown
(maximum for gears and pinions) 2"/(51mm)
Spindle nose to Crown (minimum for pinions)
Back angle up to 70-degrees 4"/(102mm)
Back angle 70-75 degrees 4.25"/(108mm)
Back angle 75-80 degrees 4.5"/(114mm)
Back angle 80-95 degrees 4.75"/(121mm)
Back angle over 85-degrees 5"/(127mm)
Travel of indicator (face angle) 0 - 90 degrees
Travel of indicator (back angle) 0 - 90 degrees
Maximum length between centers 17.75"/(450mm)
Minimum length between centers 6.5"/(165mm)
Diameter of work spindle bore (large end) 3-29/32"/(99mm)
Spindle Taper per foot 39/64"/(1:20)
Depth of spindle taper 6"/(153mm)
Floor space 22"x 32-11/16"/(560x830mm)
Approx. machine net weight 1,900 Lbs./(860 kGs)

machine is equipped with the following
Accu-rite digital readout for Face & Root

machine can be inspected in our Statesville NC facility
