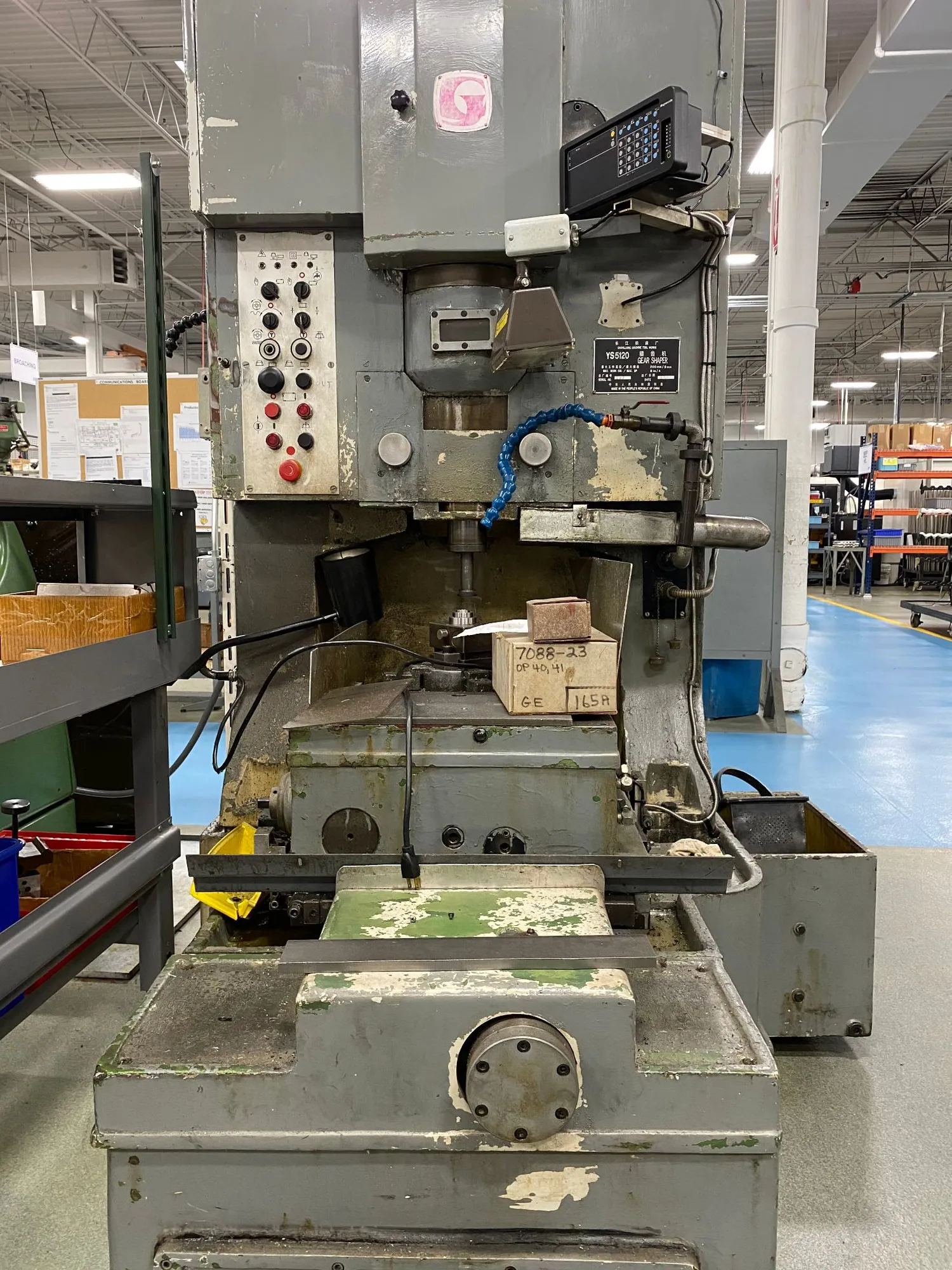

USED 1991 Chang Jiang YS5120

Chang Jiang Vertical Gear Shaping Machine
Model YS-5120 , s/n 092,
year of MFG : 1991

This vertical gear shaping machine is available for immediate sale from an Aerospace mfg
group that has recently shut its gear dept. the machine is similar to the fellows 10-4
Model machines.

Machine Specifications:

Max diameter 8"
Max Pitch 4 DP
Max Stroke Length 2-3/8"
Max stroke positioning 4-3/16" ? need to confirm
stroke speed raange 255-1050 rpm
Center distance spidle -table 2-7"
Table diameter 8"
machine main motor 9 kva
Power 220/3/60 HZ
power load 40 amps

Machine is equipped with the following
Misc tooling
change gears
work holding
digital readout
Coolant tank
manual

Machine can be inspected under power in good operating condition in chicago aerospace
plant for a short time only. contact us today to set up an under power inspection. or
visit our website at WWW.PiselliEnt.com to view this and other gear shaping machines
for sale
