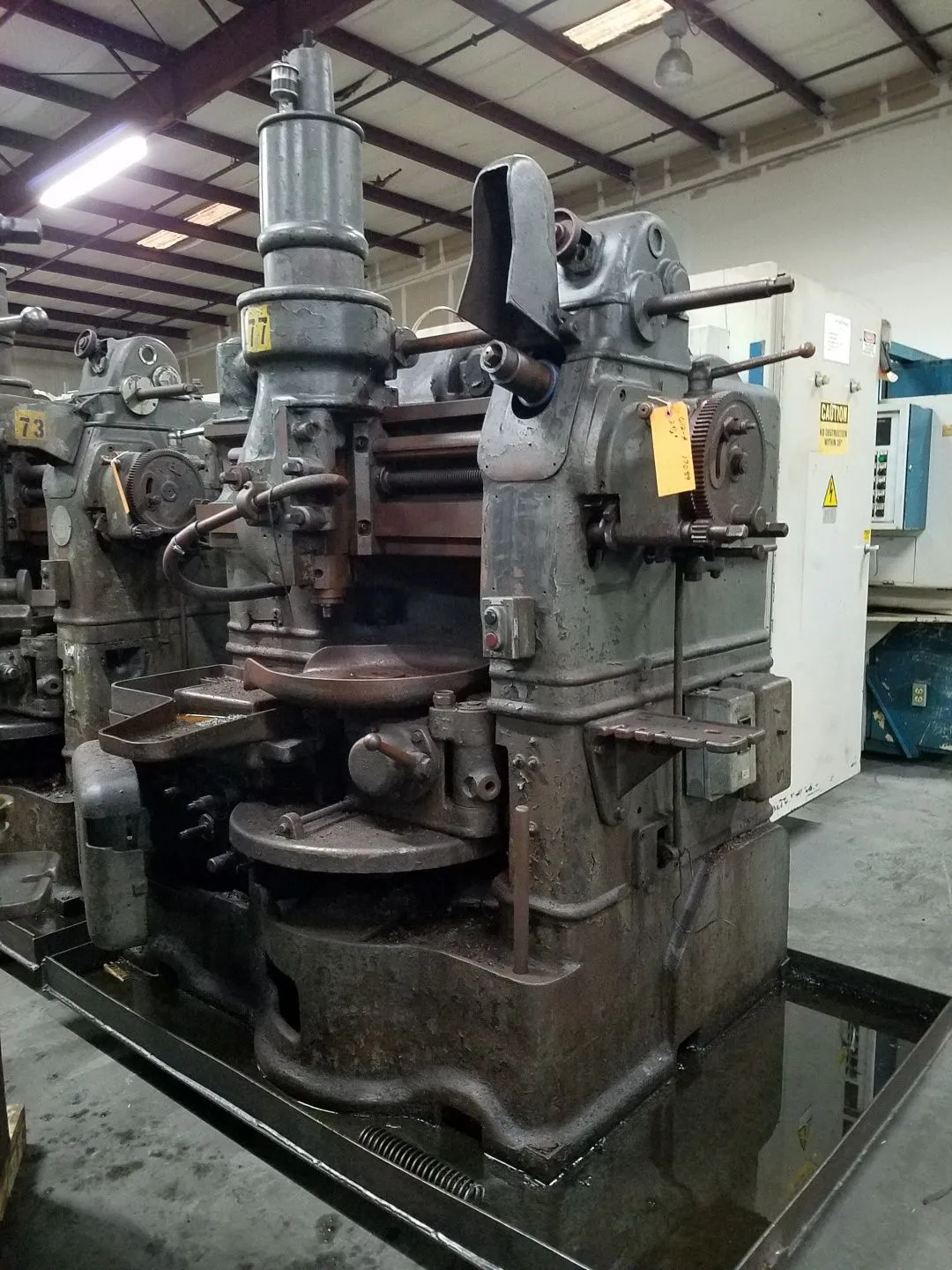

USED FELLOWS 6A

Fellows Model 612A Gear shaper , 18" diameter cap, 5" stroke , 2.5" riser , solid spindle, Machine can be inspected under power and will be gone through to operate in its peak condition. contact us today!

Fellows Gear shaping Machine
Model 612A s/n 17089
excellent condition

Machine can be inspected in our statesville facility under power . Machine
will be gone through by our technicians to run at its optimum level.
contact us today to set up an under power inspection.

Machine specifications are as follows:

* Max pitch diameter (External)..........................................18"
* Max pitch diameter (Internal)..........................................18"
* Max face width, external & internal.....................................5"
* Max diametrical pitch spur...........................................4 DP
* Max diametrical pitch helical........................................6 DP
* Bore through work spindle...........................................2.875"
* Cutter spindle diameter.............................................2.875"
* Max helix angle with proper guide..................................30 deg
* Stroking speeds................................................50-300 SPM
* Dimensions (L x H x W).....................................63" x 77" x 48"
* Machine net weight, approx......................................6,800 lbs

Machine Equipped With:
* 5" Stroke
* Change Gears
* 2.5" Riser
* Solid Spindle
* Standard Straight Spur Guide
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
