USED FELLOWS 61A

Fellows model 61A Gear Shaper 18" diameter , 5" stroke, 2" riser, solid Spindle, excellent condition,
inspect under power in our statesville facility gone through.

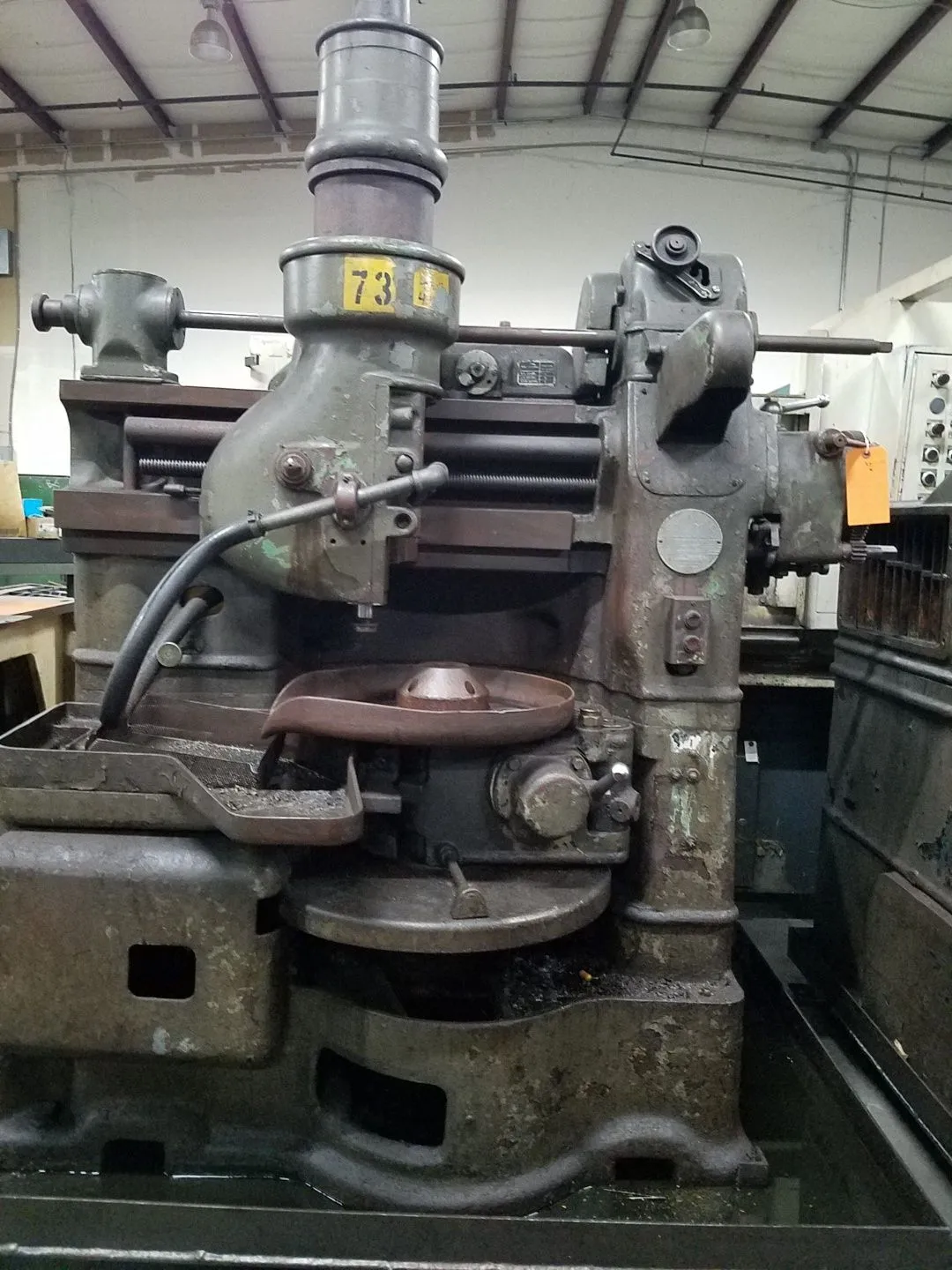

Fellows Gear Shaping machine
Model 61A S/N N/A
Excellent condition

Machine has been gone through by our technicians ,
it can be seen under power with proper notice. we
Welcome your inspection

Machine specifications are as follows:

* Max pitch diameter (External)..........................................18"
* Max pitch diameter (Internal)..........................................18"
* Max face width, external & internal.....................................5"
* Max diametrical pitch spur...........................................4 DP
* Max diametrical pitch helical........................................6 DP
* Bore through work spindle...........................................2.875"
* Cutter spindle diameter.............................................2.875"
* Max distance table surface to spindle.................................7.5"
* Max helix angle with proper guide..................................30 deg
* Stroking speeds................................................50-300 SPM
* Dimensions (L x H x W).....................................63" x 77" x 48"
* Machine net weight, approx......................................6,800 lbs

Machine Equipped With:
* 5" Stroke
* Change Gears
* 2." Riser
* Solid Spindle
* Standard Straight Spur Guide
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !!
