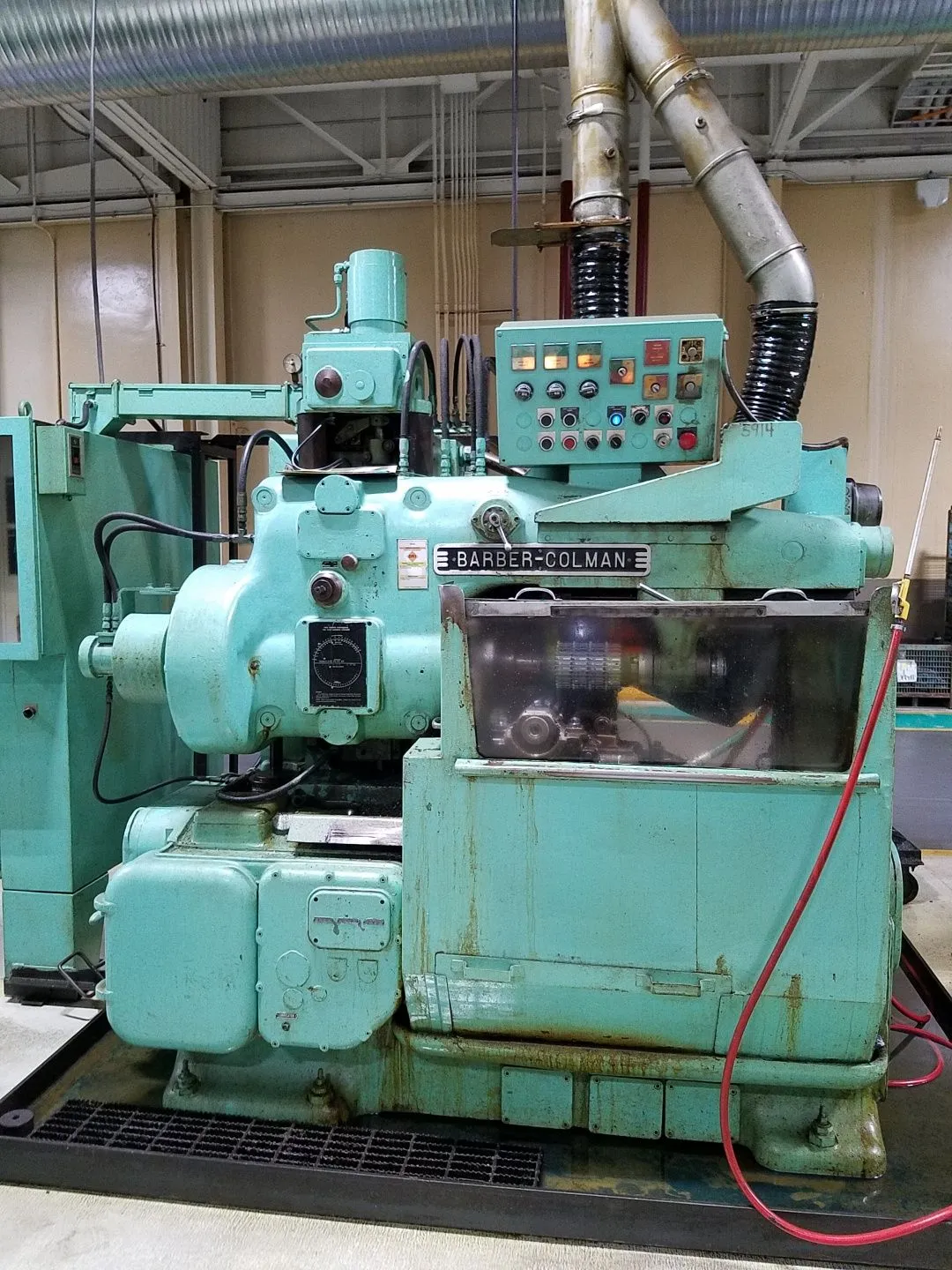

USED 1990 BARBER COLMAN 14-15 MULTICYCLE RE-MFG
Overview
Description
Barber Colman Model 14-15 multicycles , 14" diam., 15" part Length , 3.5 DP, 2-cut cycle, Diff, Dwell, Plunge, etc. Hydraulics , External coolant tank , Hyd part clamping and hyd tailstock, Updated electronics, (4 available) Excellent!
Specifications
Barber Colman Horizontal hobbing machines
Model: 14-15 Multicycle re-manufactured 1990
(4 Available) s/n 1320, 1283, 1251, 1250
These machines were upfit with New electrics and state of
the art components in the late 1980s - early 1990's By
barber colman company . Machines have been running and used
in production by volvo / Mack truck division making gear parts
for manual truck transmissions.
Machine specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter 14"
* Max. Hob Diameter 5-1/2"
* Max. Pitch 3-1/2 DP
* Max. Work Face 14"
* Max. Travel of Hob Slide 15"
* Machine Electrics 440/3/60 Cycle
* Machine Weight 12,000 lbs.
MACHINE EQUIPPED WITH:
* Automatic cycles
* 2-cut rough & Finish cycles
* 1 Hob Arbor
* Differential
* Part Clamping
* Updated electrics
* Dual Lead worm
* Adjustable tailstock
* Downfeed
* Auto Hob shift
* Books and manuals
Machines can be inspected in very good condition in our NC Plant.
These would be a good addition to any gear shop.
Call to set up an inspection today!
GO to: www.PiselliEnt.com to view these and other gear machines
in our inventory request formal quotes on line with pricing
contact rich Piselli at [email protected]
