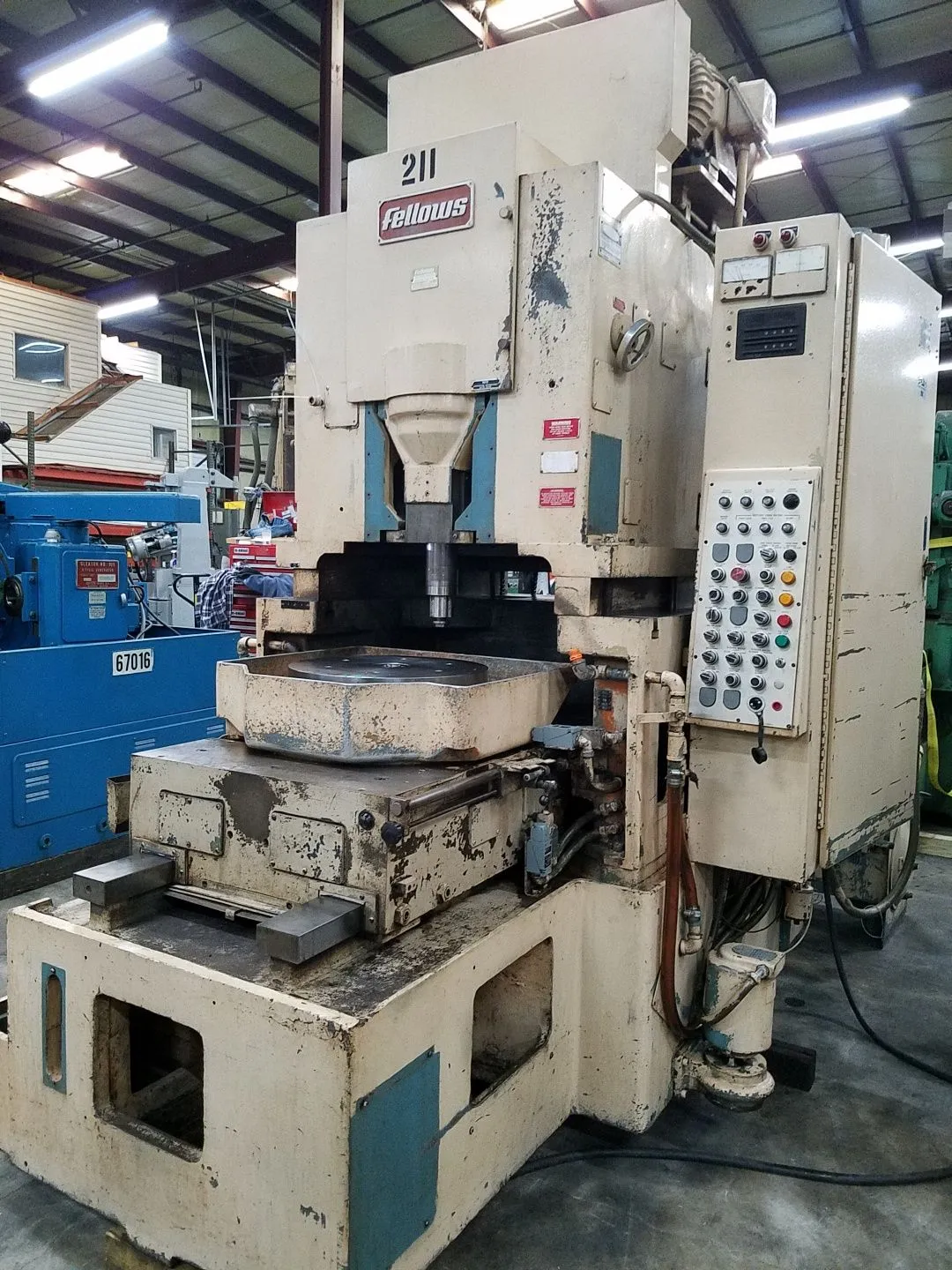

USED FELLOWS 20-4

Fellows Model 20-4 Gear shaping machine, 20" max diameter, 4" stroke, 4" riser , inspect under power in our statesville NC plant. Machine will be gone through prior to shipping and painted . contact us today for full quotation and specifications

Fellows vertical gear shaper
MOdel 20-4
s/n 35133
very good condition

Machine Specifications:
Max pitch diameter (External)...........................................20"
Max pitch diameter (Internal)...........................................20"
Max face width, external & internal......................................4"
Max diametrical pitch spur............................................4 DP
Max diametrical pitch helical.........................................5 DP
Bore through work spindle............................................9.055"
Cutter spindle diameter..............................................3.543"
Max helix angle with special guides.................................45 deg.
Distance between work table & cutter spindle (w/no riser)...............12"
Dimensions (L x H x W)......................................126"x 117"x 70"
Machine net weight, approx......................................18,000 lbs.

MACHINE is EQUIPPED WITH:
Spur Guide
4" Riser Assembly
20" table diameter
Machine Guarding
Hydraulic Unit
1 Cutter Adapter
Misc. Change Gears

Machine can be inspected in our NC plant under power and in excellent condition
after being Gone through

check out our website for this machine and gear machinery at WWW.PiselliEnt.com

or contact rich at piselli Enterprises [email protected] to set up inspection
or receive a formal quote
