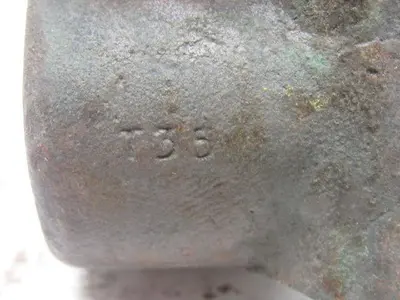

T&B Thomas & Betts Double Barrel Lug Connector For Conductor 500-750

These Are Bronze 2 Screw Mechanical Lugs For Wire Size 500-750 MCM
Actual Dimensions Of Conductor Are As Follows:
ID Of Lug Holes Is Approx. 1"
Depth Of Lug Body Is 1.5"
Width Of Lug Body Is 3"
Mounting Holes Are 9/16"
Thickness OF Mounting Tab Is 7/16"
Width Of Mounting Tab Is 4" X 4"
Set Screw Studs Are 3/4"
Voltage And Amperage Rating Is UNKNOWN!
Weight Is 3.6bs
