Used

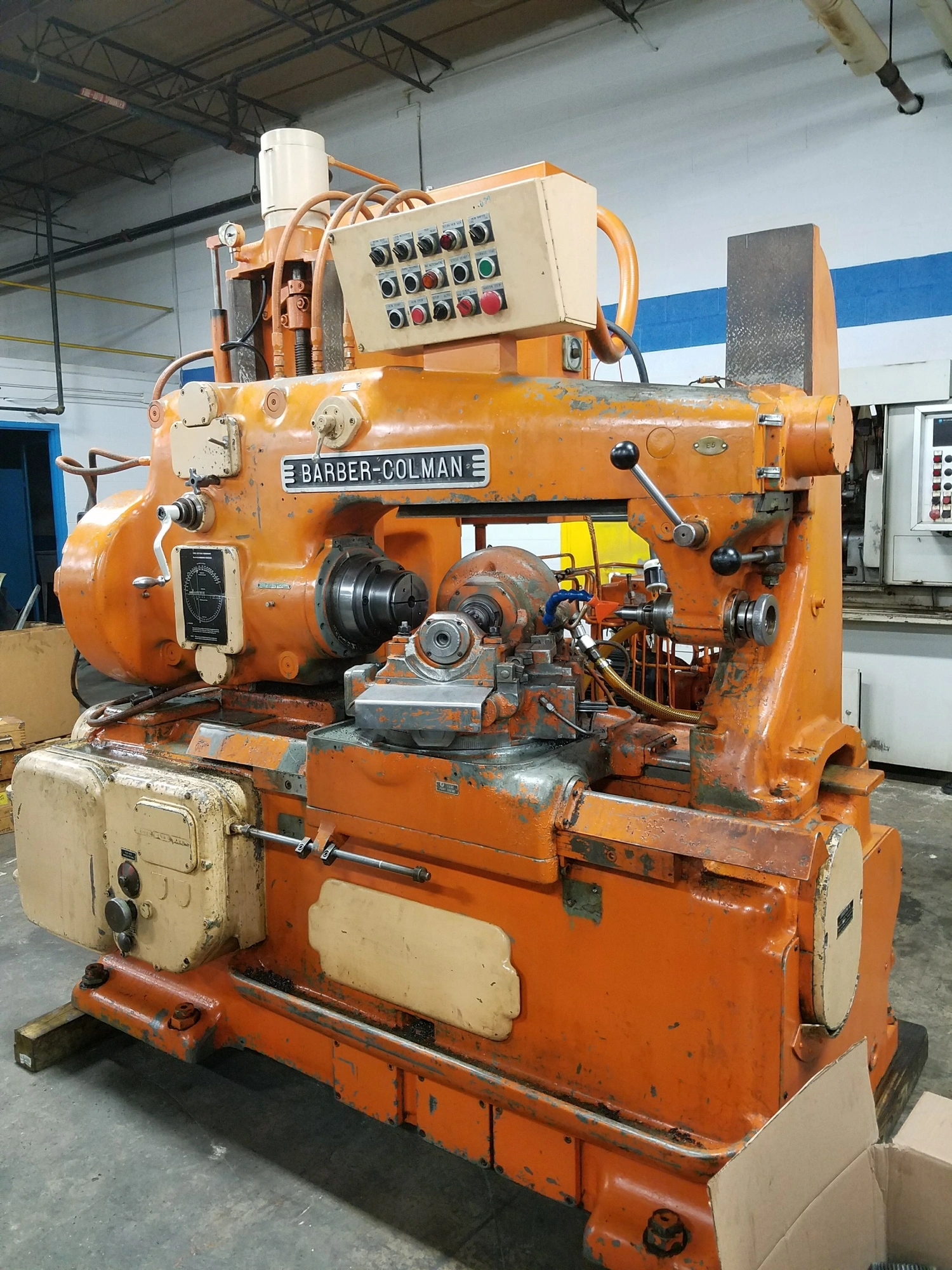

USED BARBER COLMAN 14-15

North Carolina, United States
330Listings|19Followers
Overview
Gear Hobbers

Barber Colman Model 14-15, 14" Diam Capacity, 15" cut length, Hydraulic clamping, collet fixture, Differential, Very Nice Condition, SN 1396, inspect under power in NC.

Specs

Barber Colman horizontal hobber
Model 14-15
s/n 1396

Machine is in very good running contition , standard style machine

Machine catalog specifications are as follows:

MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter..............................................14"
* Max. Hob Diameter..................................................5-1/2"
* Max. Pitch......................................................3-1/2 DP
* Max. Work Face........................................................14"
* Max. Travel of Hob Slide..............................................15"
* Machine Electrics.........................................440/3/60 Cycle
* Machine Weight................................................11,000 lbs.

MACHINE IS EQUIPPED WITH:
* Change Gears
* 1 Hob Arbor
* Differential
* Chip conveyor
* Tailstock
* Auto Cycle
* V-ways
* 3c Collet fixture with Part Clamping
* Manual

Machine can Be inspected in our North Carolina plant under power in very
good condition. contact us at www.pisellient.com to request a formal
quote in line or call or emaill [email protected] to come see under power

thank you
rich Piselli
704 609-0766
