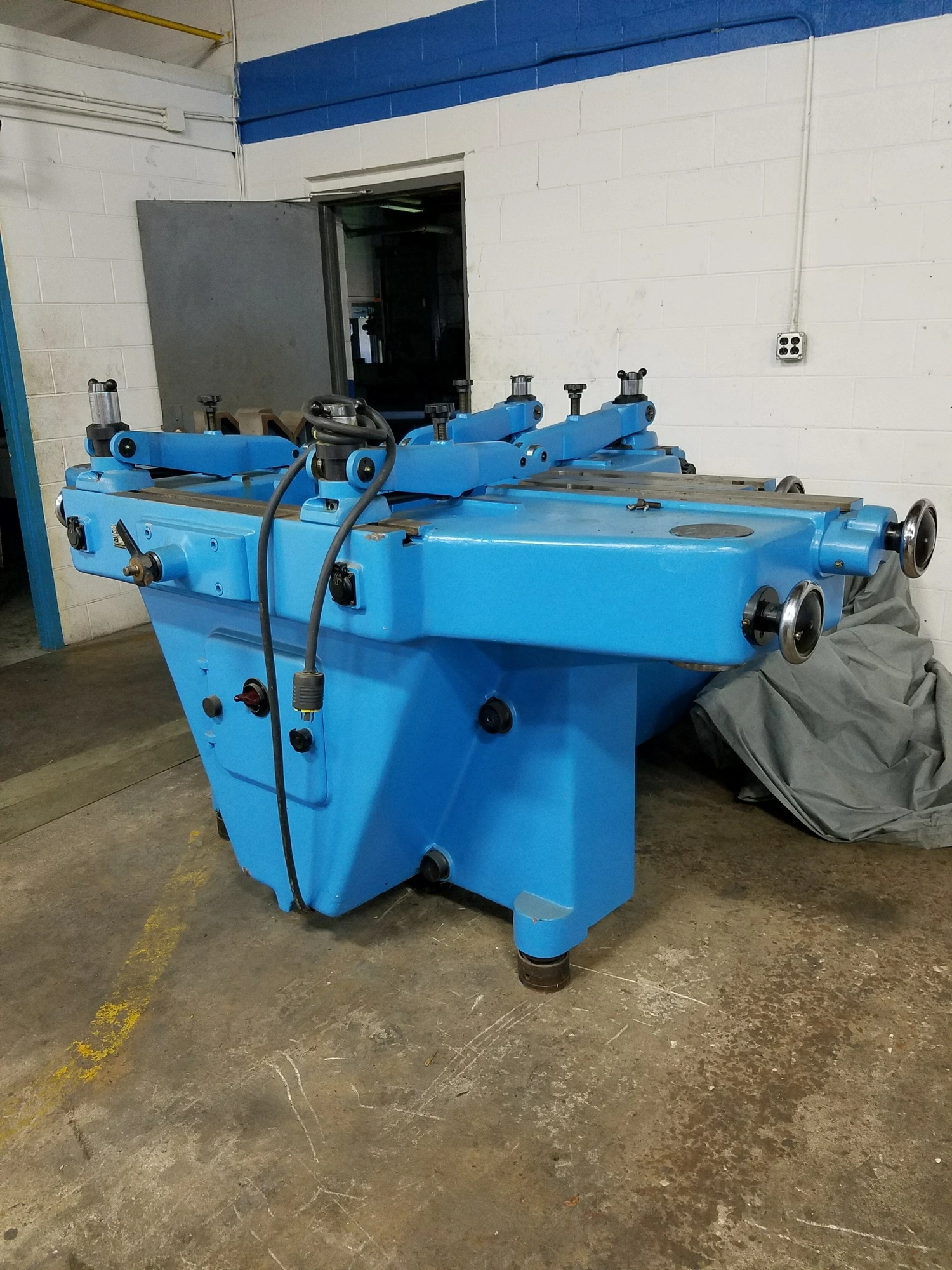

USED SCHOPPE & FAESER 126

Machine is designed to Roll Check large Gears & Gear Sets for Run Out and
Patterning.
The machine easily Adjusts Height and center distances to check your Gears
using multiple manually Adjusted Axis.

Machine specifications are as follows:

Machine can check gear sets in Four (4) different Ways.

1- Gears & Sets Checked Vertically
Between Centers
Maximum Diameter.....................................................1000mm
Maximum Center Dist between 2 gears...................................950mm

2- Gear & Sets Checked Vertically
On Bearing Rollers
Maximum Diameter.....................................................1100mm
Maximum Center Dist between 2 gears...................................950mm

3- Gears & Sets Checked Horizontally
Gears Checked Flat
Maximum Diameter.....................................................1800mm
Maximum Center Distance..............................................1600mm

4- Gears & sets Checked Horizontally
Gears checked Flat
Maximum Diameter.....................................................2000mm
Maximum Center Distance..............................................1280mm

This unique machine can be operated in both motorized and manual operation
using vernier scales and indicators. Simple readouts can be added as well
very easily.

Operator training and instruction is also available locally.

Machine is available for immediate purchase and is located in our facility
in Statesville, NC.

Note: some Indicators on machine are old and may need replacing.
