USED FELLOWS 8AGS

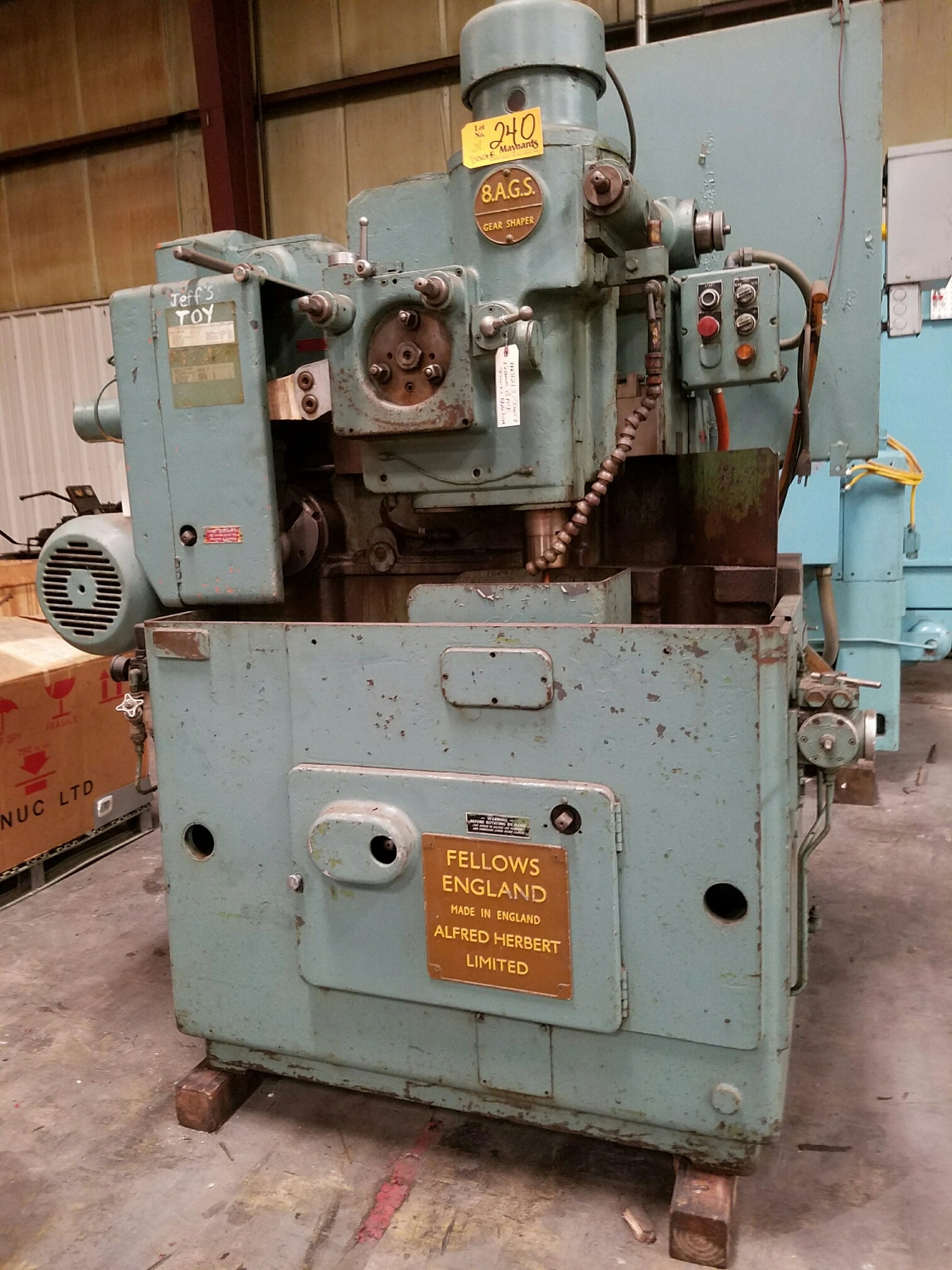

Fellows Model 8AGS Vertical Gear Shaper, 8" diameter, 2" face width. internal attachment nice Condition.

Fellows Gear Shaping machine
Model 8AGS
s/n will advise

Machine Specifications

Max. pitch diameter......................................................8"
Max. Face Width...........................................Ext. 2" Int. 1.5"
Max. Diametral Pitch....................................30 Brass. 40 Steel
Max. Helix Angle.............................45 Degrees (with proper guide)
Strokes per min.......................................400, 700, 1200, 2000
Floor Space.....................................................2'8" & 2'3"
Net. WT...........................................................1300 lbs
Motor 1/2 hp..............................................208/220/440/3 ph.

MACHINE IS EQUIPPED WITH:
Spur Guide
Cutter Adapter for Shank Style Cutters
Precision Work Table Fixture
Misc. Change Gears
Tooling Available

Machine can be inspected under power in Statesville NC with Proper Notice
