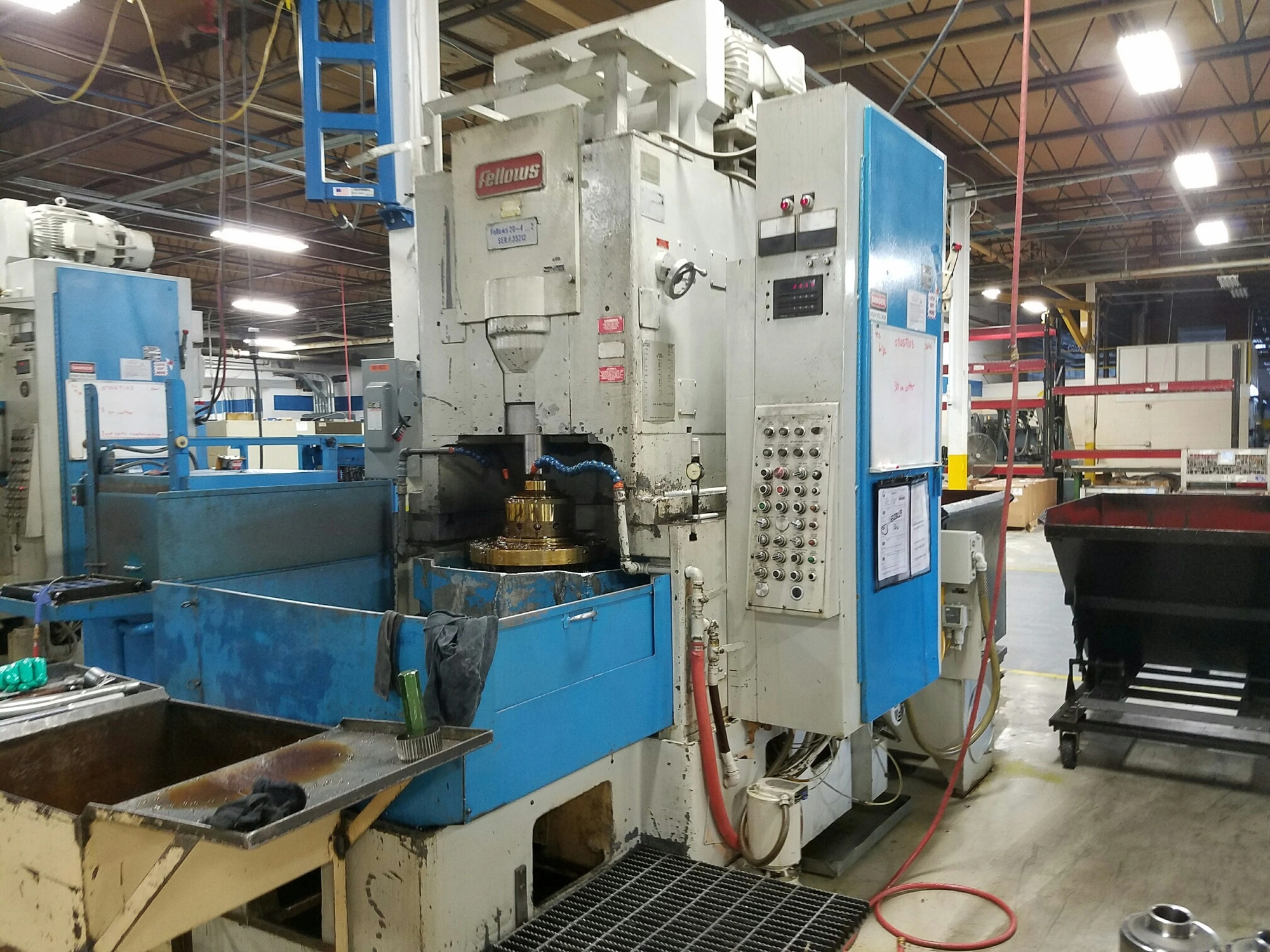

USED FELLOWS 20-4

Fellows Model: 20-4 Gear Shaper, 20" Dia., 4" Stroke, 11" riser, Cutter positioning, 2-available, Machines can be inspected in plant under power with proper notice (2 available)

Fellows Vertical gear shaping machines
Model 20-4 Machine s/n's are: 35261 & 35212
2 available in stock

these machines can be ready for inspection under power with
proper notice . machines were running in a shop in NC prior
to bringing into our warehouse

Machine Specifications:
Max pitch diameter (External) 20"
Max pitch diameter (Internal) 20"
Max face width, external & internal 4"
Max diametrical pitch spur 4 DP
Max diametrical pitch helical 5 DP
Bore through work spindle 9.055"
Cutter spindle diameter 3.543"
Max helix angle with special guides 45 deg.
Distance between work table & cutter spindle w/no riser 12"
Dimensions (L x H x W) 126"x 117"x 70"
Machine net weight, approx 18,000 lbs.

MACHINES ARE EQUIPPED WITH:
Spur Guides
11" Riser Assemblies
20" maximum clearance height above table!
20" table diameter
Machine Guarding
Hydraulic Unit
1 Cutter Adapter
Misc. Change Gears

Machine s/n's are: 35261 & 35212

Inspect Both Machines Under Power in Plant in good Operating Condition!
contact rich Piselli at [email protected] and receive a formal quote
and pricing . or visit www.pisellient.com to see more of our Gear machine
inventory
