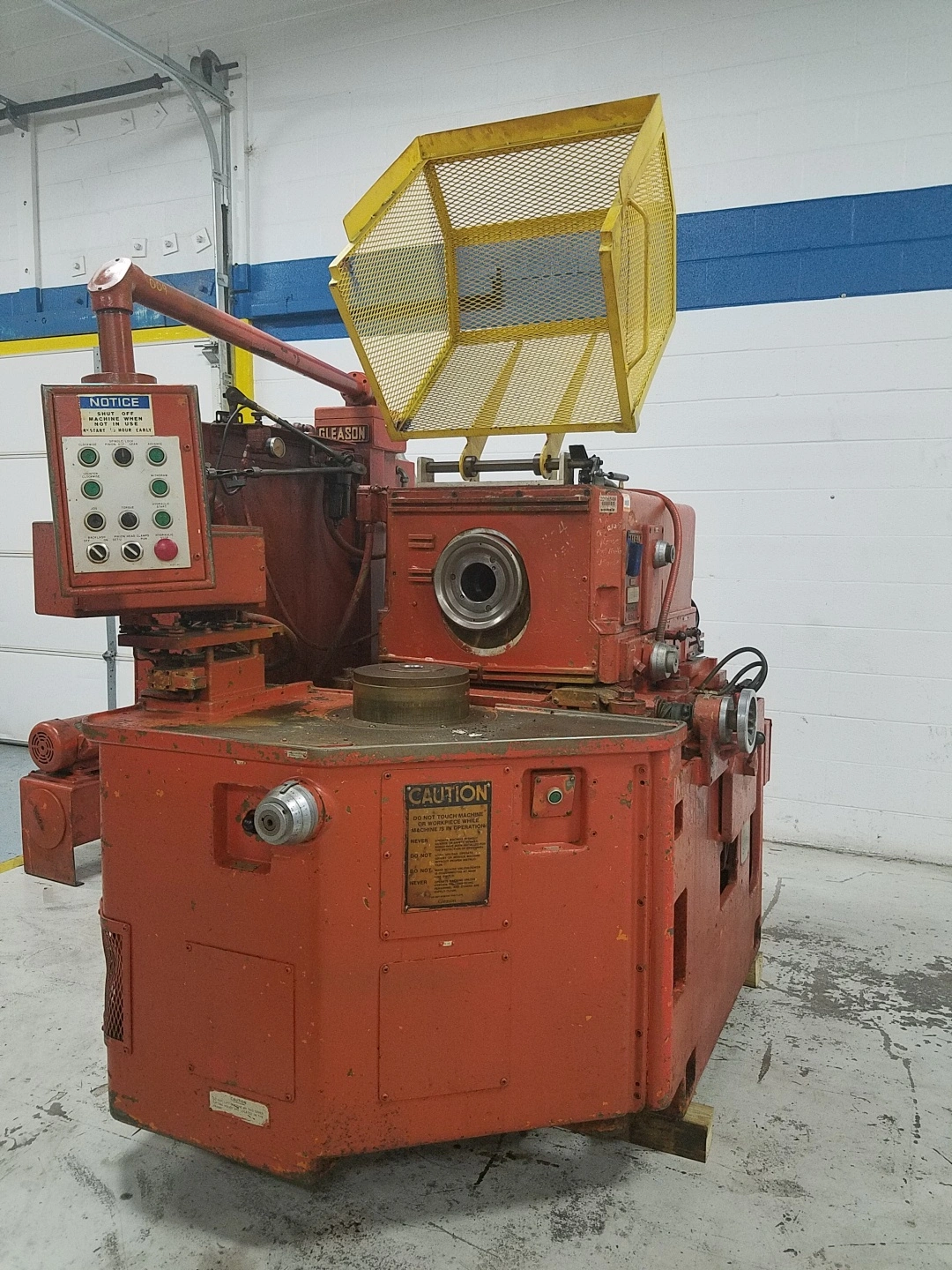

USED GLEASON 512 HYPOID TESTER

Gleason Hypoid Bevel Gear Tester
Model# 512 Automatic tester
S/N 702808

Machine was purchased from an Off-Highway customer whom had shut down their
plant. Machine is in very good running condition and can be inspected under
power in our shop.

GLEASON 512
MACHINE SPECIFICATIONS
CAPACITY
Gear outside diameter (maximum).......................................508mm
Pinion outside diameter (maximum).....................................254mm
Offset of pinion spindle L or R of gear spindle center (max)........101.6mm

PINION SPINDLE
Diameter of taper hole at large end.................................3-29/32"
Taper per foot........................................................39/64"
Depth of taper............................................................3"
Diameter of hole at small end.........................................3.740"
Depth of hole at small end from face of spindle........................15.5"

GEAR SPINDLE                                          Standard    Large Bore
Diameter of taper hole at large end....................2-19/64".....3-29/32"
Taper per foot.............................................1/2".......39/64"
Depth of taper...............................................3"...........3"
Depth of hole at small end...............................2.168".......3.740"
Depth of hole at small end from face of spindle..............8"...........7”

Machine Is Equipped with the following
Safety Guarding when operating
control pendant
hydraulic clamping
forward and reverse cycles
hydraulic unit
Electrical panel attached with operator pendant control

This machine can be inspected under power with proper notice
please contact us today to see this machine and other gear machines in our
NC facility.
