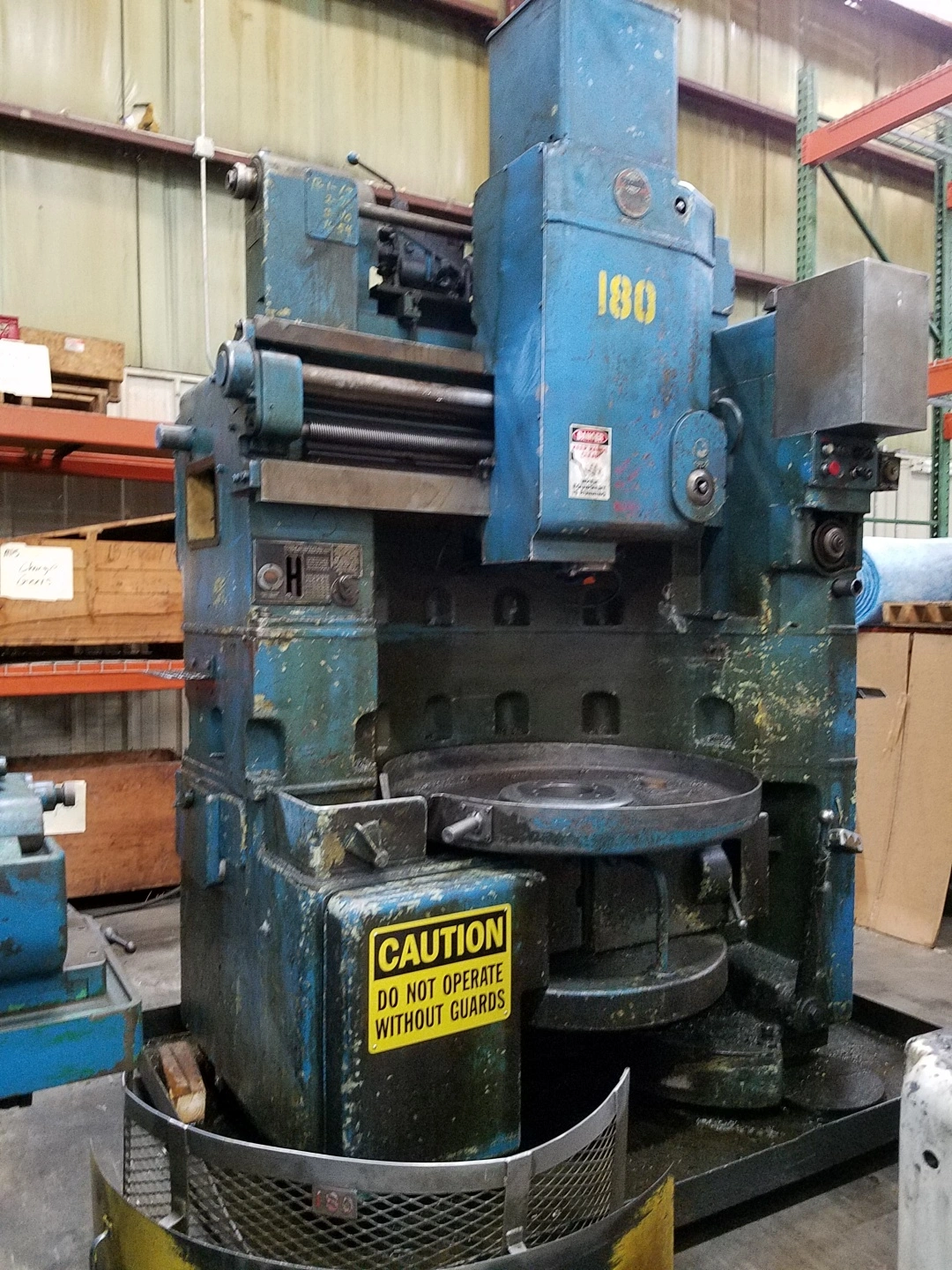

USED FELLOWS 36-12 20" RISER

FELLOWS 36-12 Gear shaping machine, 40" diameter, 12" stroke, 20" Riser assembly, 3 DP, change gears, inspect under power in the Statesville, NC facility.

Fellows Long stroke Gear shaping machine
Model 36-12 s/n 26740
Equipped with 20" Riser assembly

This machine was removed from Running service and can be inspected in our
Statesville facility under power, this Hi rise Machine allows you to utilize
the full stroke capacity of the fellows style 36 Gear shaper. the 12" long
stroke option is a must for any job shop.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................40"
* Maximum Face Width.....................................................10"
* Stroke Length..........................................................10"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 120"H
* Machine Weight, Approx.........................................23,000 Lbs

Machine Is Equipped With:
12" Extended stroke option
20" Riser
Cutter Elevation
Pendent control
5" spindle diameter
Misc. Change Gears
1 Cutter Adapter

Machine can be inspected under power with proper notice. Additional adaptors
can be purchased. send us your part prints to confirm what you require on
this machine.
