USED FELLOWS 36-6 17" THROATED RISER

FELLOWS Model 36-6 Gear Shaping Machine , 40" max diameter, 6" Stroke, 3 DP, 17" throated riser 48" Max swing, misc tooling change gears , etc., inspect in NC.

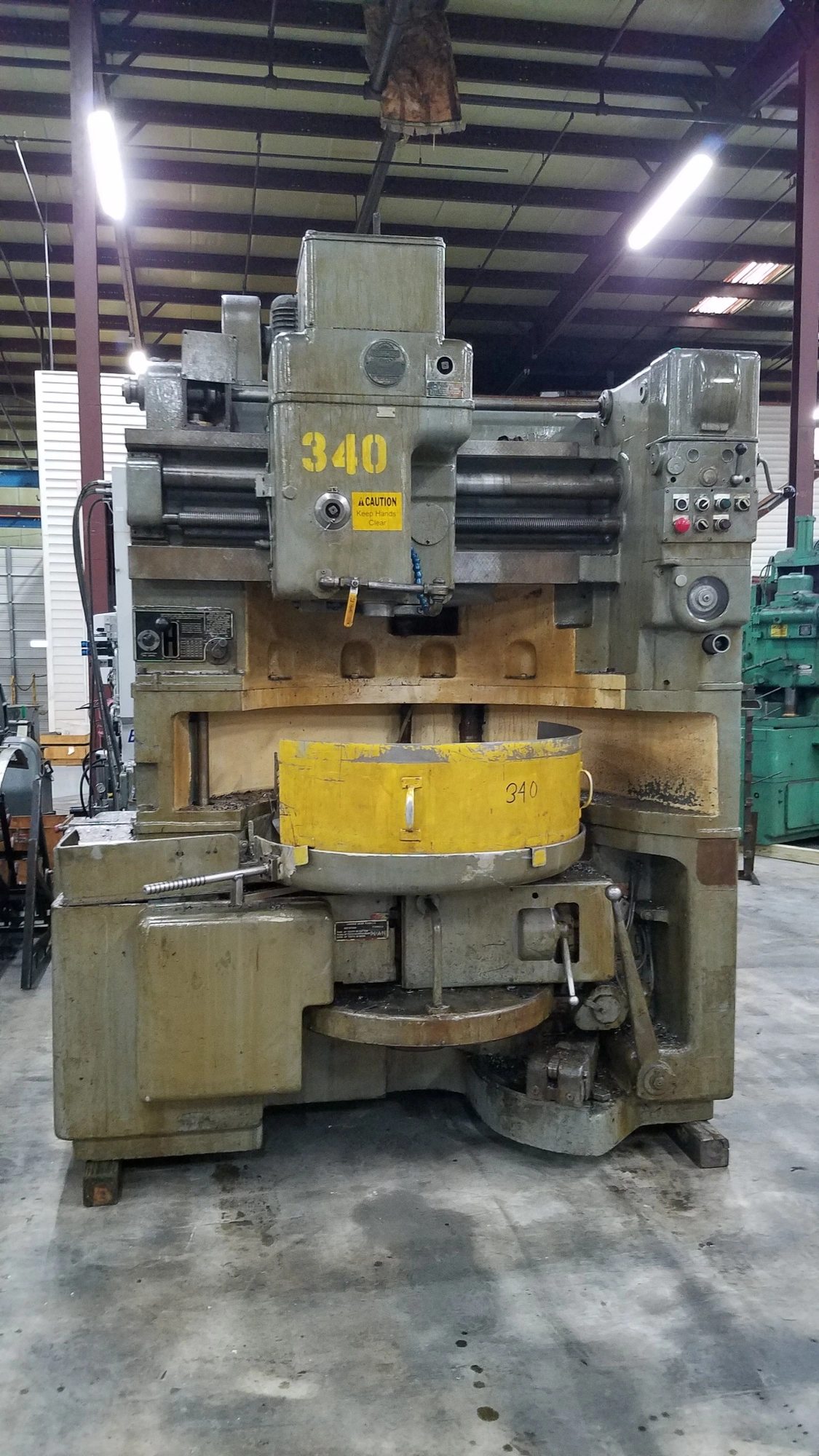

FELLOWS Gear Shaping Machine
Model 36-6, S/N 31413
with 17" throated riser

This fellows gear shaper is equipped with a 17" throated Riser which allows
you to swing a part roughly 48" in diameter while cutting an internal or
external gear.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................48"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 120"H
* Machine Weight, Approx.........................................20,000 Lbs

Machine Is Equipped With:
17" Throated Riser Assembly for larger swing capacity
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
Machine Guarding

Machine can be inspected under power with proper notice. Additional adaptors
can be purchased. Send us your part prints to confirm what you require on
this machine.
