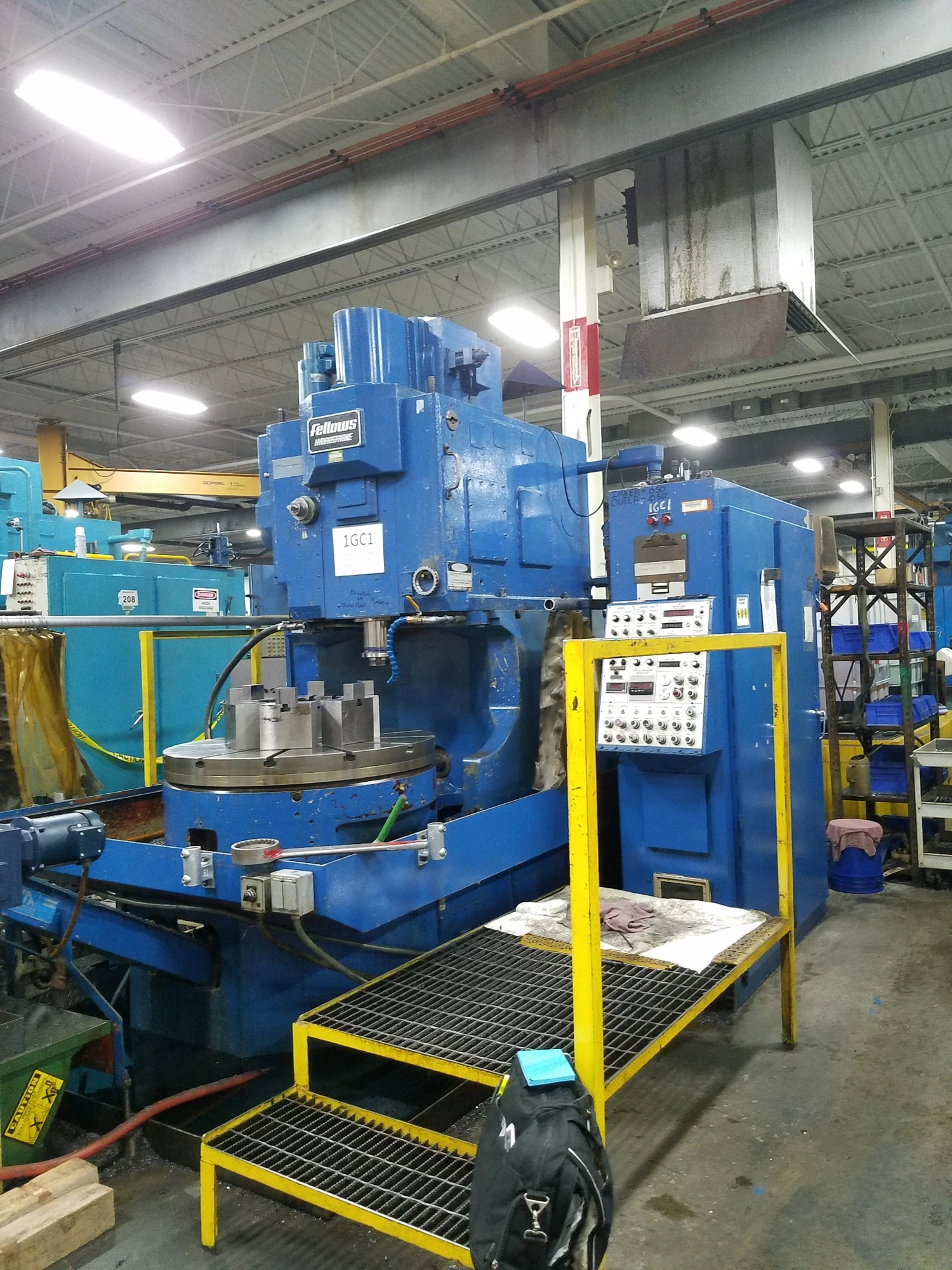

USED 1977 FELLOWS 50-8 HYDROSTROKE

Fellows Model 50-8 Hydrostroke Gear shaper, 50" max diameter with 9" max stroke and 8" maximum face width, 45" Diameter Table, 19" clearance Height, Excellent in shop under power. Note Has been moved to our warehouse!!!

Fellows Model 50-8 Hydrostroke Gear shaping machines
s/n 35833,
NEW 1977

This Heavy Duty Gear shaping machines can be inspected in our statesville
NC plant with proper notice .

Machine Specifications are as follows:
Max External Gear.......................................................50"
Min External Gear....................................7.08" Minus cutter OD
Max Internal Gear.............................51.8" Minus 2x Rim thickness
Min Internal Gear.....................................7.28" Plus cutter OD
Max Pitch gear........................................................2 DP
Max Stroke length........................................................9"
Max Face capacity........................................................8"
Max clearance Height....................................................19"
Spindle Diameter.......................................................5.5"
Center Distance Max/Min.......................................30.9" / 3.55"
Table Diameter..........................................................44"
table Bore Diameter...................................................11.2"
floor space............................................12' wide x 18' Deep

Machine weight approx...........................................45,000 lbs
Machine floor space....................................12' wide x 18' long

Machine is equipped with the following:
Control panel
Cutter adaptor
Chip conveyor
Coolant tank
Change gears
Misc tooling
Books, Manuals & Electrical

The machine was producing good quality gears. call to set up an
inspection.

Note
Machine has been moved to our warehouse in NC. contact rich piselli
at [email protected] for more information or to set up inspection ,
visit our website to request a formal quote on line with pricing . type
www.pisellient.com and search fellows 50-8!!!
