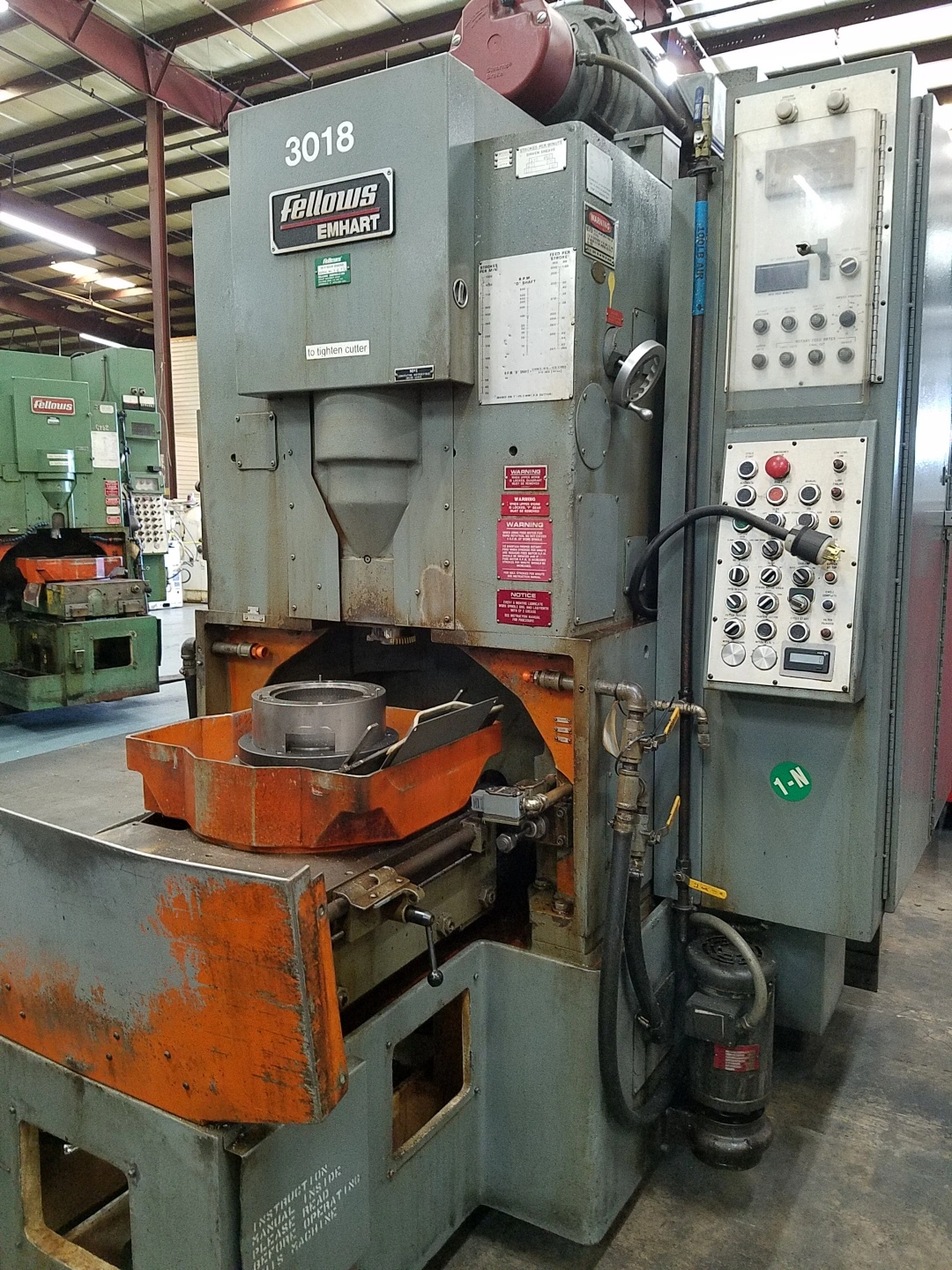

USED FELLOWS 10-4

Fellows model 10-4 Gear shaping machine, 10" diameter, 4" stroke capacity, Cutter at top, A/B PLC 2 control, Plumbed & wired for a tailstock, new cutter spindle & Bushing inspect in NC.

FELLOWS Gear shaping machine
Model 10-4,  S/N 36790

Machines are to be gone through by Piselli Enterprises and delivered in
excellent working condition. Machine will be equipped with new Cutter
spindle & bushing. Contact us regarding the work to be done on these
machines and checked for accuracy.

Machine specifications are as follows:
Max. External & Internal Pitch Dia.......................................10"
Max. Face Width, External.................................................4"
Max. Diametral Pitch, Spur.............................................4 DP
Max. Diametral Pitch, Helical..........................................5 DP
Bore through work spindle.............................................5.875"
Spindle Diameter......................................................3.543"
Distance between work table and cutter spindle...........................10"
Max. Helix Angle with Standard Guides............................45 degrees
Max. OD of Fixture.......................................................19"
Dimensions..............................................119"L x 97"H x 53"D
Approx. weight...................................................11,000 lbs.

MACHINE IS EQUIPPED WITH:
A/B PLC-2 Control
0" Riser
4" Stroke Capacity
Cutter at Top
Hydraulic Tank
1 Cutter Adapter
Misc. Change Gears

Note: Machine has been plumbed and wired for Tailstock

Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program.
