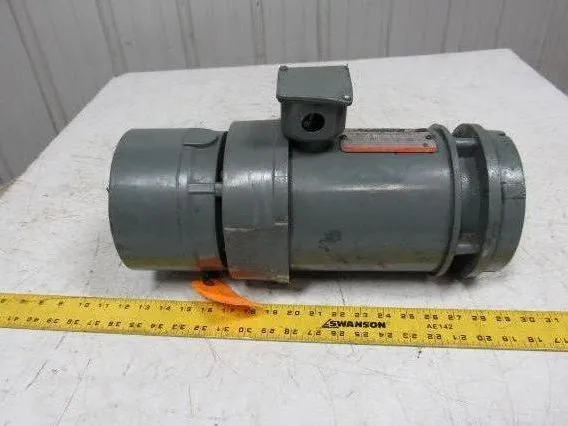

Reliance B77S377OM Type P Brake Motor 3/4 Hp. 1725 RPM 230/460V 60Hz Spline Gear
USD $222.29
Overview

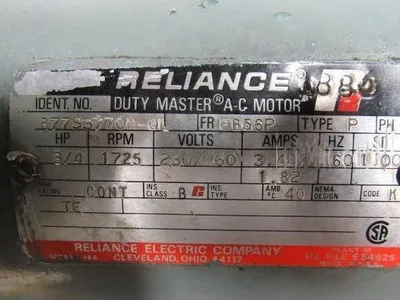

Specifications
Horse Power: 3/4
RPM: 1725
Phase: 3
Voltage: 230/460
Amps: 3.44/1.82
Hertz: 60
Nema Frame: FB56P
Output Shaft Size: 5/8" Bearing Female Spline Gear
Enclosure: F
Service Factor: 1.00
Rating: Cont
Insulation Class: B
Amb. Temp(Degree C): 40

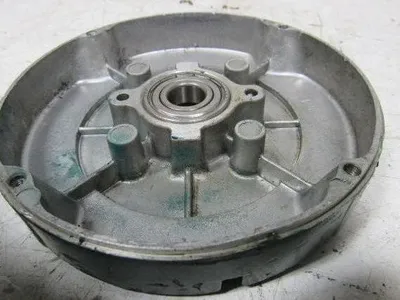

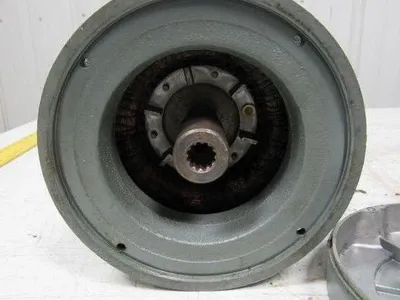

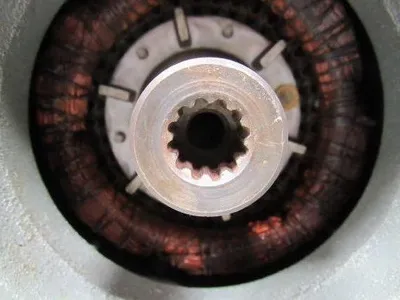

Output Shaft Has A Bearing With 5/8" ID. There Is A 12 Point Female Spline Gear Under Bearing Cover, See Photos

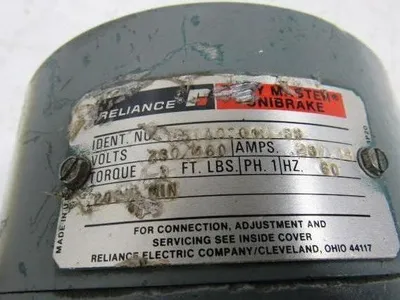

Equipped With Duty Master Unibrake: 3 Ft/Lb. Torque 230/480V .28/.14A 60Hz. Single Phase. Has Manual Release
