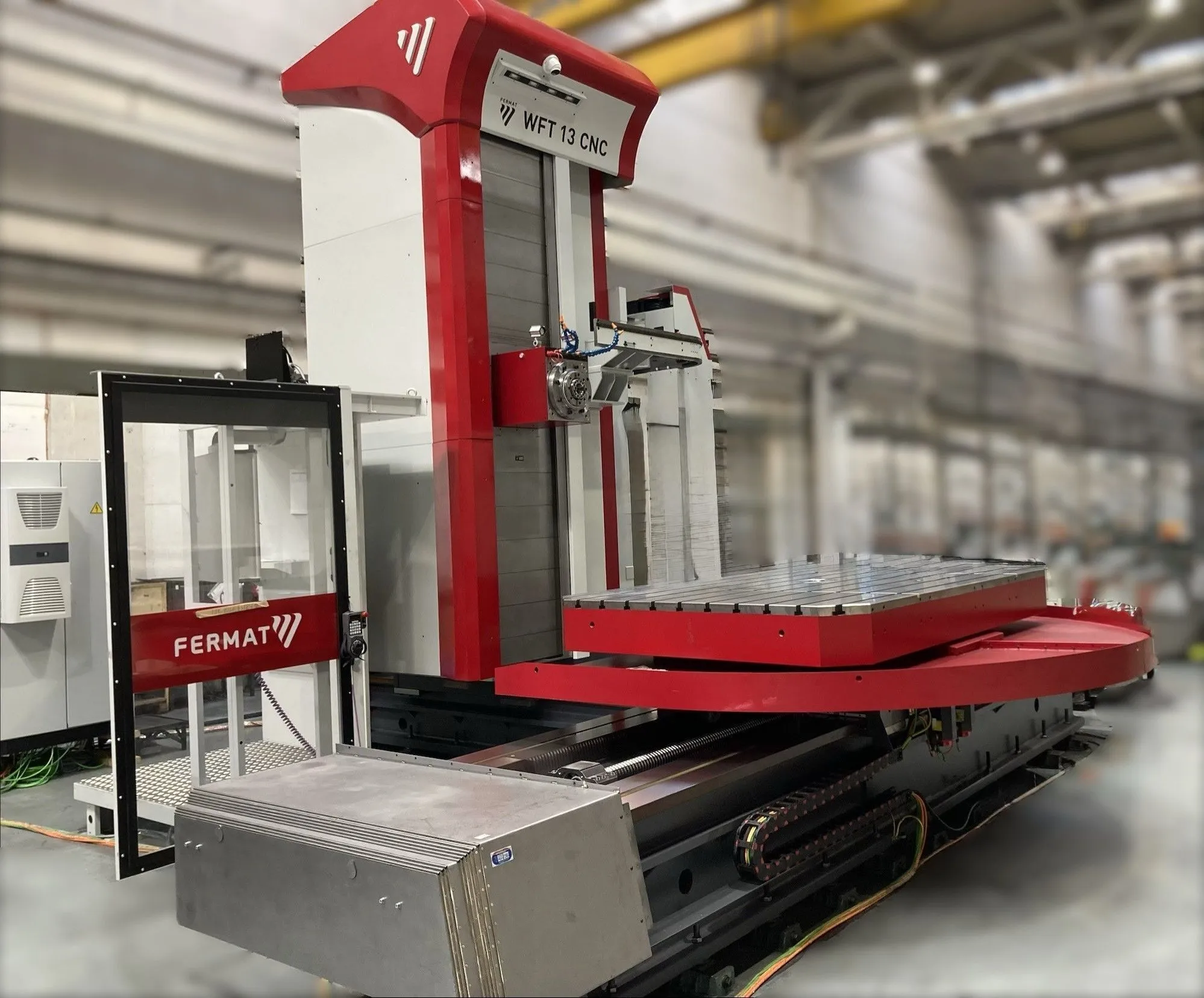

This is FERMAT's most popular table-type horizontal boring mill capable of high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 20 tons.
Spindle diameter 130 mm or 110 mm; spindle travel 800 mm.
Powerful and precise milling, coordinate drilling, boring, and threading.
Reach out TODAY for a proposal that meets your requirements.
| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 157.5" | 4,000.5 mm |
| Y-Vert Tvl of Head | 98.4" | 2,499.4 mm |
| Power | 54.9 hp | 40.9 kW |
| RPM | 3,400 RPM | 3,400 RPM |
| Table-W | 70.9" | 1,800.9 mm |
| Table-L | 102.4" | 2,601 mm |
| Spindle Tvl. | 31.5" | 800.1 mm |
Additional Specs in Media Images
