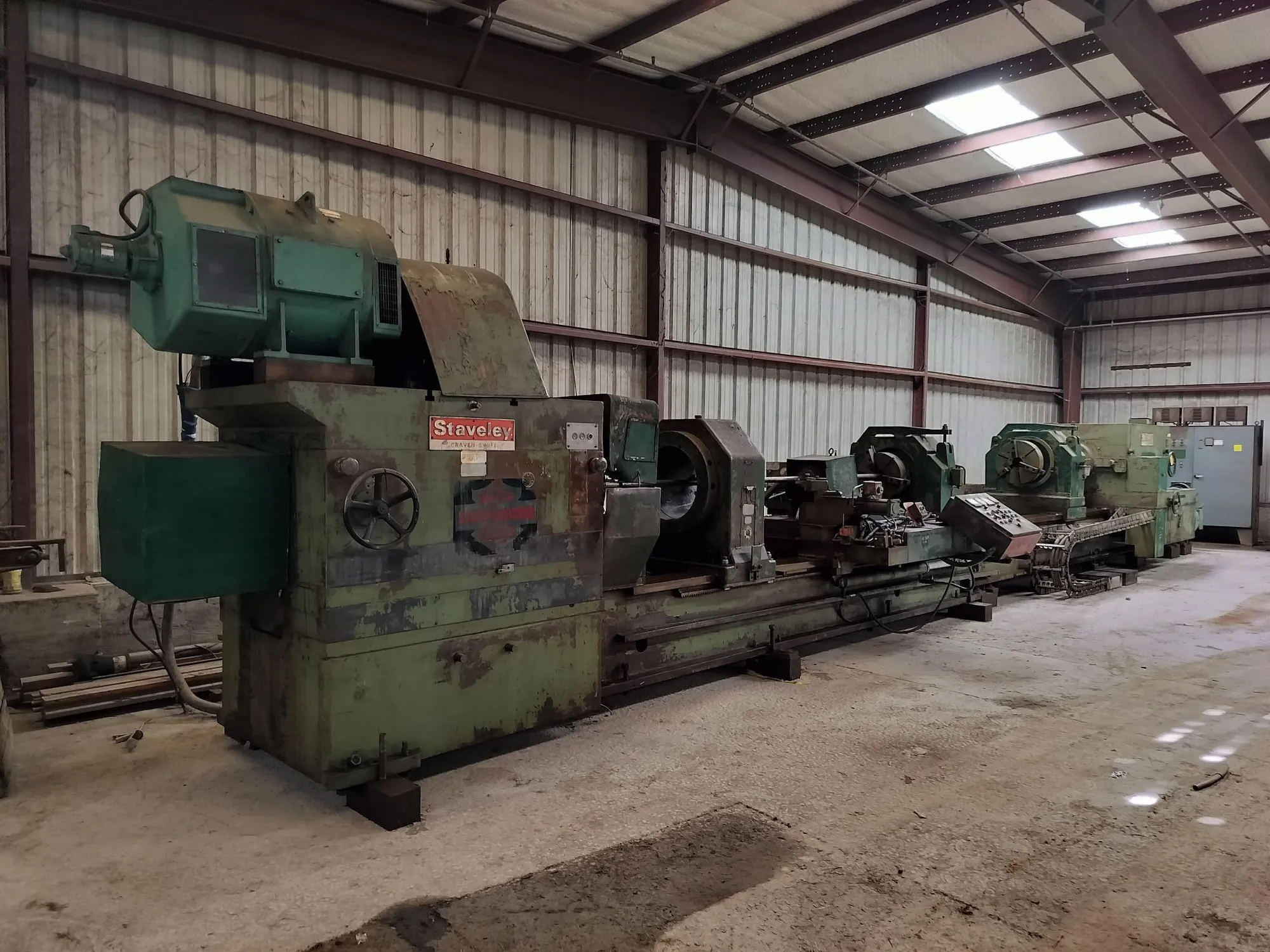

USED CRAVEN CRS.D.H.

CRAVEN-SWIFT 480/240" COUNTER ROTATING BTA 50" SWING DEEP HOLE DRILL, BTA, TREPANNING

STAVLEY CRAVEN SWIFT 240” COUNTER ROTATING DEEP HOLE BORING / TREPANNING MACHINE

MACHINE LOCATED IN DALLAS, TX 75241

THIS IS A MODERN 80'S OR NEWER MACHINE

MAKE: STAVELEY CRAVEN-SWIFT
TYPE: 244" CRS.D.H.
S/N: 19022
CRAVEN BTA DRILL
HUGE COUNTER ROTATING DEEP HOLE DRILL
TREPANNER
SWING: 50"
OVER THE CROSS SLIDE: 28"
WIDE BEDWAY: 35"
SPINDLE BORE: 6"
BORING DEPTH 1 PASS: 240"
TOTAL BORING DEPTH: 480"
BORING HEAD TRAVEL: 247"
100 HP MOTOR
15 HP BAR ROTATION
60 HP EJECTOR COOLANT SYSTEM

MAIN MACHINE WEIGHT: 105,000 LBS
COOLANT TANK: 6,000 LBS
ELECTRICAL CABINET: 1,000 LBS
COOLANT PUMP AND MOTOR: 3,000 LBS
HYDRAULIC CART: 200 LBS

PRICE: $29,500.00
LOCATION: DALLAS, TX 75241

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
