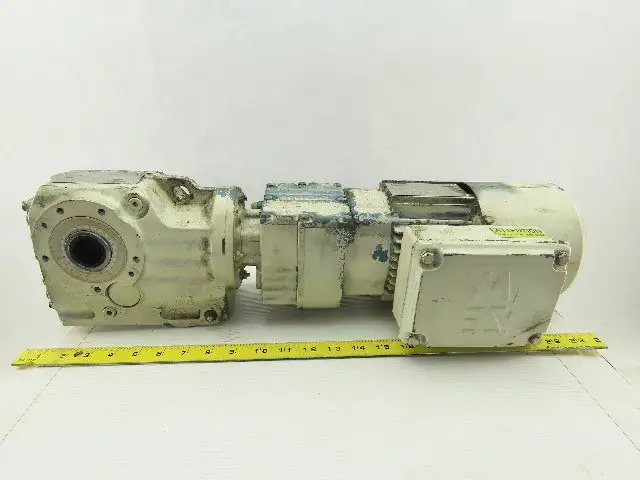

Sew Eurodrive KH37R17DT71K4BMG05HR 1/4Hp 267:1 Gear Motor 277/480V 3Ph

Gear Ratio  267.00
 Output Speed  1.1-6.7
 Shaft Diameter  30SHR
 Out Torque (lb-in)  2289
 Gear S.F.  0.80
 Motor HP  .25
 Motor Voltage  230YY/460Y
 Frequency  60
 Motor Amps  1.10/.55
Insulation Class  F
 Brake Rectifier  BG1.5
 Brake Voltage  230AC
