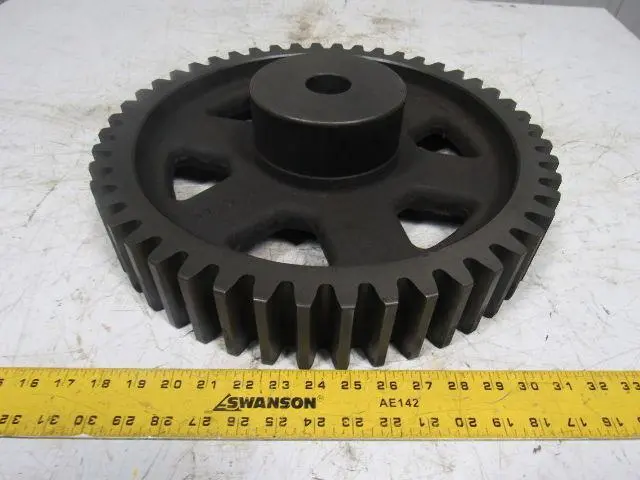

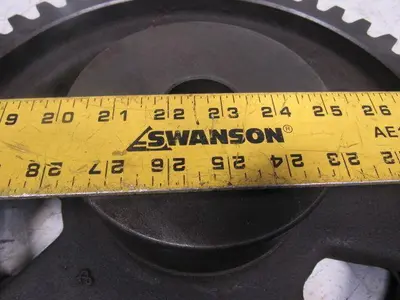

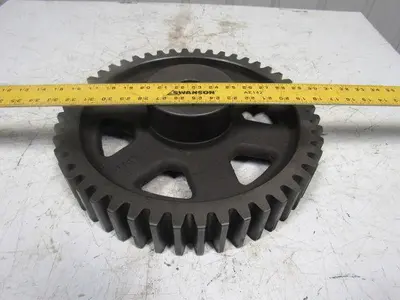

Martin C348 Cast Iron Spur Gear 14.5 Pressure Angle 48 Tooth W/lightened Holes

Bore Type: Reboreable
Class of Gear: 6
Diametral Pitch: 3
Face Width: 3"
Gear Style: B3
Hub Outside Diameter: 5.4845"
Hub Projection: 1.75"
Hub Syle: B
Length Thru Bore: 4.75"
Material: Cast Iron
Max Bore Size: 3.25"
Number of Teeth: 48
Outside Diameter: 16.666"
Pitch Diameter: 16
Pressure Angle: 14.5
Stock Min Bore Size: 1.5625"
Storage Dimension Height: 4.75"
Storage Dimension Length: 16.666"
Storage Dimension Width: 16.666"
Type of Gear: Spur
