USED GIDDINGS & LEWIS MODEL :

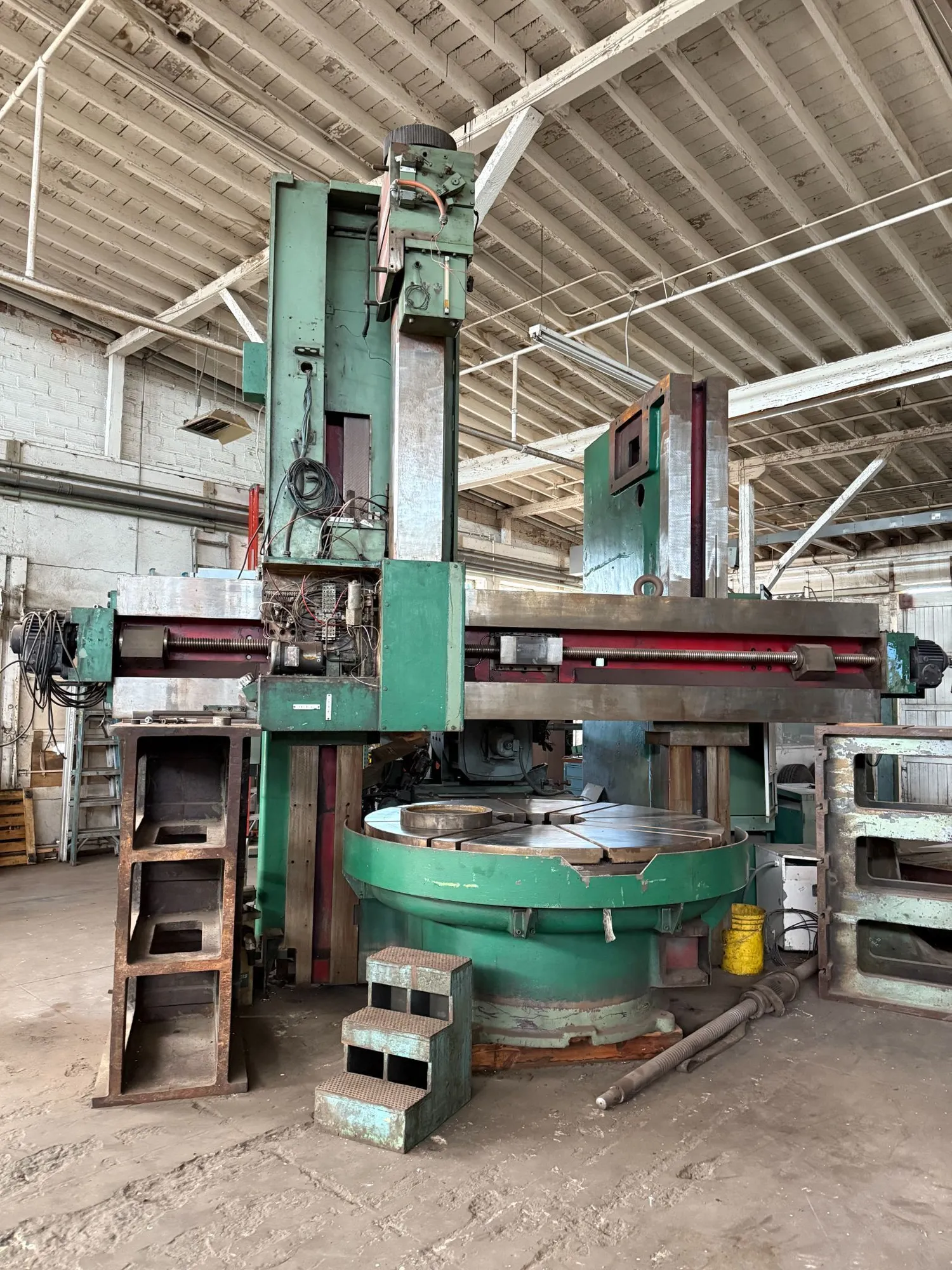

MAKE: G&L (R&D&D) HYPRO DUAL RAM CNC VERTICAL BORING MACHINE
TABLE DIAMETER: 72"
MAX. SWING: 74"
UNDER RAIL: 67"
MAX. HEIGHT UNDER RAIL: 58"
LEFT RAM TRAVEL: 30"
RIGHT RAM TRAVEL: 50"
LEFT RAM MILLING/DRILLING 20 HP
SPEEDS 2 RANGES 5-3000 RPM
MILLING TAPER 50 TAPER
RAM SIZE: 10" X 10"
TABLE MOTOR DRIVE: 75HP
TABLE SPEED RANGE:(2)1-39.3 - 3.4-150 RPM
TABLE DRIVE: GE 300 DC (ADJ.SPD) MAX
TABLE LOAD CAPACITY: 12.5 TONS

DIMENTIONS:
FRONT TO BACK (INCLUDING PLATFORM) 188"
RIGHT LEFT INCLUDING ELECTRICAL BOX: 292"
OVERALL MAX. HEIGHT W/RAMS RAISED: 245"

LOW USE MACHINE-CONTROL OBSOLETE
RAMS AND WAYS IN EXCELLENT CONDITIONS
MILLING & DRILLING LIVE SPINDLE

PRICE: $49,500.00 FOB SANTA PAULA
***SPECIFICATION SHOWN ARE TO BE USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMERS RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING. WE WILL NOT BE RESPONSIBLE FOR ERROR OR
OMISSIONS.***
