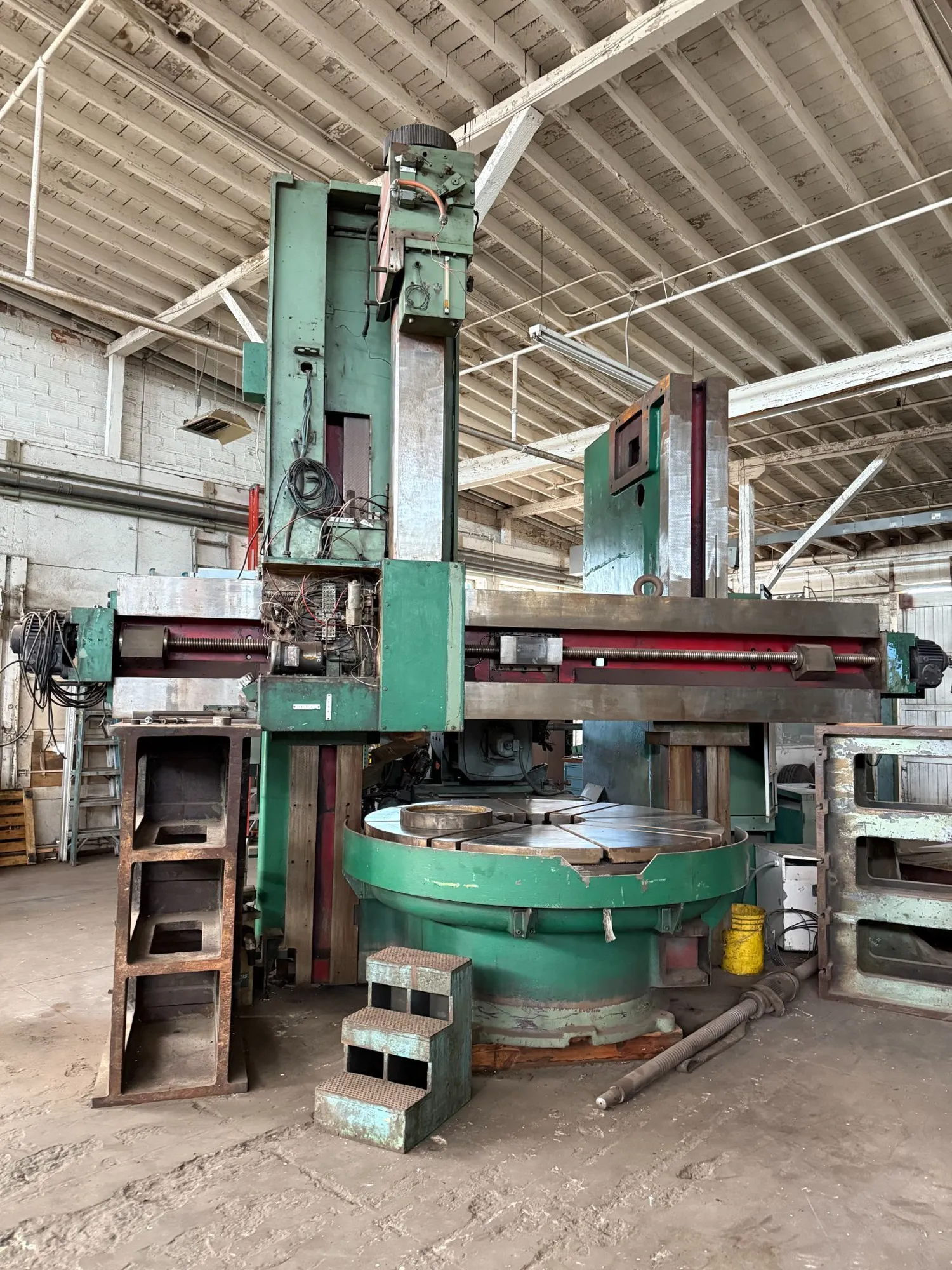

72" G&L CNC CONTROL W/MILLING SPINDLE IN RAM
Overview
Description
72", GIDDINGS & LEWIS CNC CONTROL W/MILLING SPINDLE IN RAM
Specifications
| Table Dia | 72" | 1,828.8 mm |
|---|---|---|
| Swing | 74" | 1,879.6 mm |
| Power | 75 hp | 55.9 kW |
| RPM | 3,000 RPM | 3,000 RPM |
MAKE: G&L (R&D&D) HYDRO DUAL RAM CNC VERTICAL BORING MILL
TABLE DIAMETER: 72"
MAX SWING: 74"
UNDER RAIL: 67"
MAX. HEIGHT UNDER RAIL: 58"
LEFT RAM TRAVEL: 30"
RIGHT RAM TRAVEL: 50"
LEFT RAM MILLING/DRILLING 20HP
SPEEDS 2RANGES 5-3000 RPM
MILLING TAPER 50 TAPER
RAM SIZE: 10" X 10"
TABLE MOTOR DRIVE: 75HP
TABLE SPEED RANGE:(2) 1-39.3 - 3.4-150 RPM
TABLE DRIVE: GE 300 DC (ADJ.SPD) MAX
TABEL LOAD CAPACITY: 12.5 TONS
DIMENSIONS:
FRONT TO BACK (INCLUDING PLATFORM) 188"
RIGHT LEFT INCLUDING ELECRICAL BOX: 292"
OVERALL MAX. HEIGHT W/RAMS RAISED: 245"
LOW USE MACHINE-CONTROL OBSOLETE
RAMS AND WAYS IN EXCELLENT CONDITIONS
MILLLING & DRILLING LIVE SPINDLE
PRICE: $49,500.00 FOB SANTA PAULA, CA
***SPECIFICATION SHOWN ARE TO BE USED A GUIDELINE ONLY. IT IS THE
CUSTOMERS RESPONSIBILTY TO CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.***
