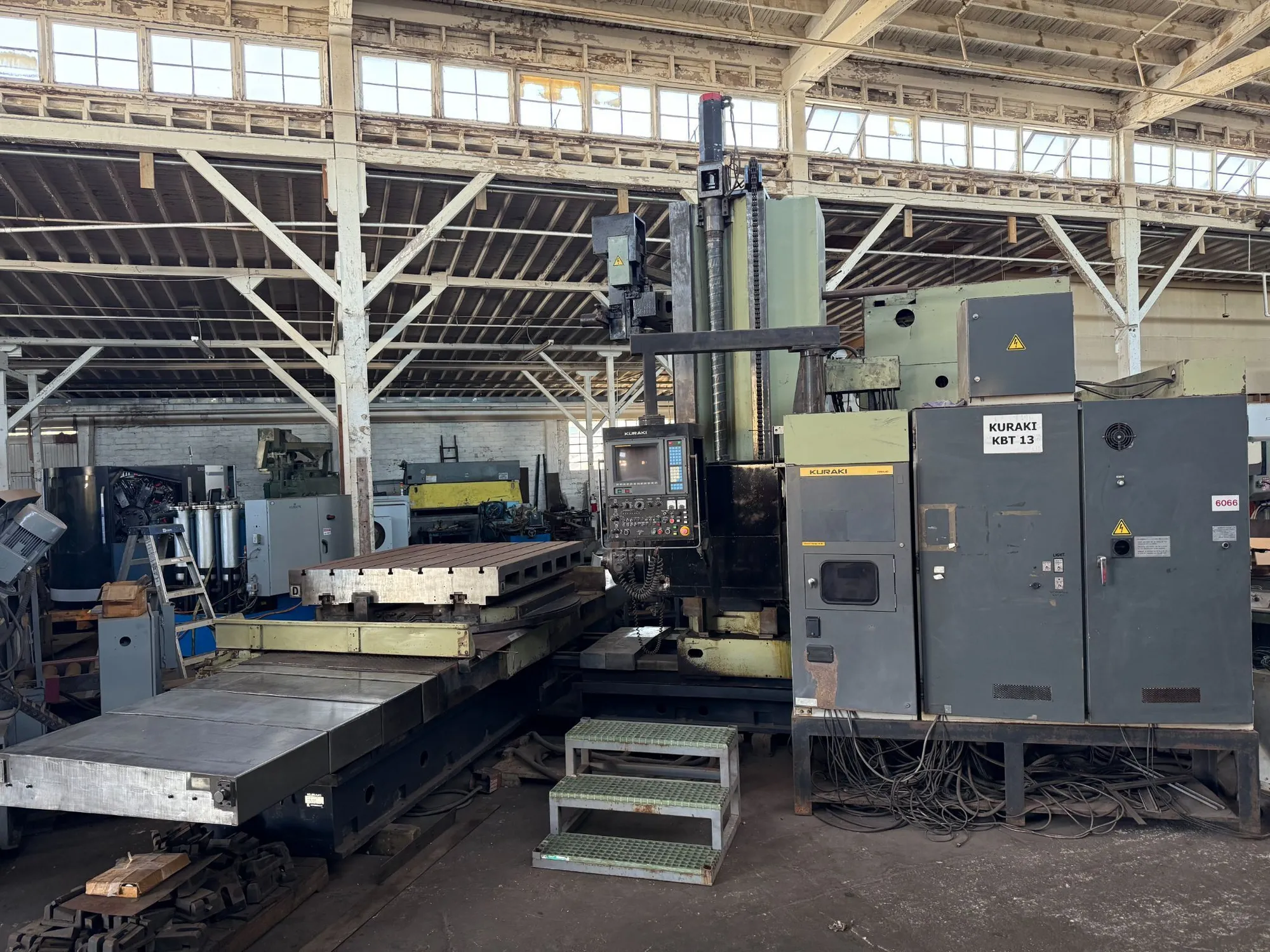

5" KURAKI KBT13-DXA CNC TABLE TYPE HORIZONTAL BORING MILL WITH FANUC 15M CONTROL
| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Table | 129.9" | 3,299.5 mm |
| Y-Vert Tvl of Head | 70.87" | 1,800.1 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Table-W | 62.99" | 1,599.9 mm |
| Table-L | 70.87" | 1,800.1 mm |
| Control | CNC (FANUC 15M) | CNC (FANUC 15M) |
MAKE: KURAKI
MDL: KBT13-DXA
S/N: 1548
YR: 9/1992
SPINDLE DIAMETER: 5.12"
TABLE-L: 70.87"
TABLE-W: 62.99"
MAX LOADING WEIGHT ON TABLE: 22,000 LBS
X-TRAVEL: 129.9"
Y-TRAVEL: 70.87"
Z-TRAVEL: 27.56"
SPINDLE SPEEDS: 5-2000 RPM
SPINDLE MOTOR: 30HP
EQUIPPED WITH:
FANUC 15M CNC CONTROL
60 STATION AUTOMATIC TOOL CHANGER
RIGHT ANGLE HEAD
CHIP CONVEYOR
FLOOR SPACE: 264" X 264"
MACHINE HEIGHT: 187"
MACHINE APPROX WEIGHT: 70,400 LBS
MACHINE LOCATION: SANTA PAULA, CA
PRICE: $59,500.00
**SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY.IT IS
THE CUSTOMERS RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE
RESPONSIBLE FOR ERROR OR OMISSIONS.
