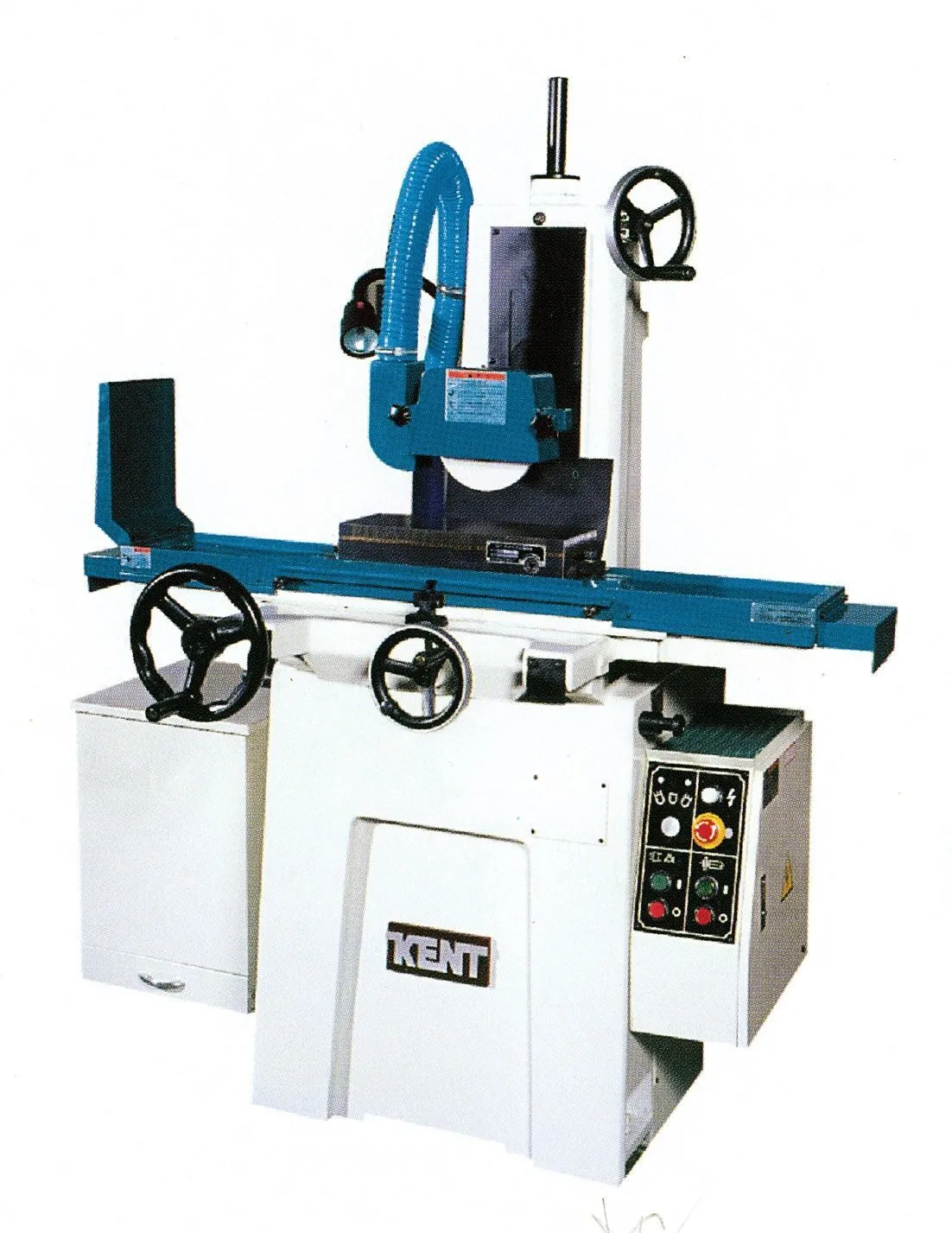

NEW KENT KGS-618S

Features & Capability
Longitudinal on Turcite-B coated and scrapped guideways
Downfeed on hardened and ground slideway
Crossfeed on Turcite-B coated and scrapped slideway
Spindle motor frequency inverter *Optional
Overhead manual wheel dresser *Optional
Variable spindle speed *Optional
Surface grinding *Manual
Plunge grinding *Manual
Single slot grinding (between shoulders) *Manual
Profile wheel dressing *Manual (Optional)

Main Specifications

Capacity
Overall table working area: 6"x18"
Longitudinal table travel: 18.7"
Crossfeed table travel: 7.3"
Distance spindle center to table: 15"

Grinding Wheel
Wheel dimension (Dia. x W x Bore): 7"x.08"x1.27"
Spindle speed: 3360 RPM

Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.005"
Vertical on MPG / Handwheel 1 rev: 1"

Motor
Spindle motor: 2 HP

Dimension & Weight
Machine height: 79"
Floor space: 71"x47"
Net weight: 1540 lbs.
Gross weight: 1870 lbs.

Standard Equipment
Three Axis Manual
Fine Pole Electromagnetic Chuck
Coolant System with Magnetic Seperator
Two Axis Linear Sale & DRO (Kent Brand)
Wheel Balancing Base
Grinding Wheel
Table Dresser
Wheel Balancing Arbor
Wheel Flange
Tools & Tool Box
