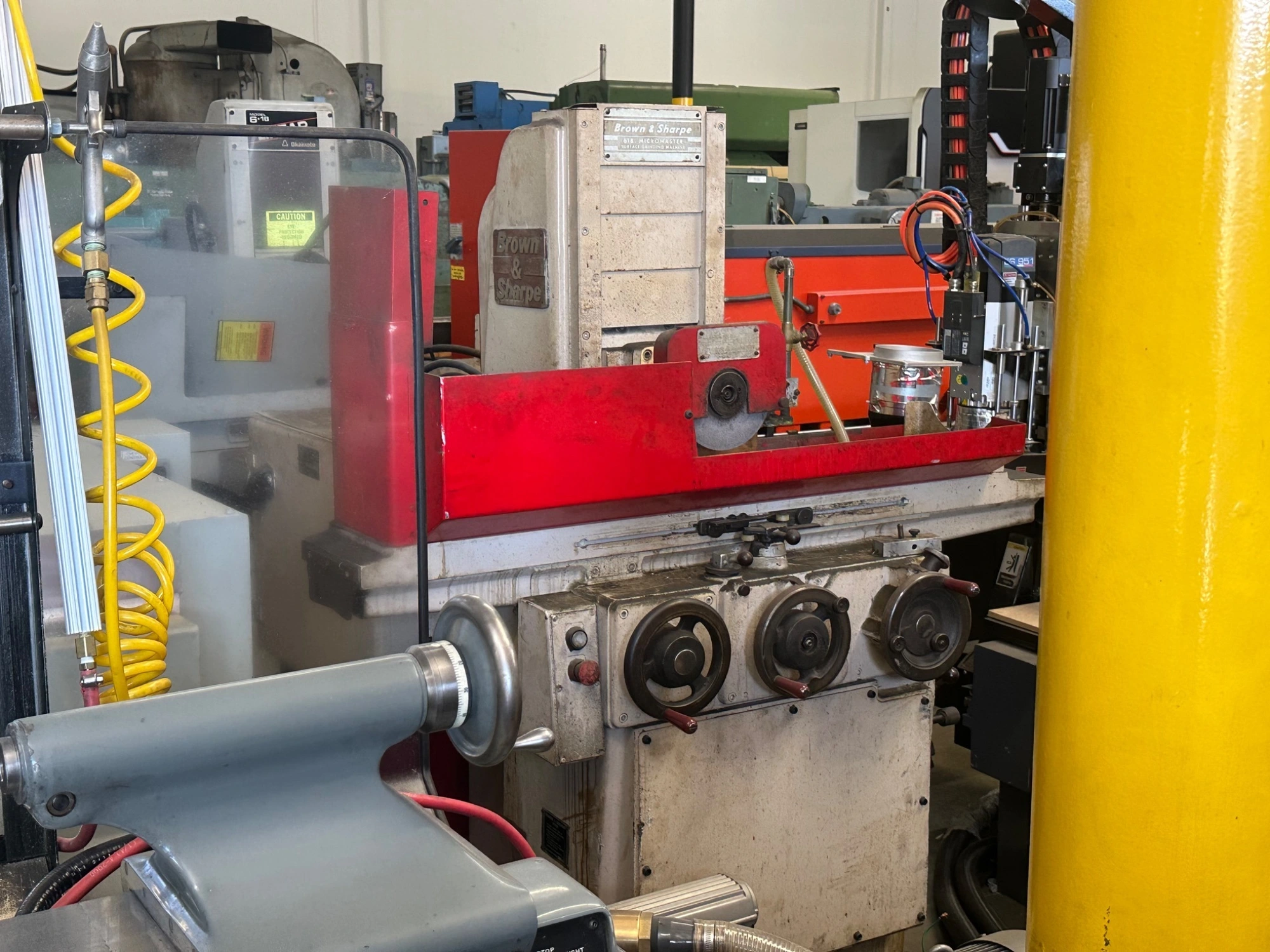

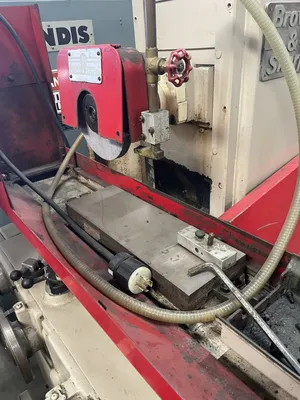

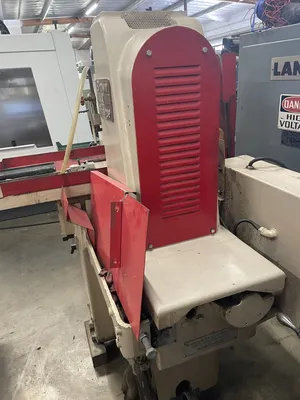

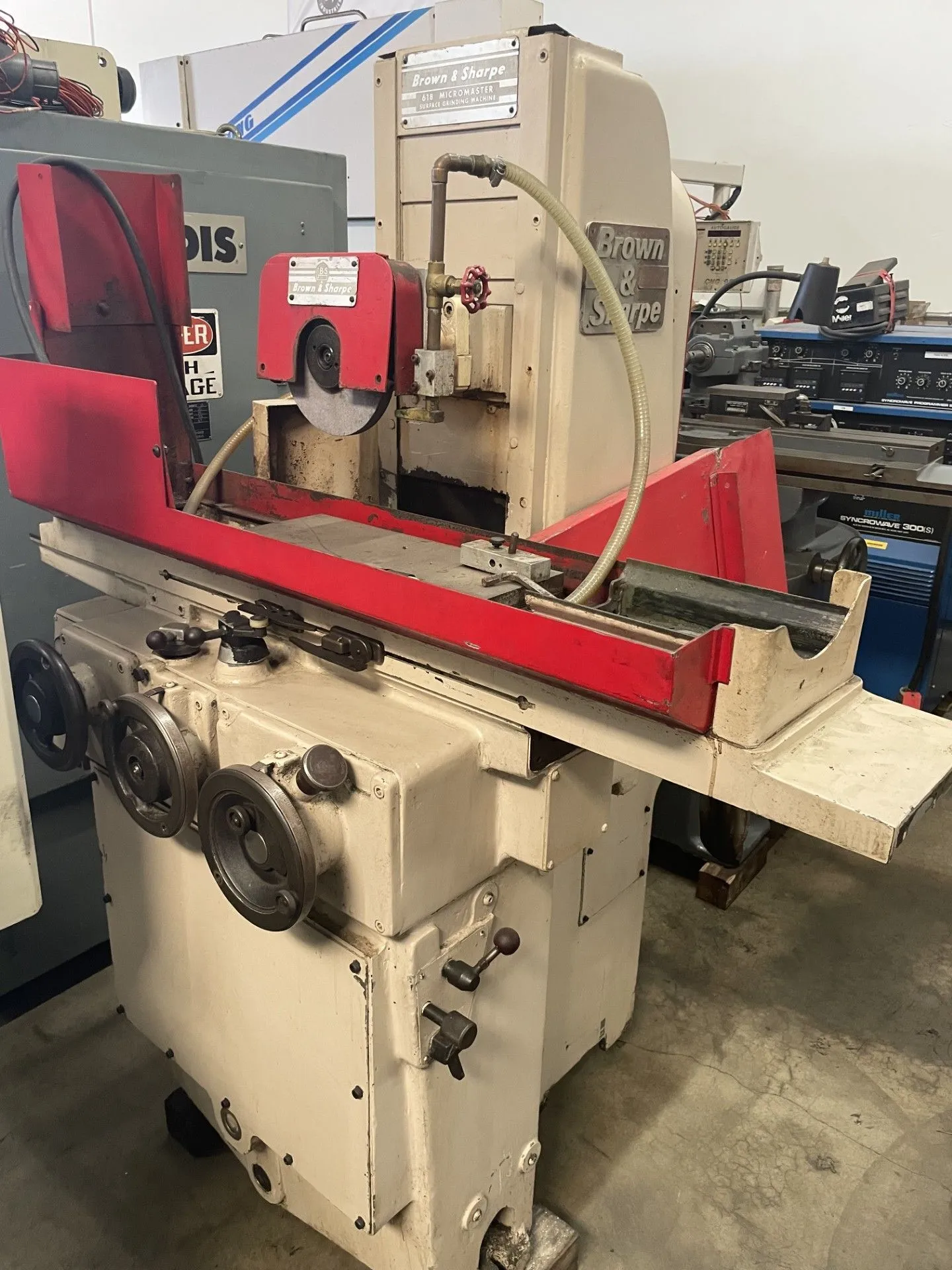

Used BROWN & SHARPE 618 MICROMASTER Surface Grinder available. Features horizontal operation, 2.0 power, 6x18 table, 1.0 wheel width, 7.0 wheel diameter. Ideal for precision tasks in industrial settings.
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 7" | 177.8 mm |
Brown & Sharpe 618 Micromaster Surface Grinder # 7517 #2
SPECIFICATIONS:
Capacity: 6″ x 18″
Height of Work Ground with 8″ Wheel: 15″
Grinding Wheel Size: 8″ x 1/2″ x 1 1/4″
Max. Longitudinal Travel: 22″
Hydraulic Powered Table Speed: 5 – 100 FPM
Cross Feed Travel: 7″
Automatic Cross Feed Increment Table Pass: 0.01″ – .025″
Cross Feed Rapid Traverse Rate: 12 FPM
Vertical Travel of Spindle: 15 3/4″
Vertical Movement of Table per Handwheel Rev.: 0.05″
Motor: 1.5 HP / 208v / 3ph
Weight: approx. 3,500 lbs.
