USED WARNER & SWASEY 4A

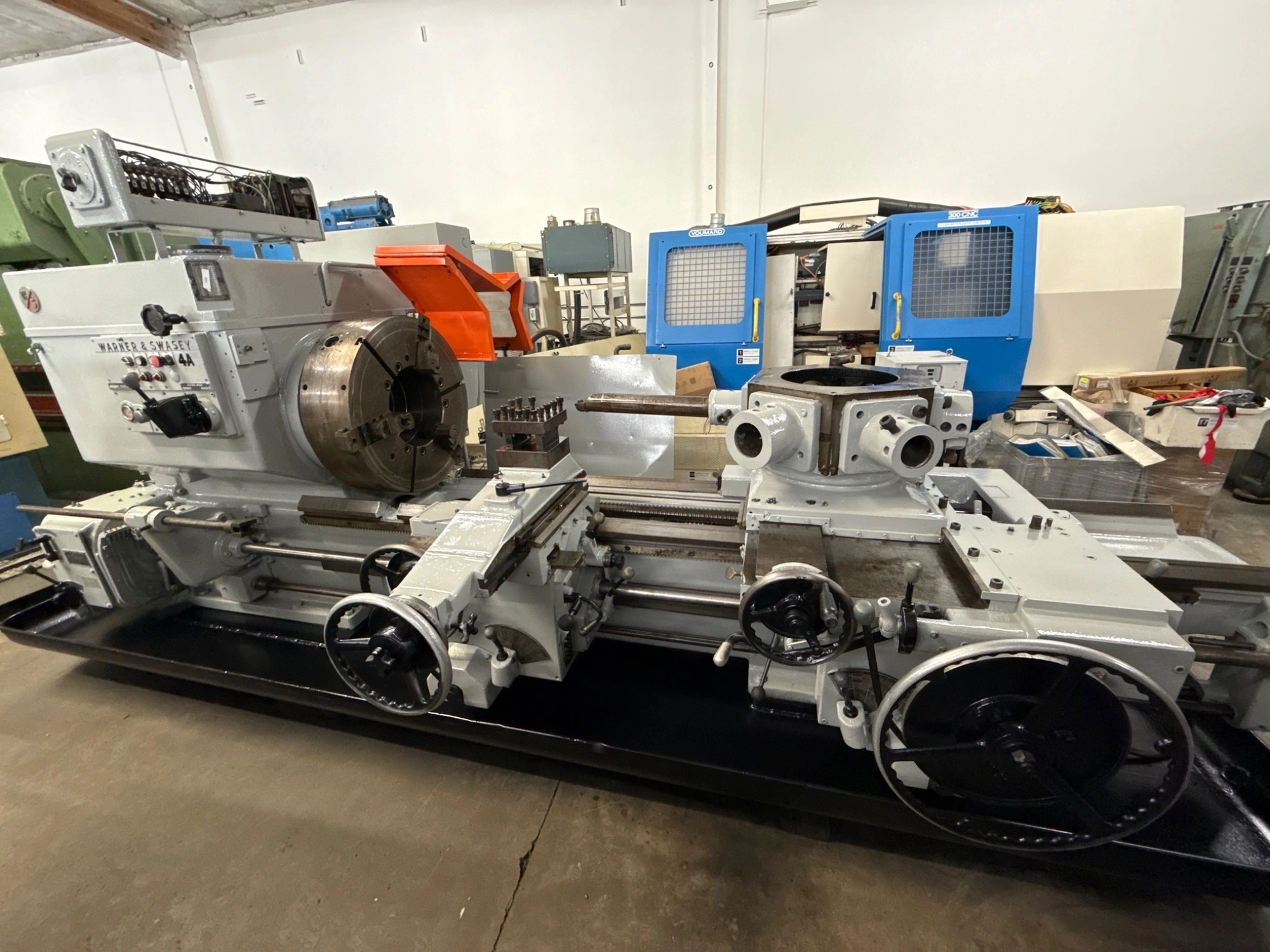

Warner & Swasey 4A Square Head Saddle Type Turret Lathe w/ 9-1/2" Hole #7355 #2

SPECIFICATIONS:

Manufacturer: Warner & Swasey

Model: 4A M-3580 - Lot 669 Turret Lathe 9 1/2" Spindle Hole

Swing Over Bed: 29-1/2"

Swing Over Cross Slide: 22 7/16"

Distance Spindle To Turret Face: 76 1/4"

Spindle Hole: 9 1/2"

Spindle Speeds: (32) 10 - 263 RPM

Spindle Drive: 50 / 25 HP

Cross Feeds: (16) .005 - .167 IPR

Turret Feeds: (16) .002 - .077 IPR

Chuck: 28" 3 Jaw

Power Clutch Wrench: Yes

Rapid Traverse: Yes

Chip Pan and Coolant: Yes

Approximate Weight: 25,000 lbs.

Dimensions: 212” x 78” x 78” H
