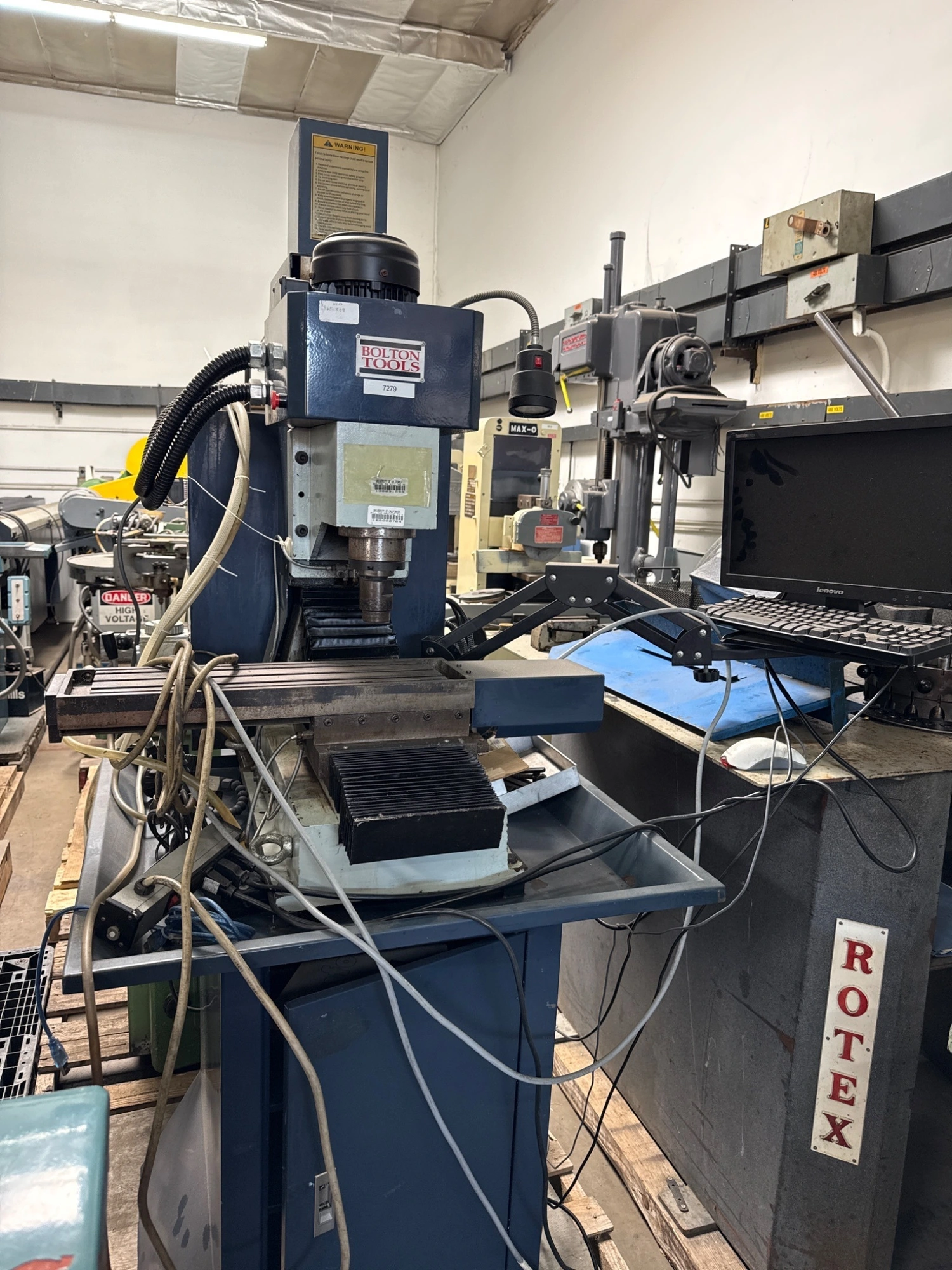

USED 2013 BOLTON TOOLS X4

2013 Bolton Tools X4 CNC Vertical Mill #7279 #1

SPECIFICATIONS:
Max. Drilling capacity: 1"
Max. Face milling capacity: 2-1/2"
Max. End milling capacity: 4/5
Head tilt: ±90°
Spindle travel: 3-7/64"

Max. Distance between spindle to table: 17-1/2"
Distance between spindle to column: 8"
Spindle taper: R8;
Spindle speed : 115, 220, 320, 600, 1120, 1700 RPM
T-Slots: 3 @ 1 1/32" 5/8" wide;
Work travel of table: 5-1/2" x 11-3/8"

Table size: 20-1/2" 6-1/4"
Motor: 1/2 HP, 110 V, single phase
Shipping weight: 350 LBS

EQUIPPED WITH:

CNC Control
